Electrical Diagrams

W�]l:

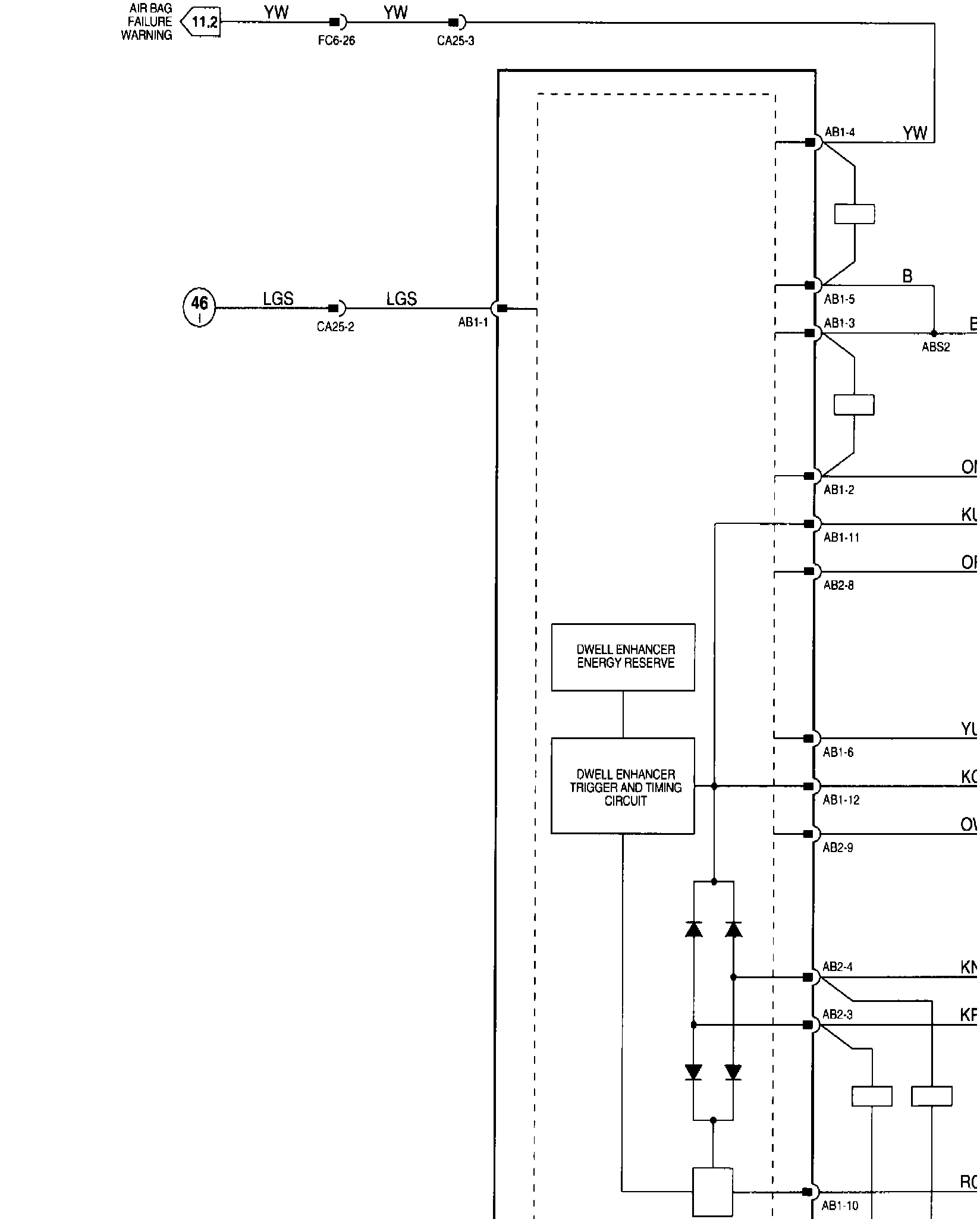

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

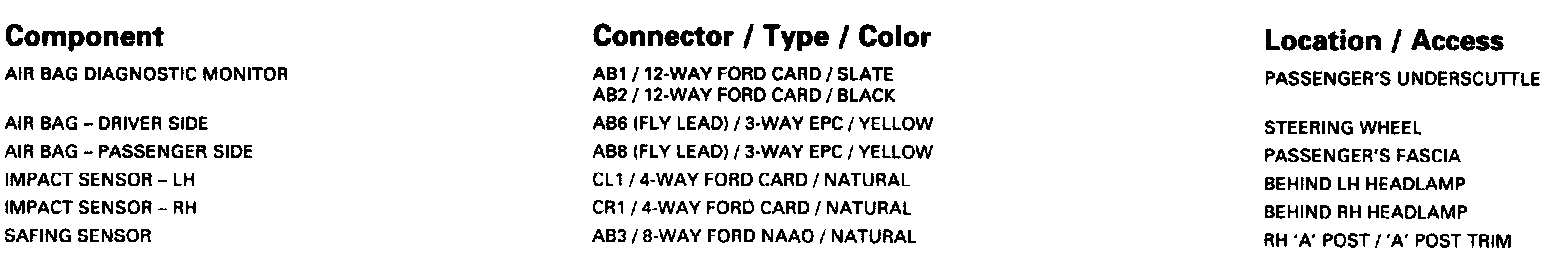

Air Bag System: Component:

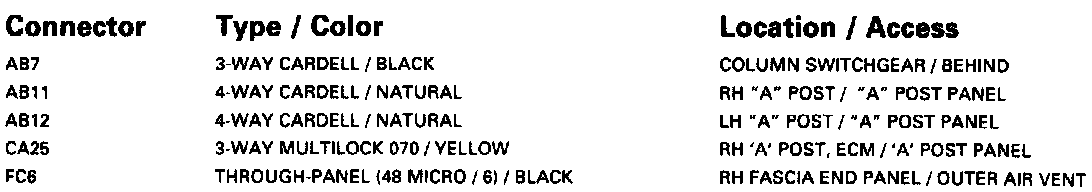

Air Bag System: Harness-To-Harness Connector:

Air Bag System: Grounds:
