P0716

INPUT SPEED SENSOR
RANGE/PERFORMANCE/MALFUNCTION - P0715 / P0716

Function:
Received speed monitoring.

Data:
Sensor resistance = between 1k ohms and 2k ohms.

Possible Causes:
Faulty sensor.
Faulty harness wiring / connectors.

NOTE: P0716 indicates an intermittent fault.

Effects:
MIL illuminated.
Harsh gearshifts, no torque converter clutch control.
No fourth drive gear (Fault Code P0716 only).

Remedy:
Renew sensor.
Repair or renew harness / connectors.





Connections

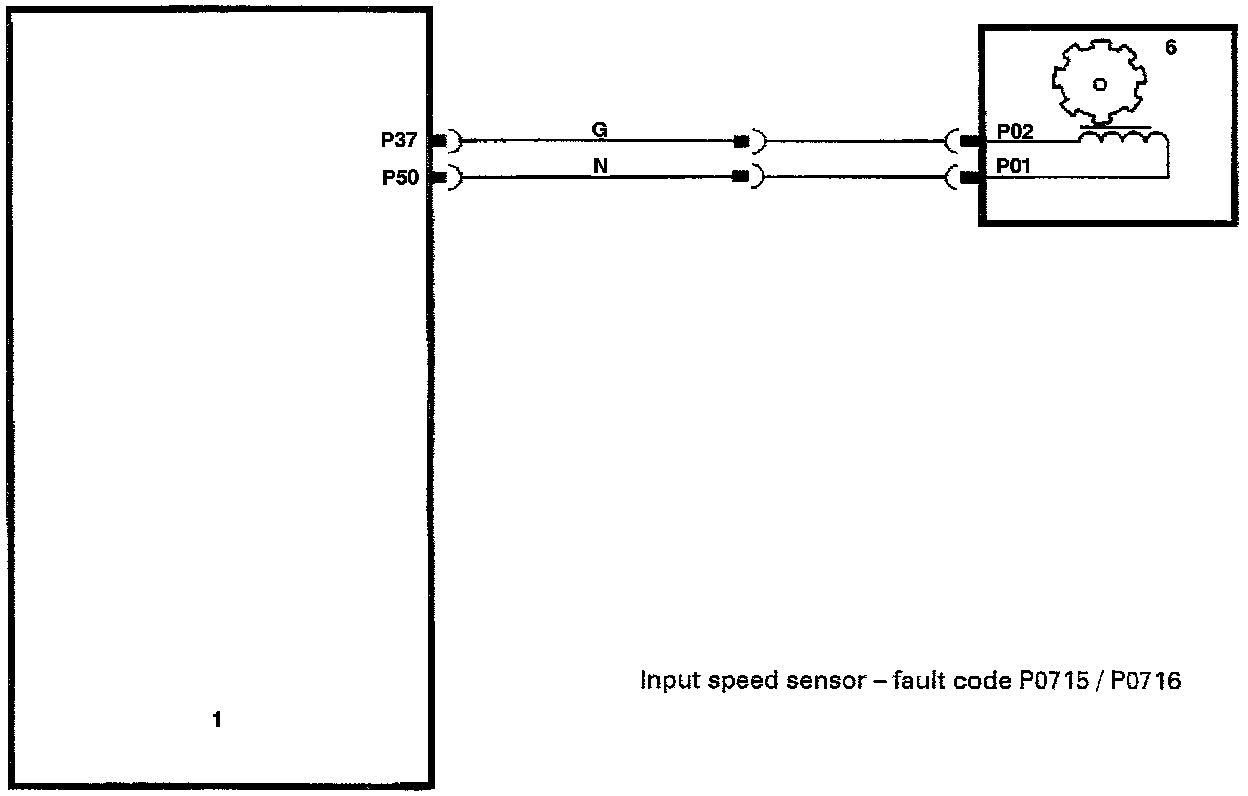

Troubleshooting Schematic

Key to Schematic Diagram
1. Transmission Control Module
2. Transmission Unit
3. Brake Switch
4. Pressure Switch - Manifold
5. Transmission Fluid Temperature Sensor
6. Input Speed Sensor
7. Output Speed Sensor
8. Engine Control Module
9. Left-hand Heelboard Fuse-box
10. Torque Control Clutch Solenoid
11. Force Motor
12. Shift Solenoid A
13. Shift Solenoid B
14. ABS/Traction Control Control Module
15. Right-hand Heelboard Fuse-box
16. Kickdown Switch
