P0720
OUTPUT SPEED SENSOR - P0720/P0721Function:
Delivered speed monitoring.
Data:
Sensor resistance between 1K ohms and 2k ohms.
Possible Causes:
Faulty sensor.
Faulty harness wiring / connectors.
NOTE: P0721 indicates an intermittent fault.
Effects:
MIL illuminated.
Second gear selected permanently i.e. "Limp Home" mode.
Remedy:
Renew sensor.
Repair or renew harness / connectors.

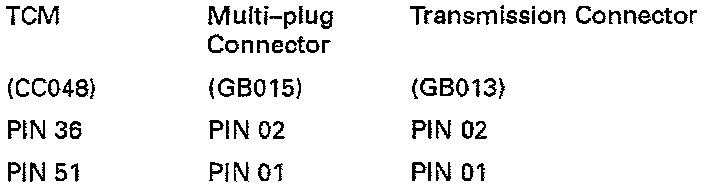

Connections
Troubleshooting Schematic
Key to Schematic Diagram
1. Transmission Control Module
2. Transmission Unit
3. Brake Switch
4. Pressure Switch - Manifold
5. Transmission Fluid Temperature Sensor
6. Input Speed Sensor
7. Output Speed Sensor
8. Engine Control Module
9. Left-hand Heelboard Fuse-box
10. Torque Control Clutch Solenoid
11. Force Motor
12. Shift Solenoid A
13. Shift Solenoid B
14. ABS/Traction Control Control Module
15. Right-hand Heelboard Fuse-box
16. Kickdown Switch
