P1782

TRACTION CONTROL ACTIVE INPUT - P1782

Function:
ABS signal monitor.

Possible Causes:
Faulty harness Wiring/connection,
Faulty signal from ABS/TC CM.

Effects:
No "shift inhibit" during traction control.

Remedy:
Repair or renew harness/connector.
Examine ABS/TC CM fault diagnosis.

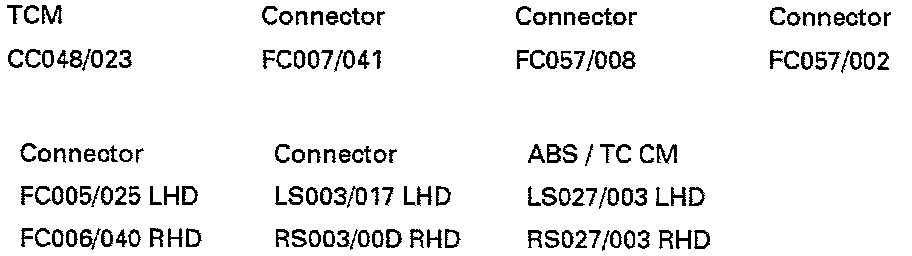

Connections

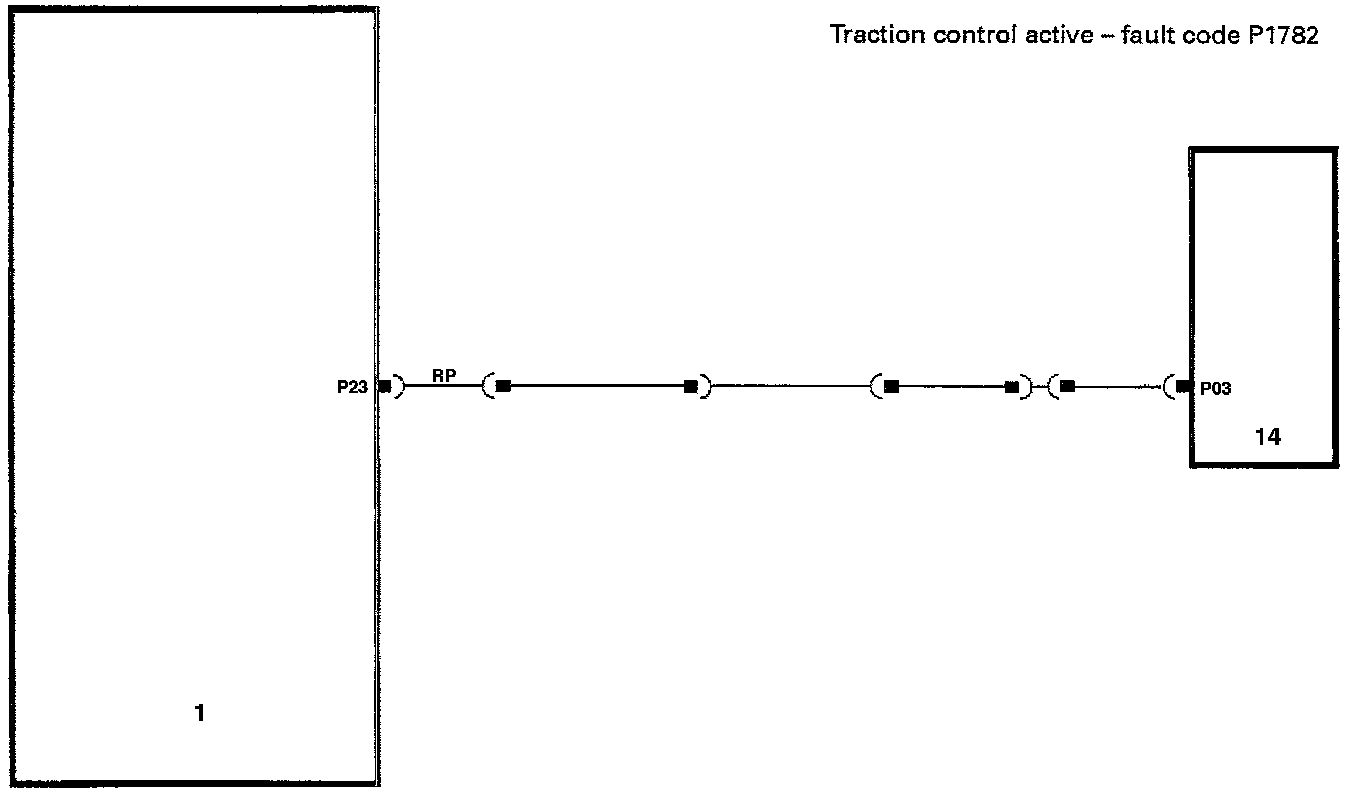

Troubleshooting Schematic

Key to Schematic Diagram
1. Transmission Control Module
2. Transmission Unit
3. Brake Switch
4. Pressure Switch - Manifold
5. Transmission Fluid Temperature Sensor
6. Input Speed Sensor
7. Output Speed Sensor
8. Engine Control Module
9. Left-hand Heelboard Fuse-box
10. Torque Control Clutch Solenoid
11. Force Motor
12. Shift Solenoid A
13. Shift Solenoid B
14. ABS/Traction Control Control Module
15. Right-hand Heelboard Fuse-box
16. Kickdown Switch
