P1791

THROTTLE POSITION SIGNAL FAULT - P1791

Function:
Throttle position signal monitor.

Possible Causes:
Faulty harness wiring/connection.
Faulty ECM signal.

Effects:
MIL illuminated.
Fixed shift points, giving possible harsh shifts.

Remedy:
Repair or renew harness/connector.
Examine ECM fault diagnosis.

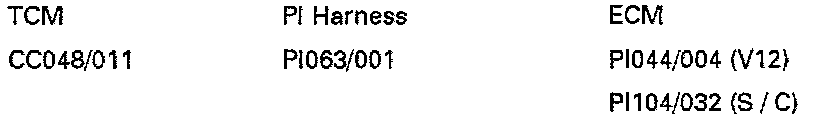

Connections





Troubleshooting Schematic

Key to Schematic Diagram
1. Transmission Control Module
2. Transmission Unit
3. Brake Switch
4. Pressure Switch - Manifold
5. Transmission Fluid Temperature Sensor
6. Input Speed Sensor
7. Output Speed Sensor
8. Engine Control Module
9. Left-hand Heelboard Fuse-box
10. Torque Control Clutch Solenoid
11. Force Motor
12. Shift Solenoid A
13. Shift Solenoid B
14. ABS/Traction Control Control Module
15. Right-hand Heelboard Fuse-box
16. Kickdown Switch
