P1796
KICK-DOWN SWITCH SYSTEM - P1796Function:
Switch operation monitor.
Possible Causes:
Faulty harness wiring/connection.
Faulty switch (or switch adjustment).
Effects:
No kickdown switch facility (kickdown is still achieved through the throttle potentiometer voltage).
Remedy:
Repair or renew harness/connector.
Re-adjust or renew switch.

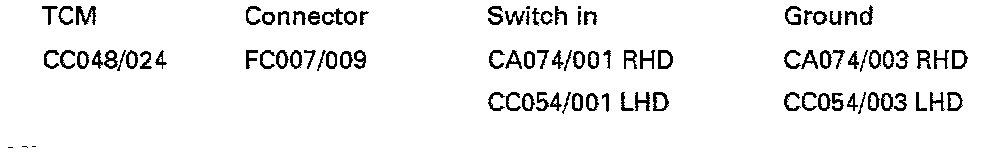

Connections
Troubleshooting Schematic
Key to Schematic Diagram
1. Transmission Control Module
2. Transmission Unit
3. Brake Switch
4. Pressure Switch - Manifold
5. Transmission Fluid Temperature Sensor
6. Input Speed Sensor
7. Output Speed Sensor
8. Engine Control Module
9. Left-hand Heelboard Fuse-box
10. Torque Control Clutch Solenoid
11. Force Motor
12. Shift Solenoid A
13. Shift Solenoid B
14. ABS/Traction Control Control Module
15. Right-hand Heelboard Fuse-box
16. Kickdown Switch
