Clock

>�#�C�#�L�#TS�#�^�#Headlamp Levelling: Clock:

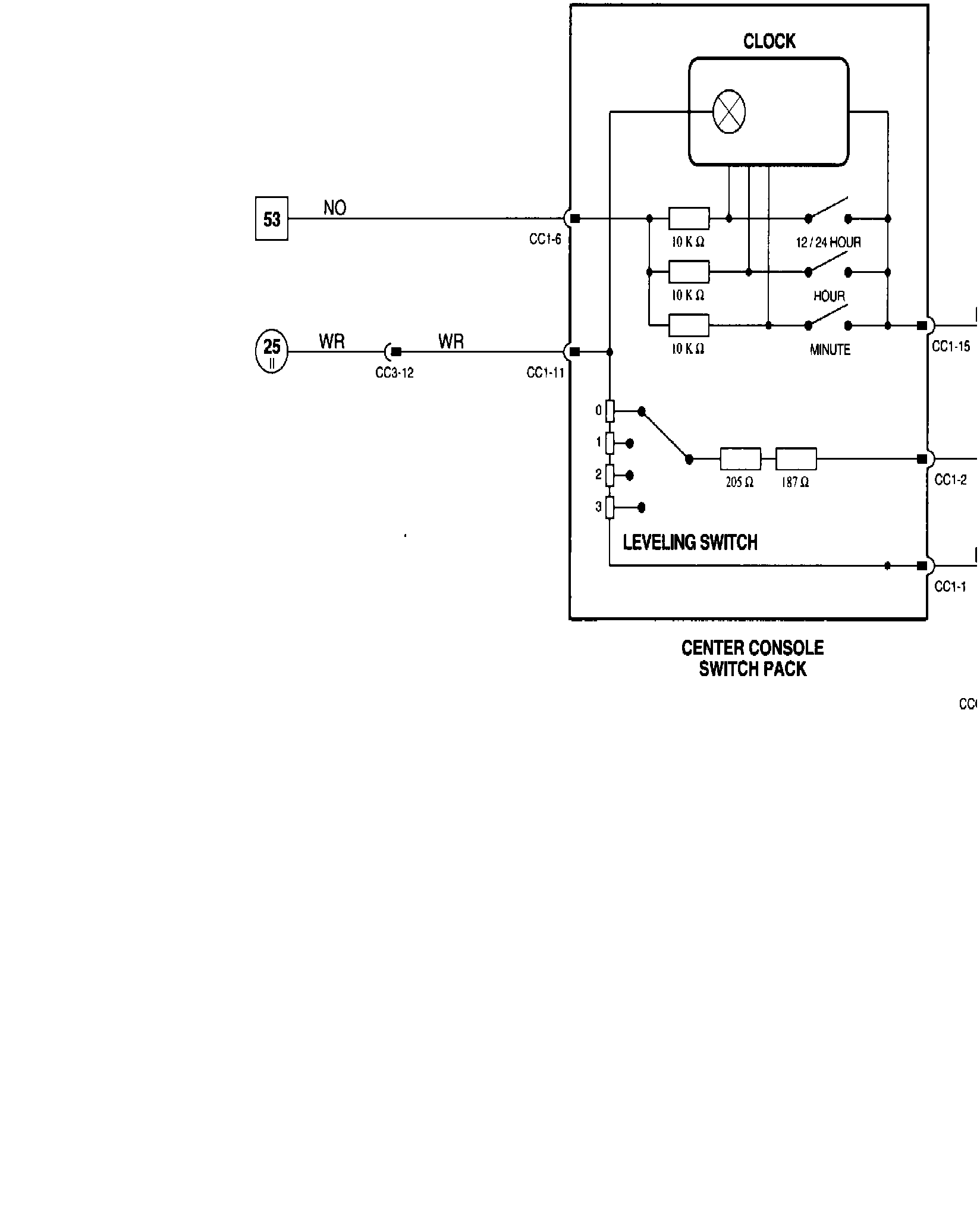

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

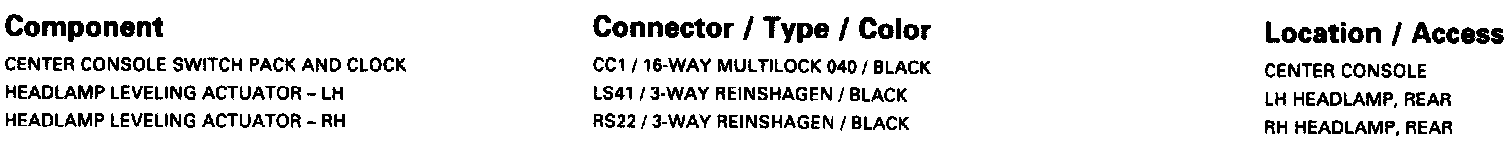

Headlamp Levelling: Clock: Components:

Component Information

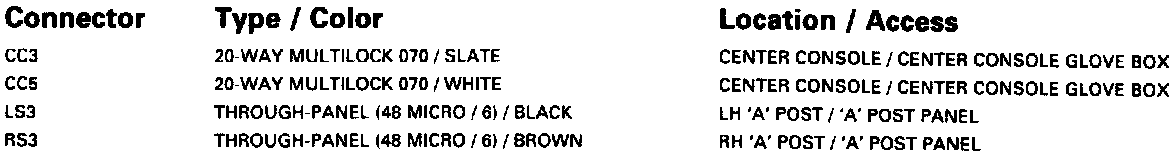

Headlamp Levelling: Clock: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

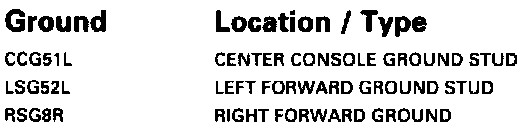

Headlamp Levelling: Clock: Grounds:

Ground Information
