Charge Lamp/Indicator: Testing and Inspection

Generator IND Voltage Indicator (Active Low)

1. Check for battery voltage (13 ± 2.5V) between pins 2 and 4 of pack 24-way connector.

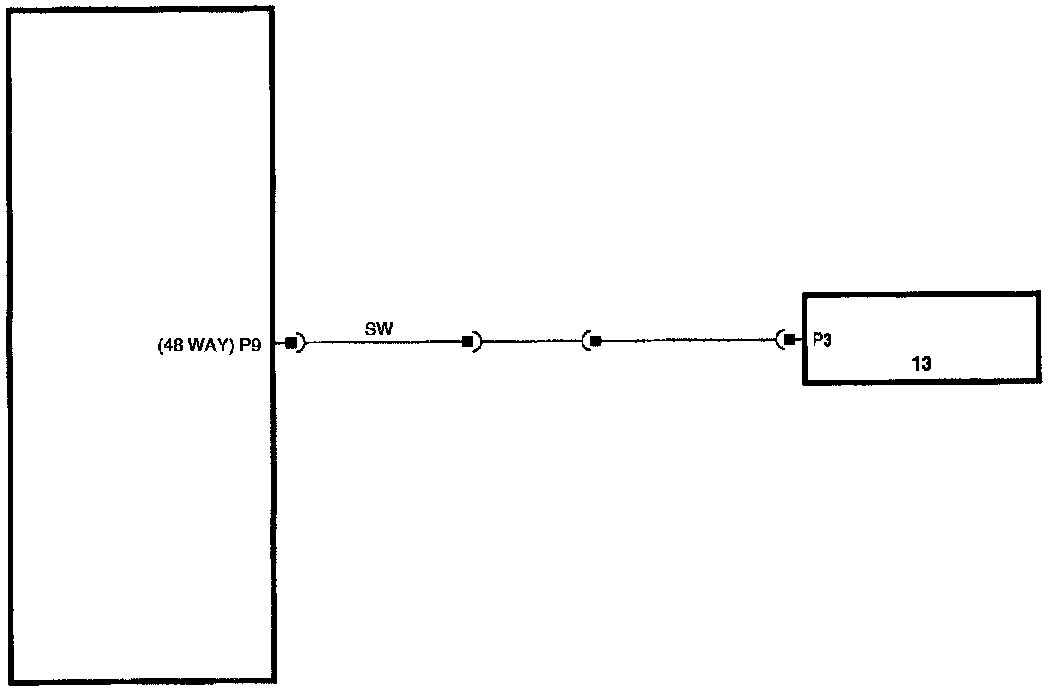

2. Check voltage at pin 9, 48-way connector. A value of approximately 12 V indicates alternator signal healthy, 0 volts indicates fault condition.
