D18: Check For Short to B+

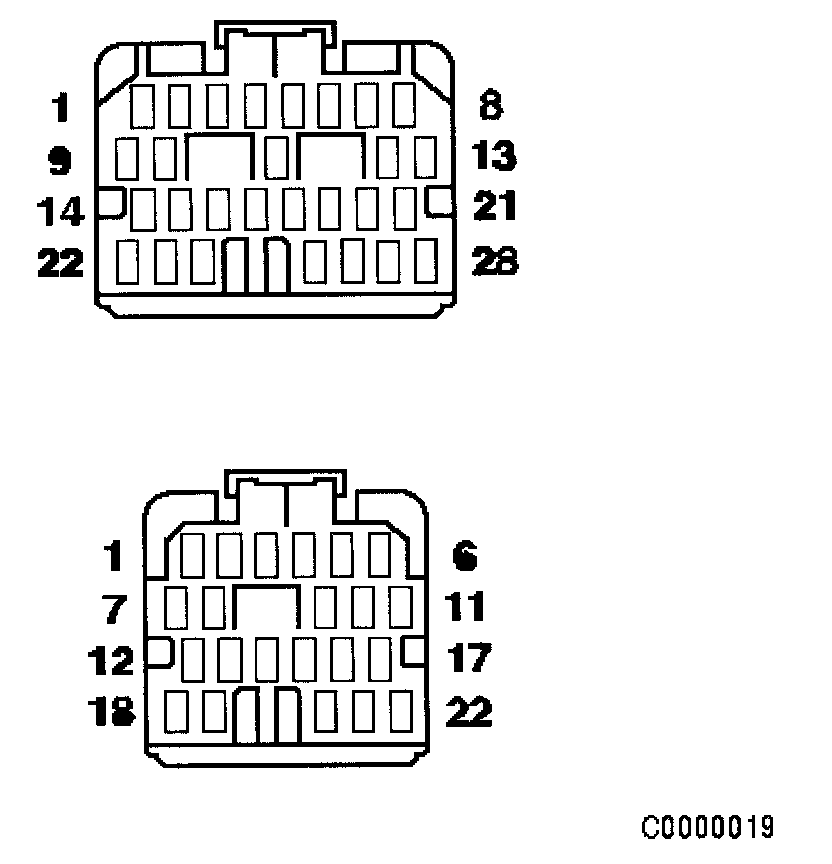

Measure the voltage between EM010/023 and EM012/022.

- Is the voltage 0 V?
Yes
GO to D19 D19: Check Harness Short to Ground
No
Inspect harness/connectors EM010, EM012 and EM022 for corrosion, damaged/pushed back pins.
Repair as required and reconnect plug(s).
GO to D21 D21: End
