Power Brake Actuation

Lubricants, Fluids, Sealants and Adhesives





Brake Ratio





Torques

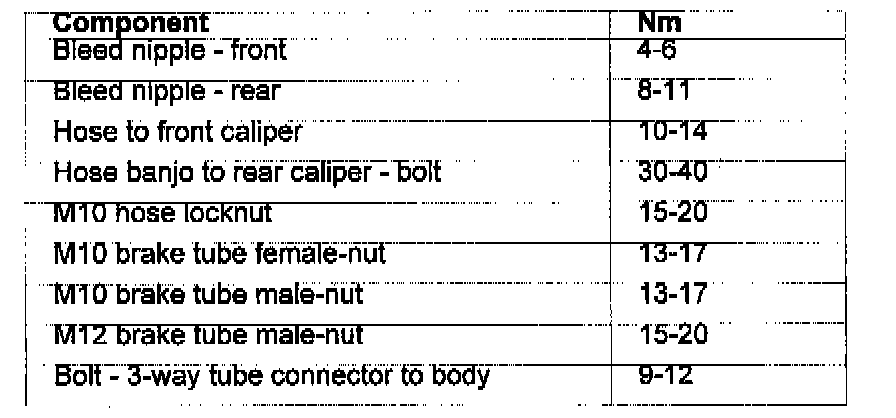

Brake Tube, Hoses and Bracket Torques

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used.
