Shift Interlock, A/T

�L`:

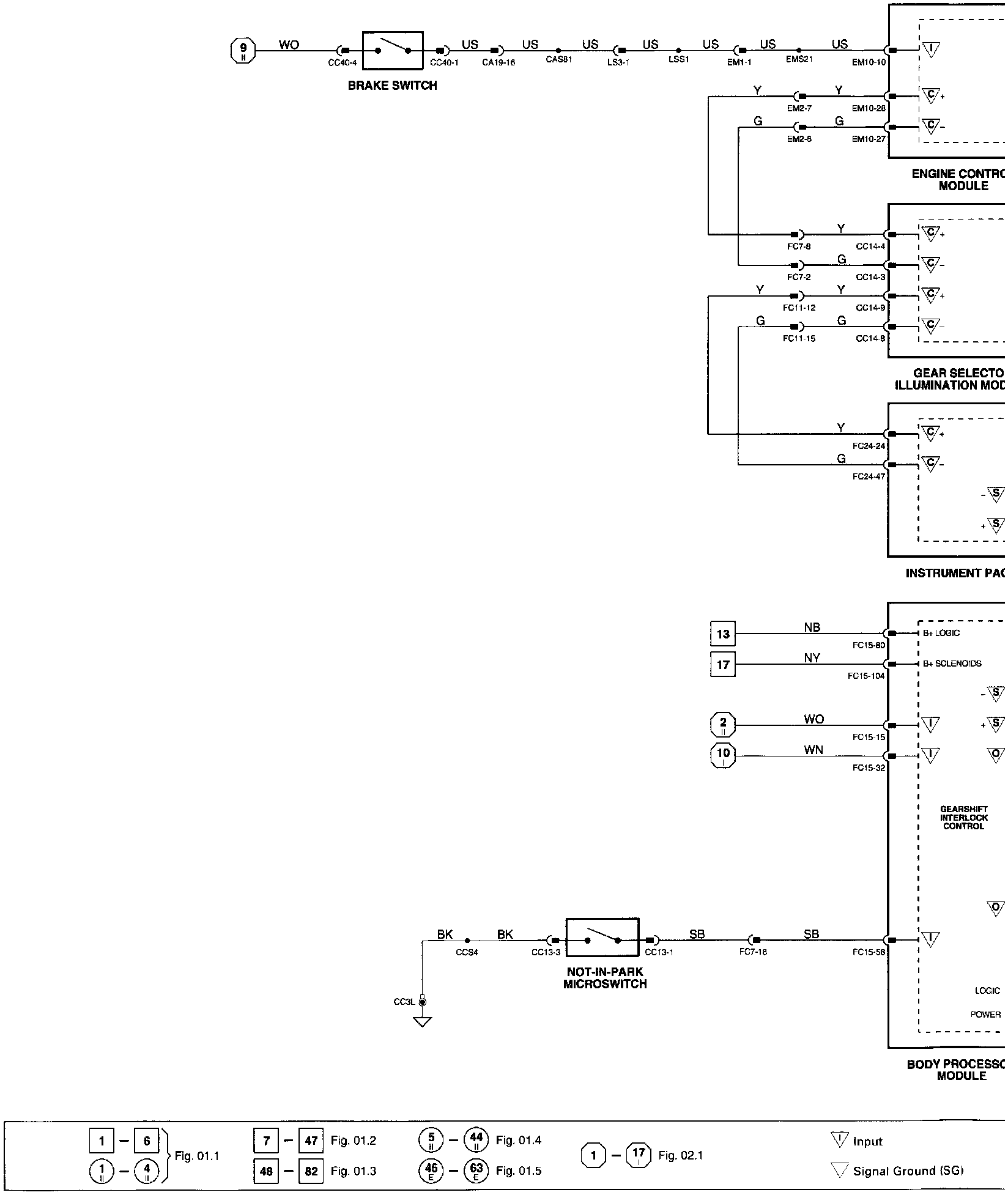

Wiring Diagram


Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle/Diagrams Electrical Diagrams







Components Informations

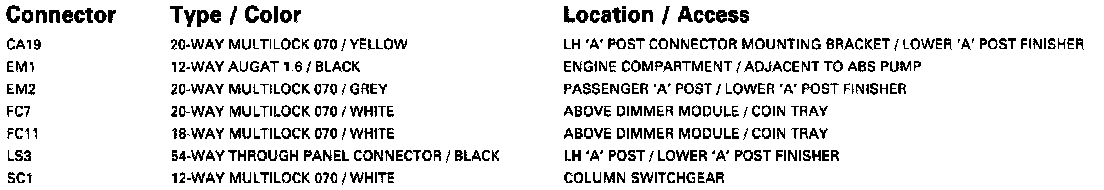

Harness to Harness Connectors Informations

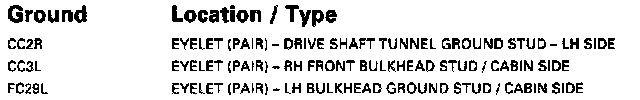

Grounds Informations

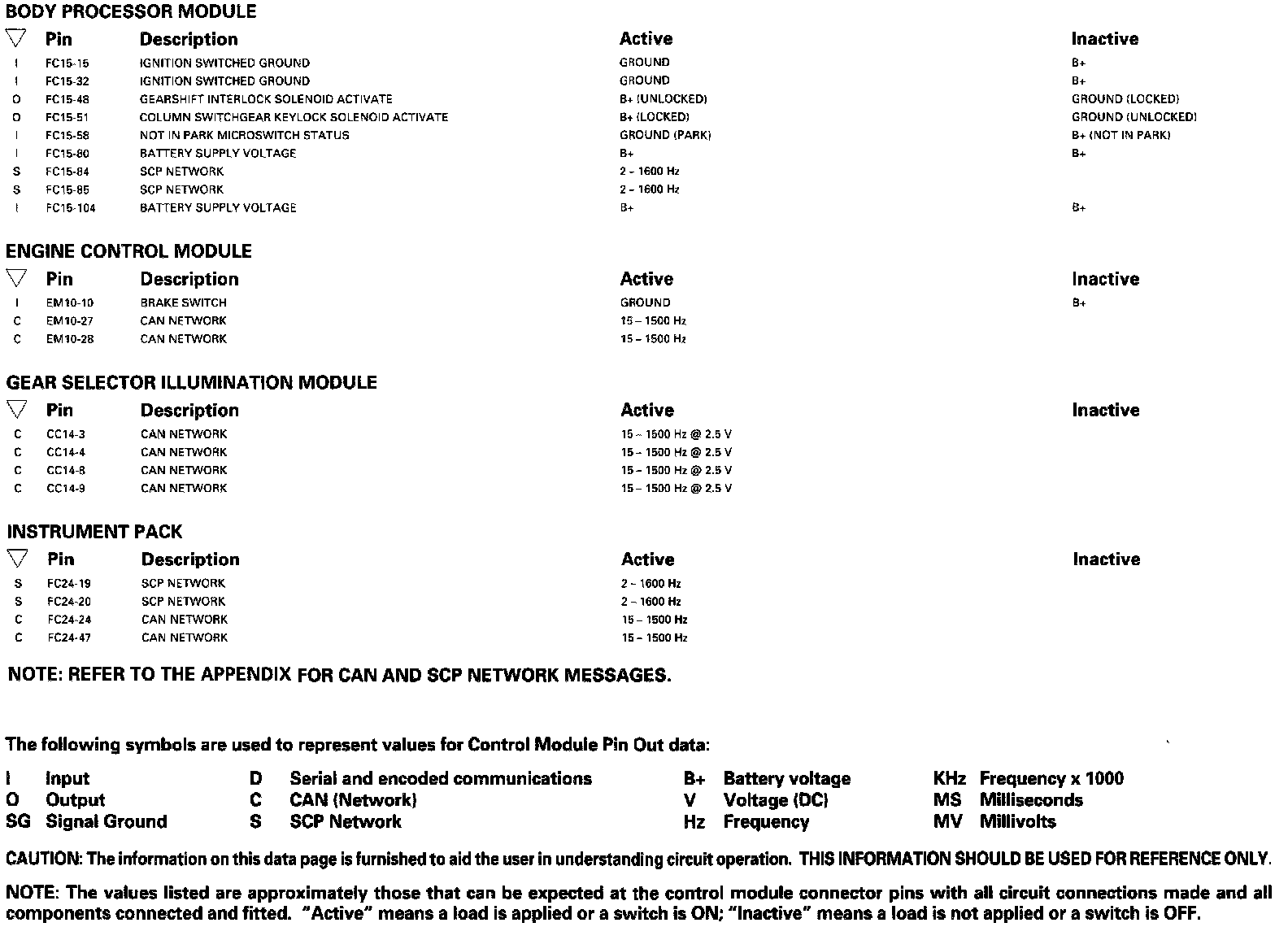

Control Module Pin Out Informations
