System Diagram

[b:

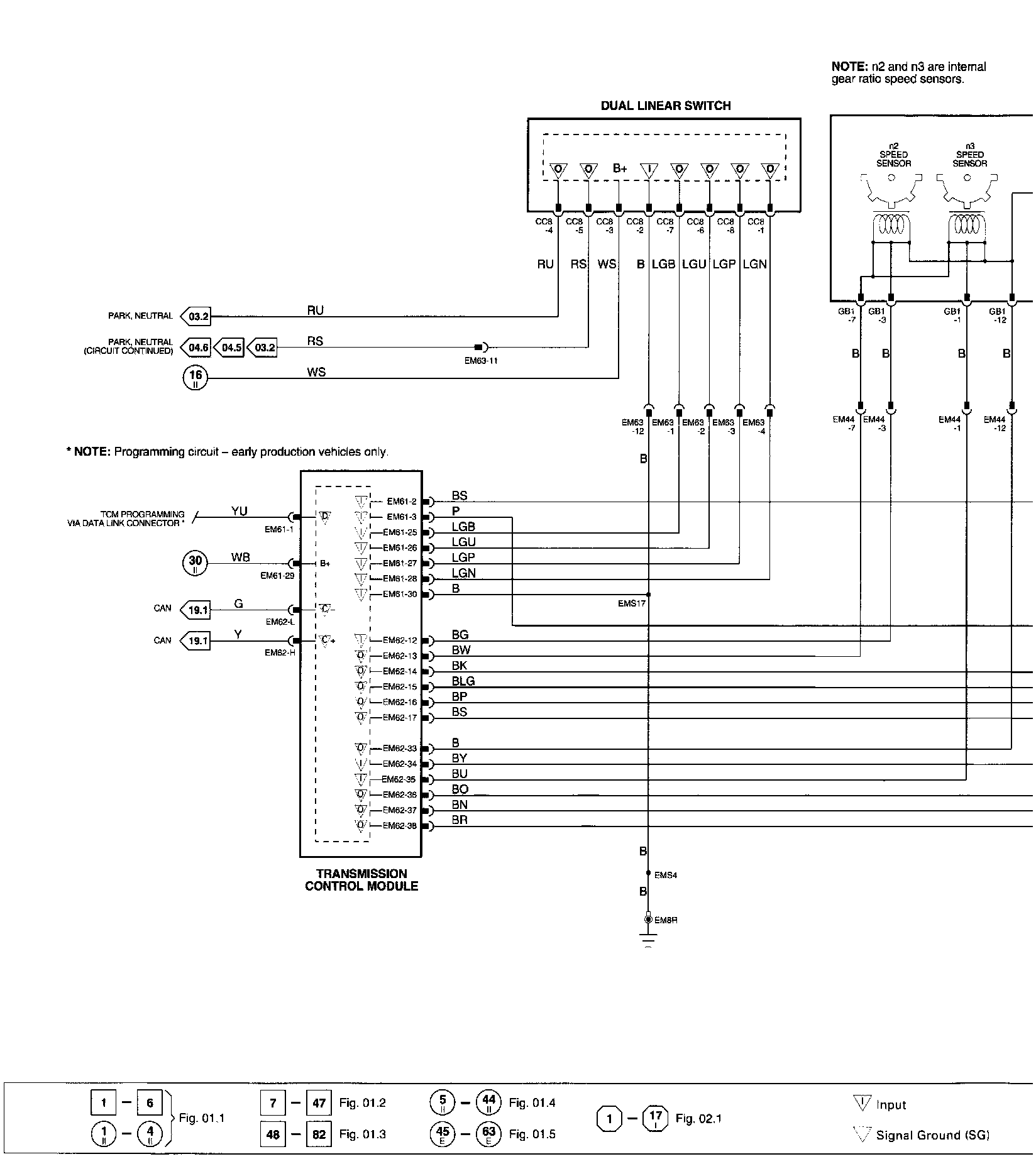

Wiring Diagram


Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle/Diagrams Electrical Diagrams

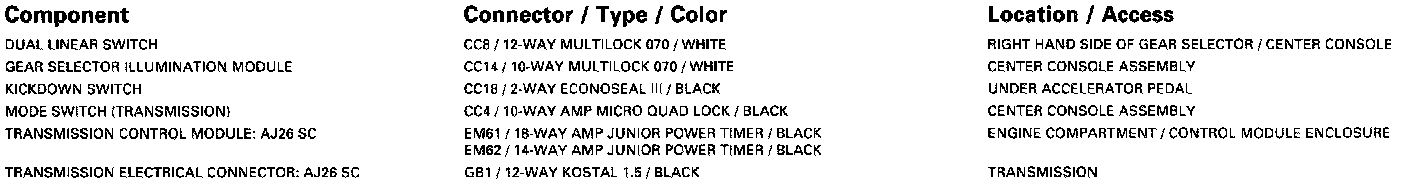

Components Informations

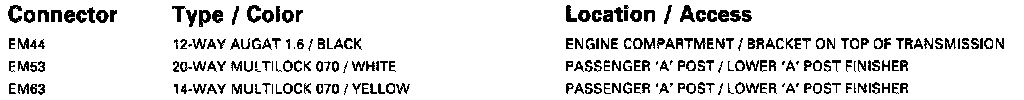

Harness to Harness Connectors Informations

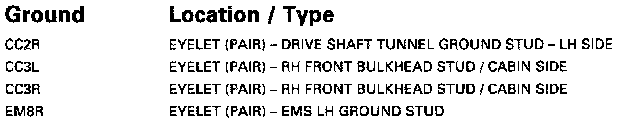

Grounds Informations

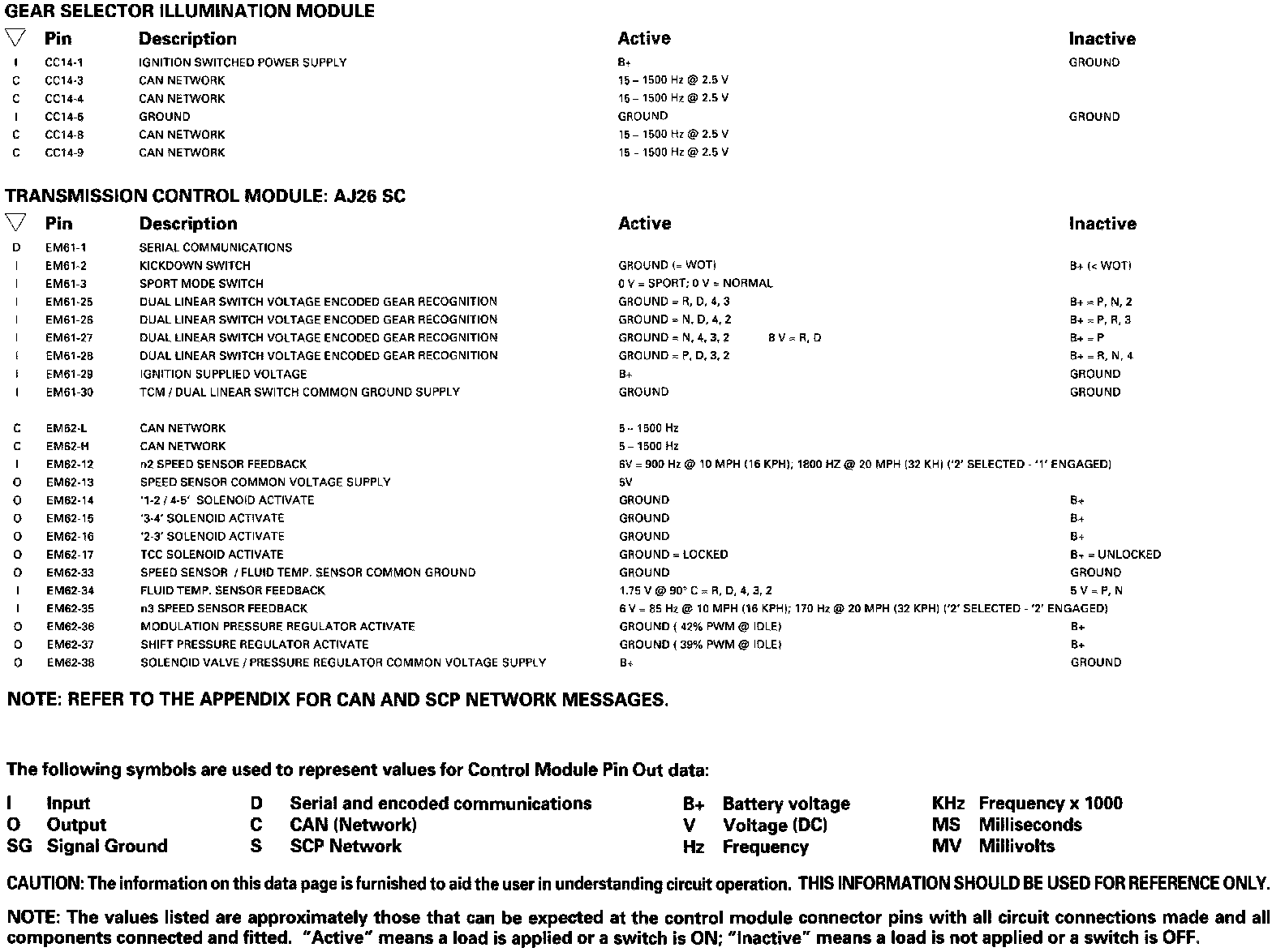

Control Module Pin Out Informations
