Home >> Jaguar >> 1998 >> XJR (X308) V8-4.0L SC (AJ26) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagram By Fig Number >> Fig 01.2

Fig 01.2




%R:

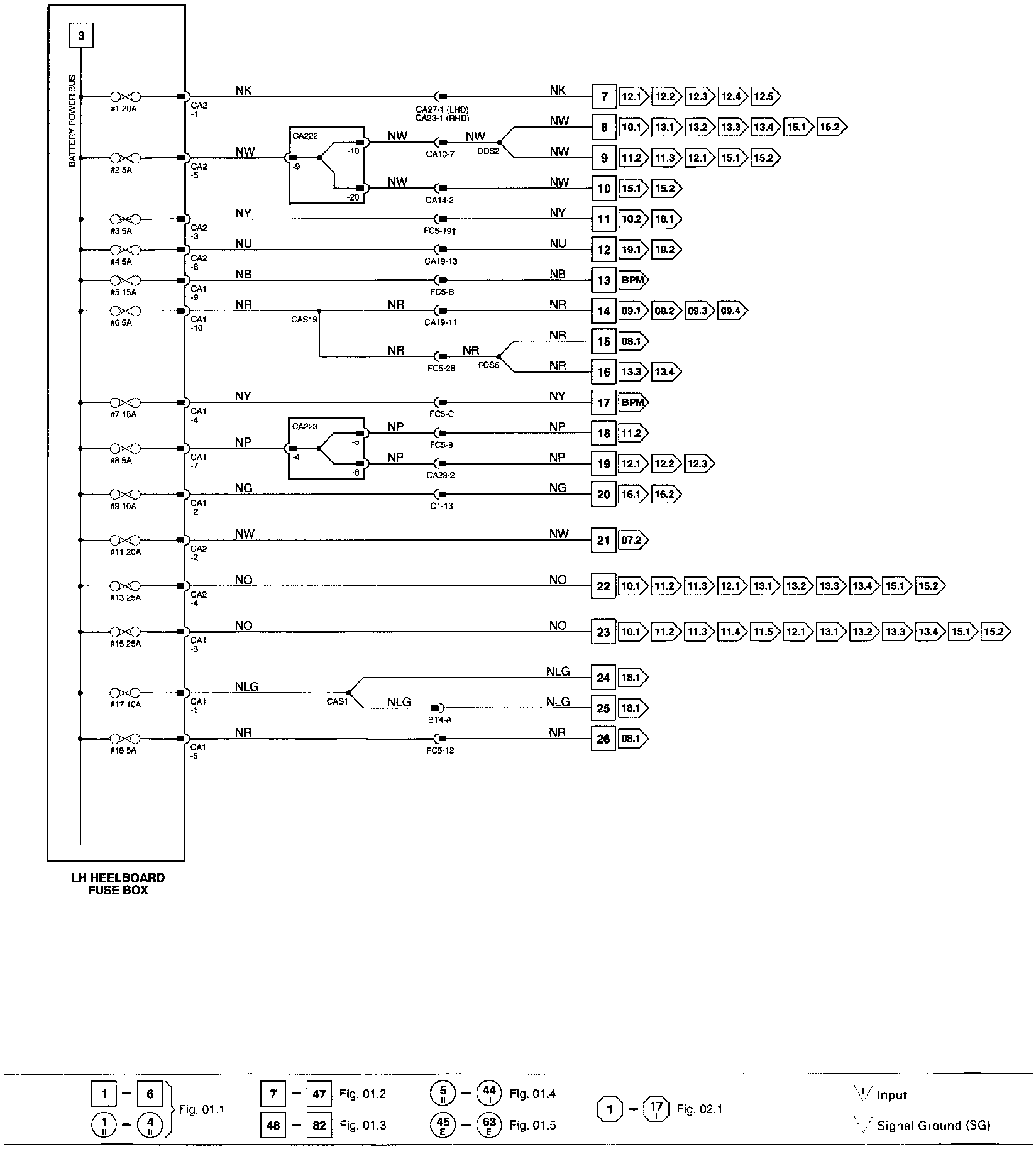

Wiring Diagram







Component Information

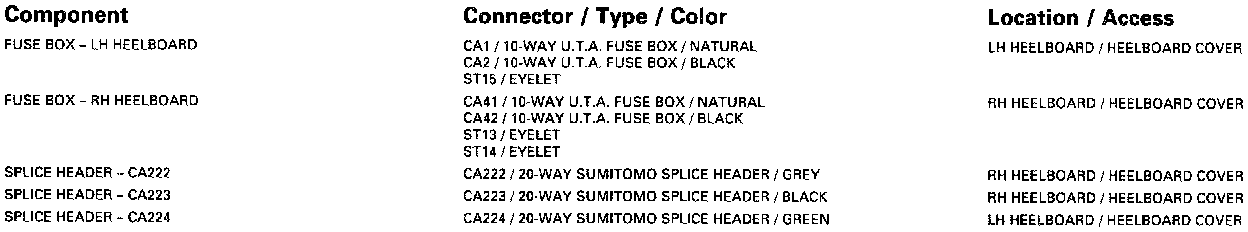

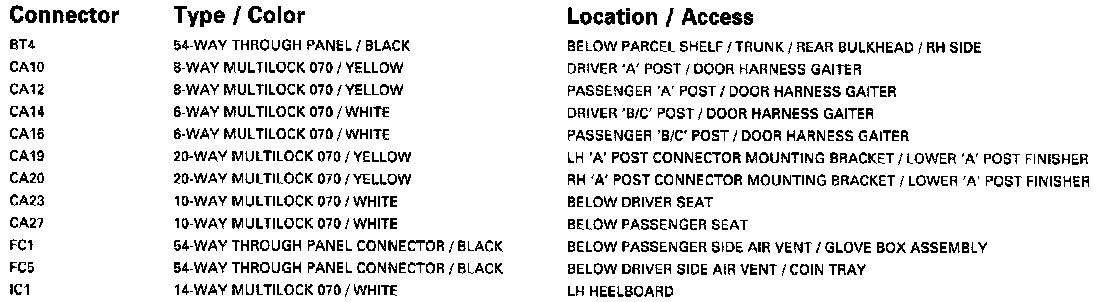

Harness to Harness Connector Information
