Fig 12.1




p�":

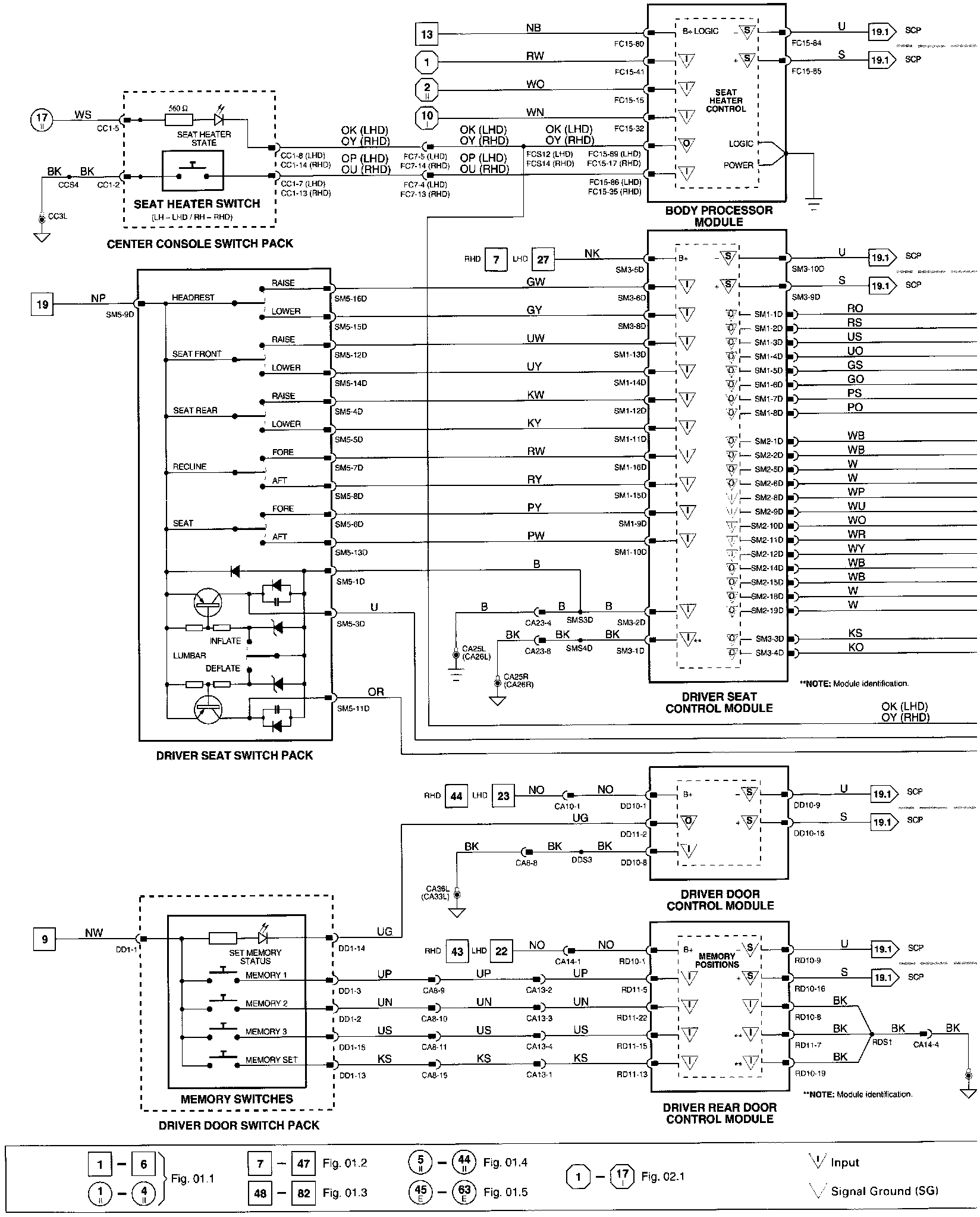

Wiring Diagram







Component Information







Relay Information







Harness to Harness Connector Information

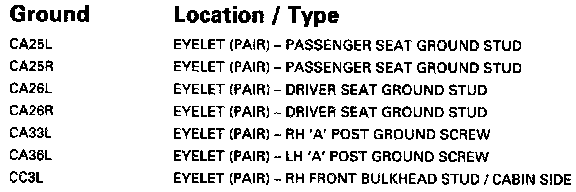

Ground Information

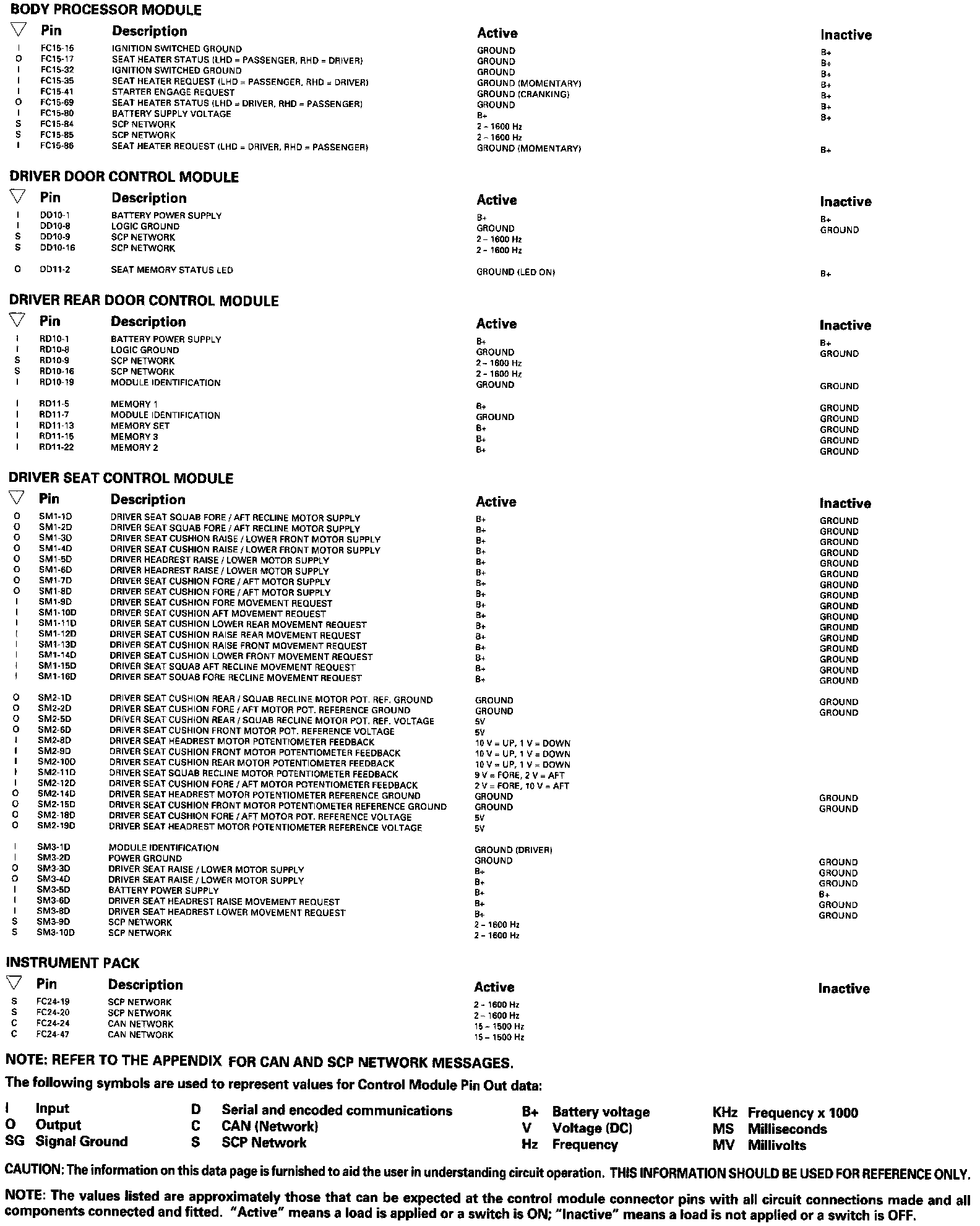

Control Module Pin Out Information
