Home >> Jaguar >> 1998 >> XJR (X308) V8-4.0L SC (AJ26) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagram By Fig Number >> Fig 12.2

Fig 12.2




M?�":

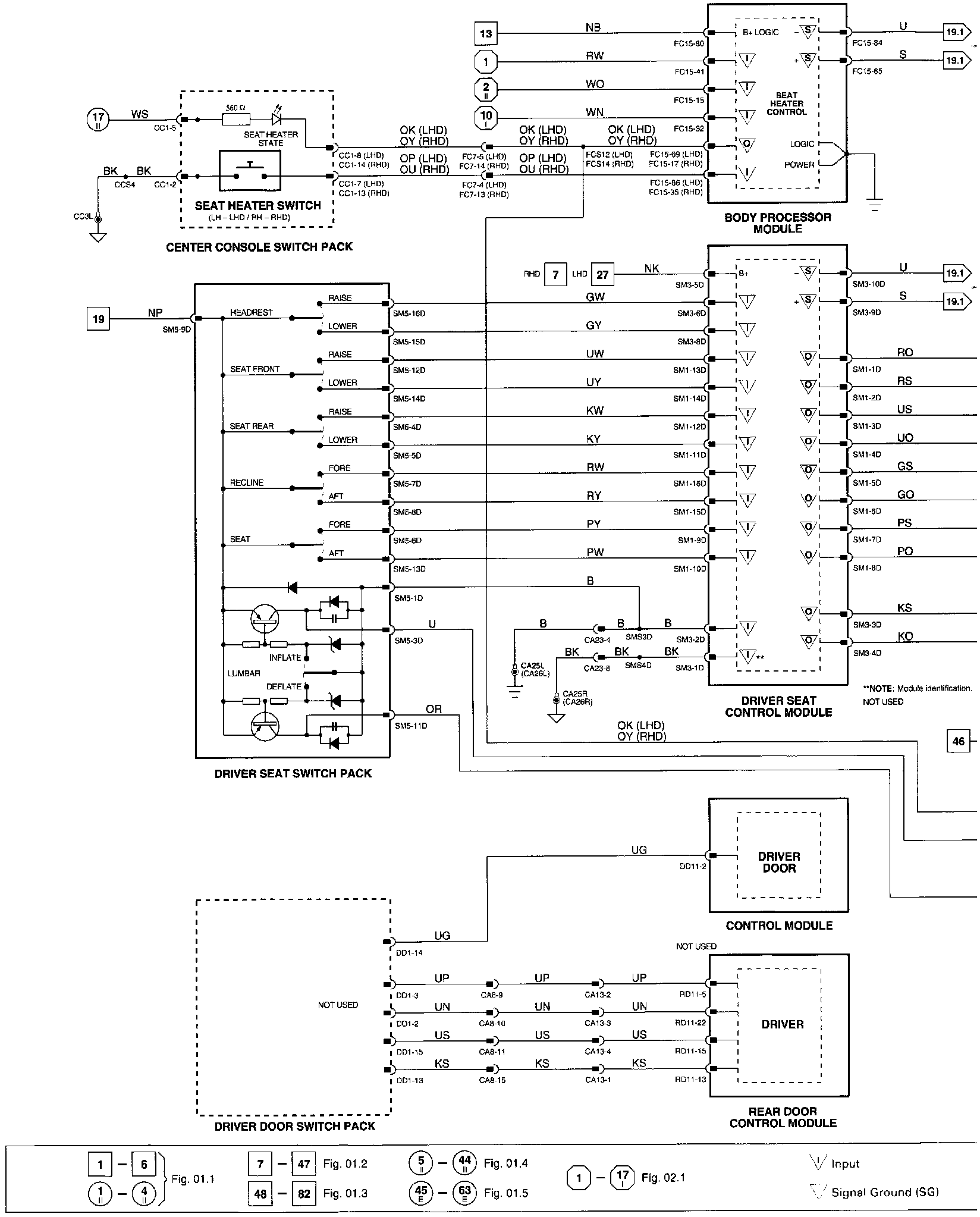

Wiring Diagram







Component Information







Relay Information







Harness to Harness Connector Information

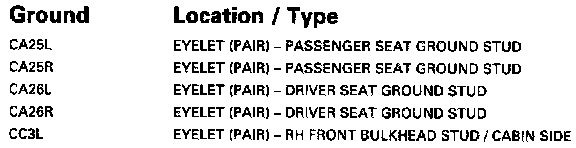

Ground Information

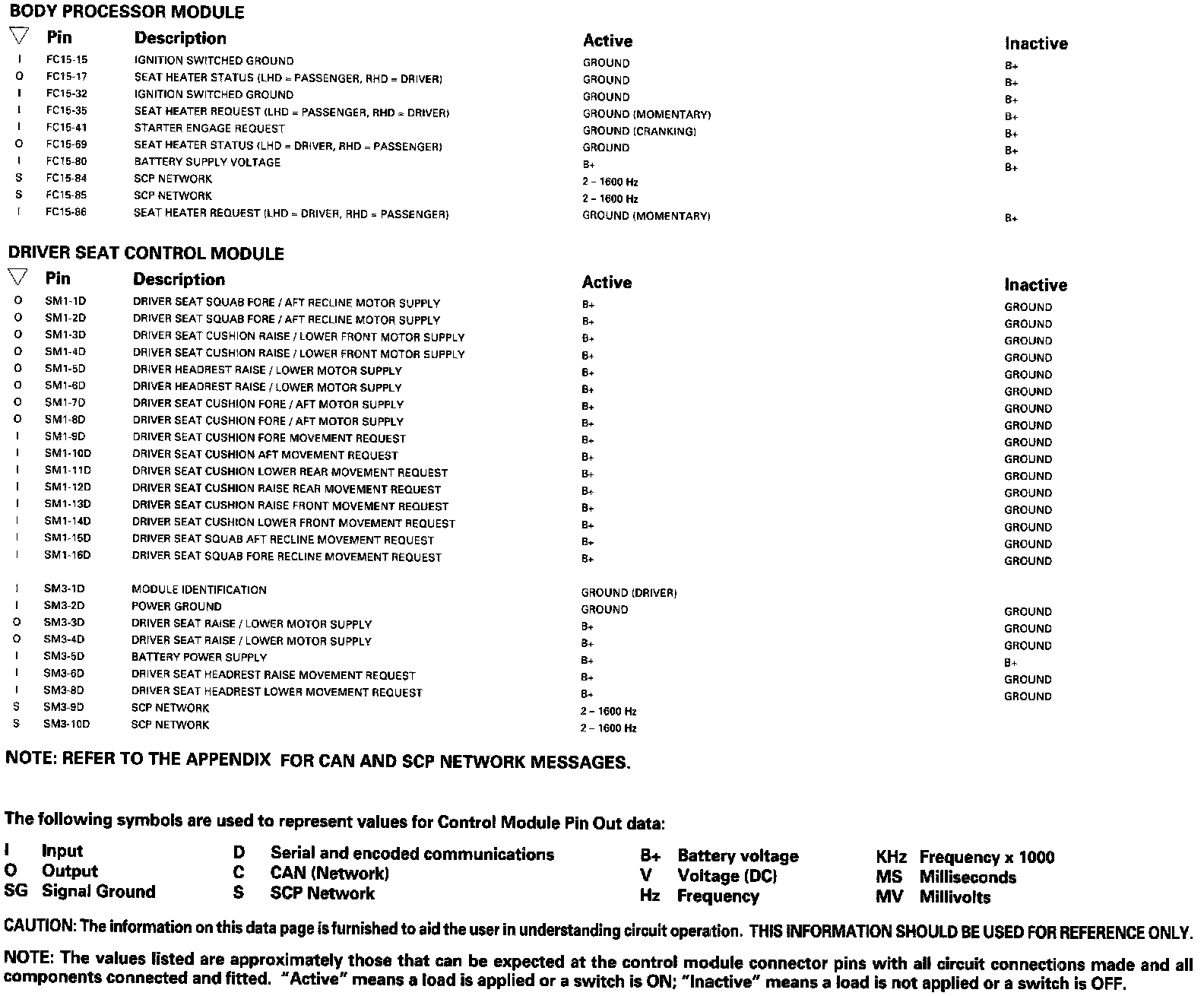

Control Module Pin Out Information
