Fig 12.6




�#:

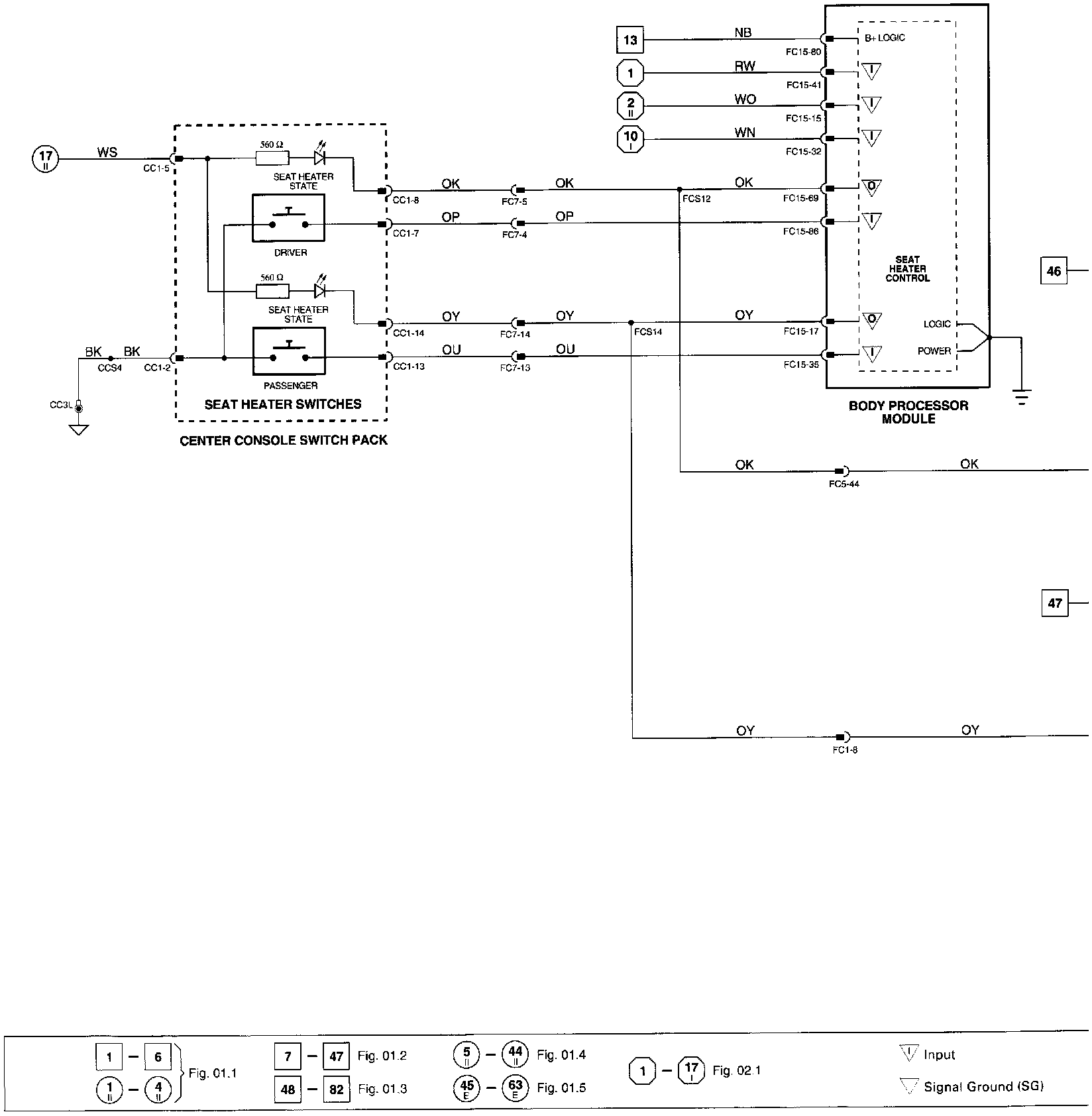

Wiring Diagram

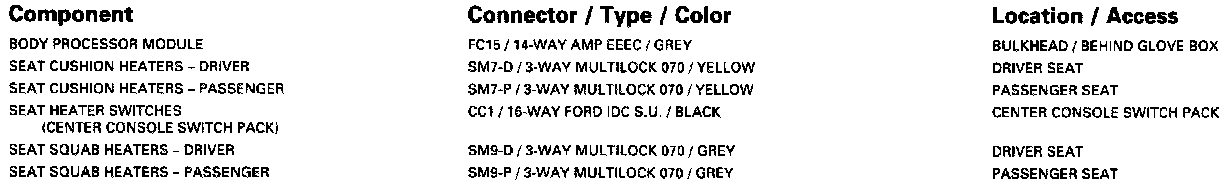

Component Information







Relay Information

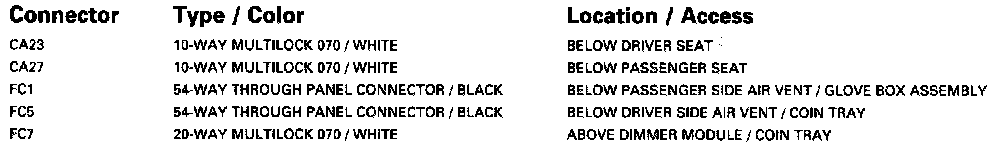

Harness to Harness Connector Information

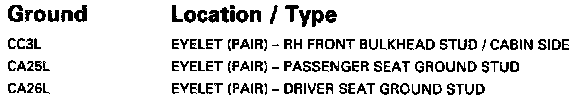

Ground Information

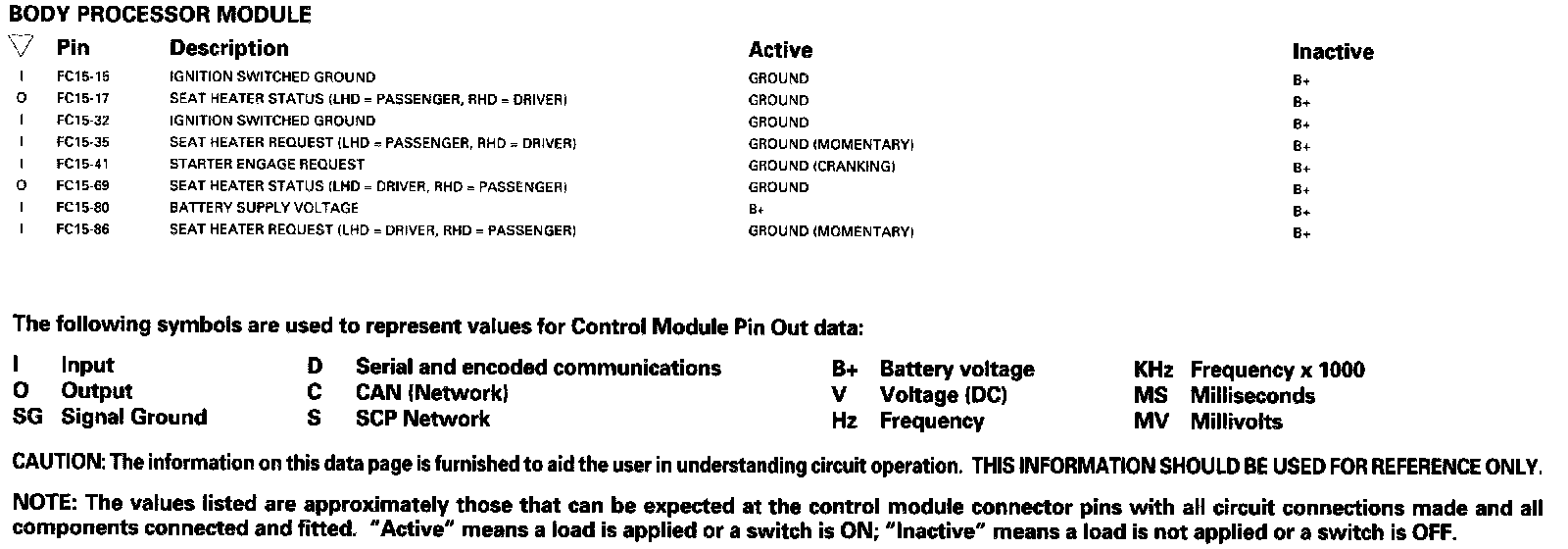

Control Module Pin Out Information
