Fig 12.8




3&##:

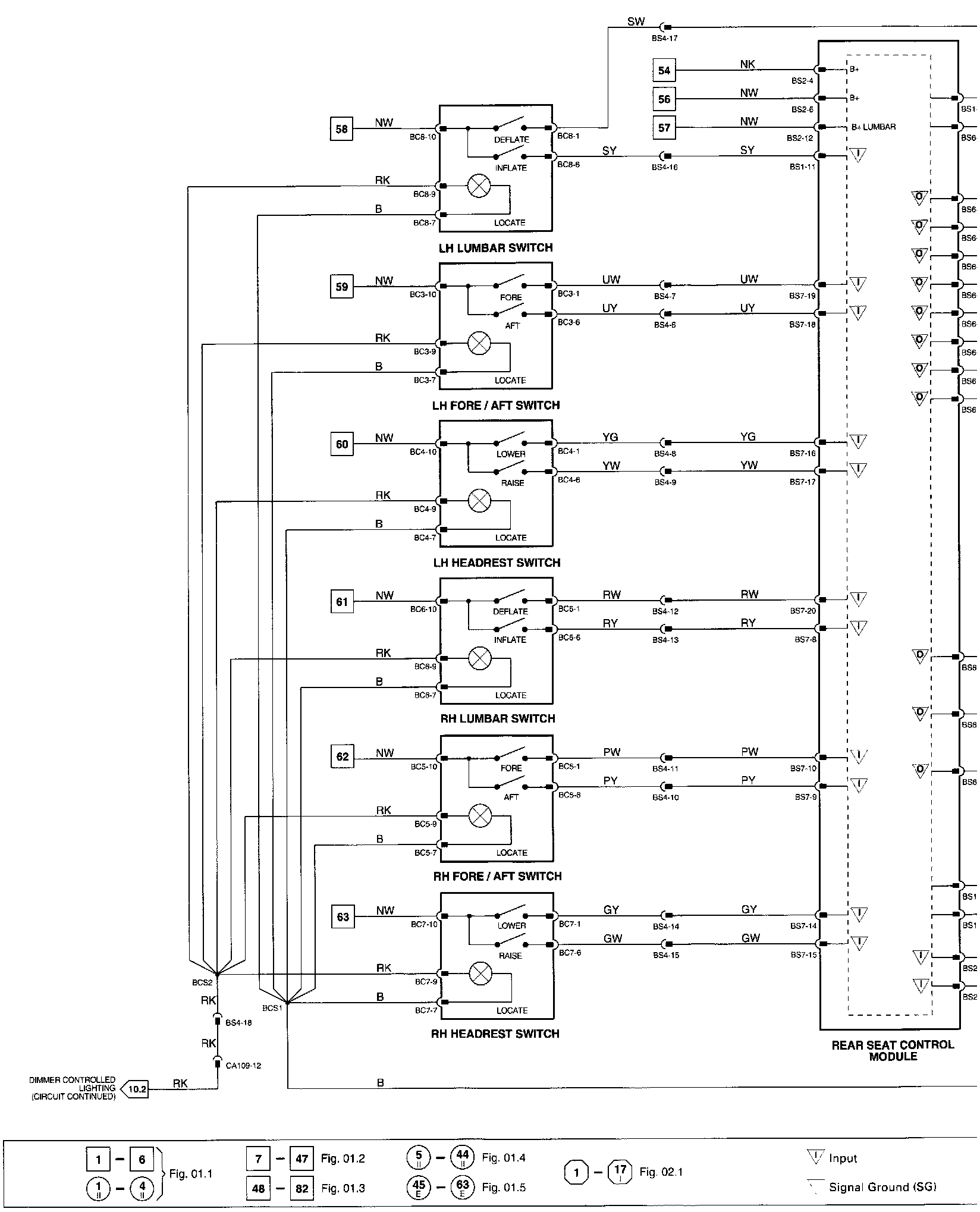

Wiring Diagram

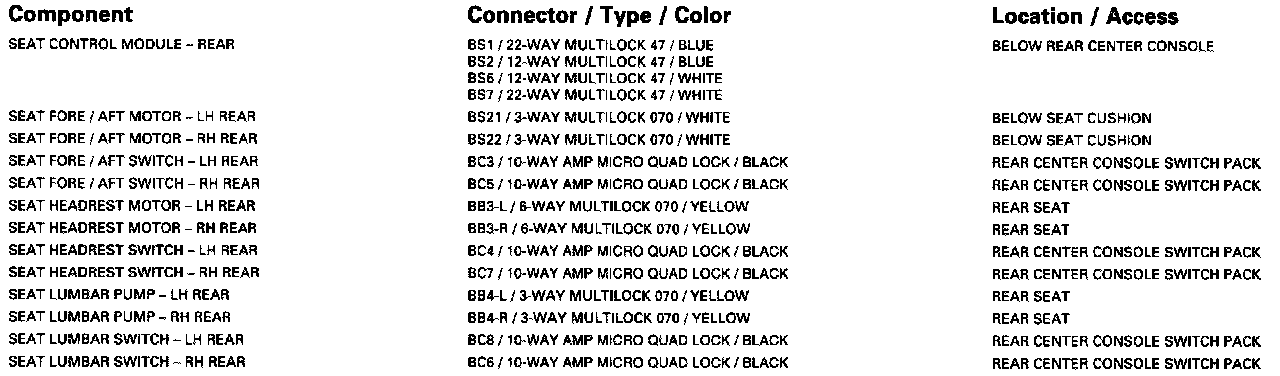

Component Information







Relay Information

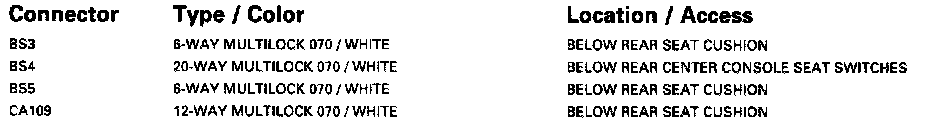

Harness to Harness Connector Information

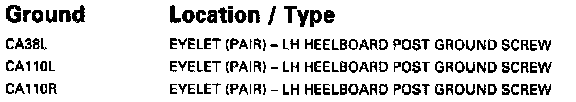

Ground Information

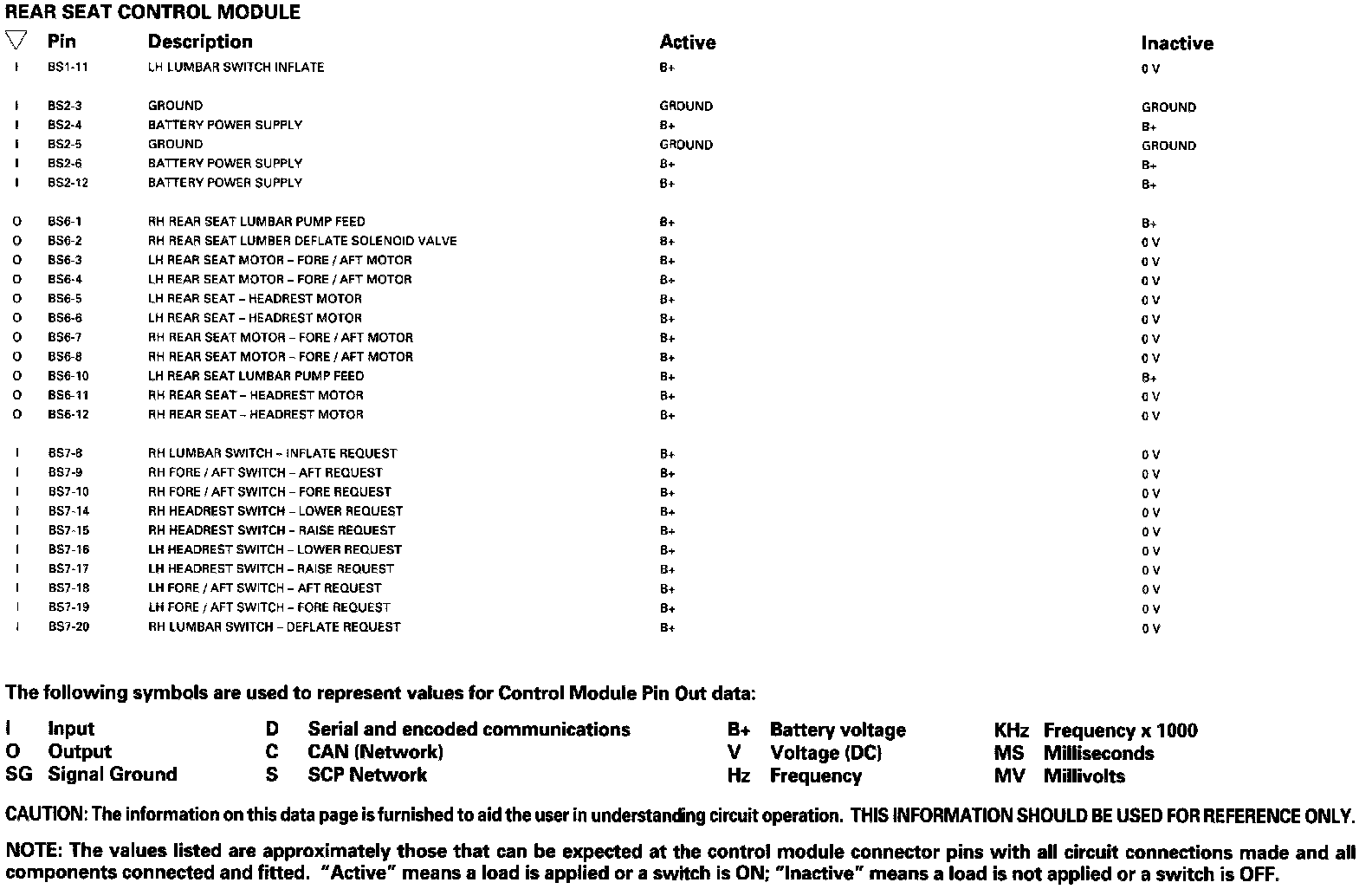

Control Module Pin Out Information
