Fig 12.9
Fig 12.9
W &#:

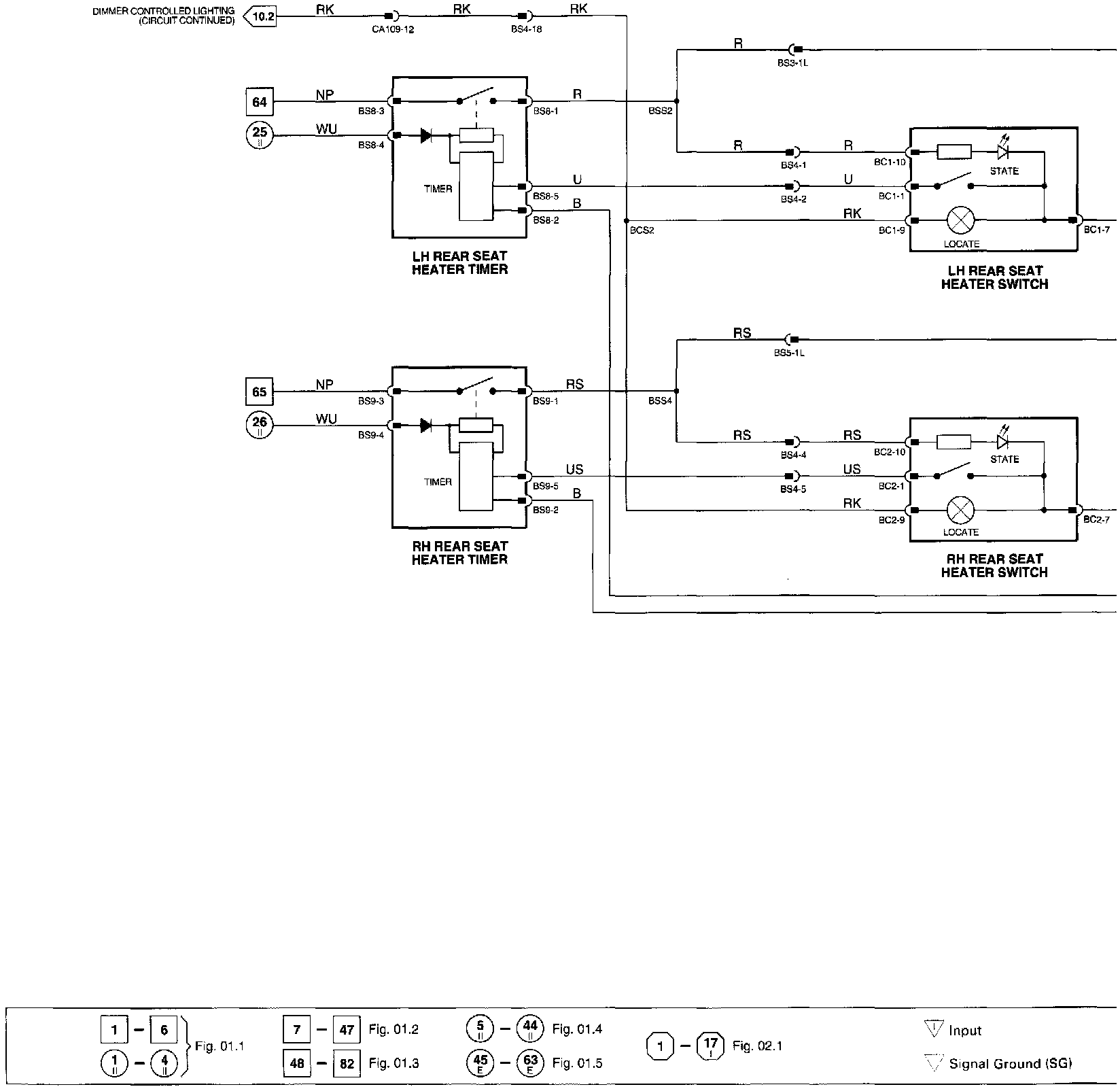

Wiring Diagram

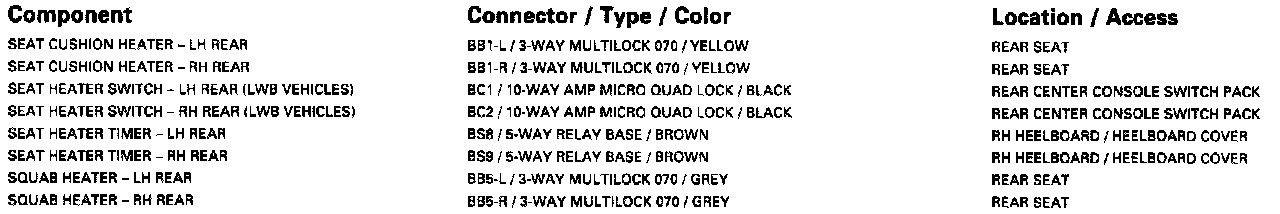

Component Information
Harness to Harness Connector Information
Ground Information
