Home >> Jaguar >> 1998 >> XJR (X308) V8-4.0L SC (AJ26) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagram By Fig Number >> Fig 16.1

Fig 16.1




�A:

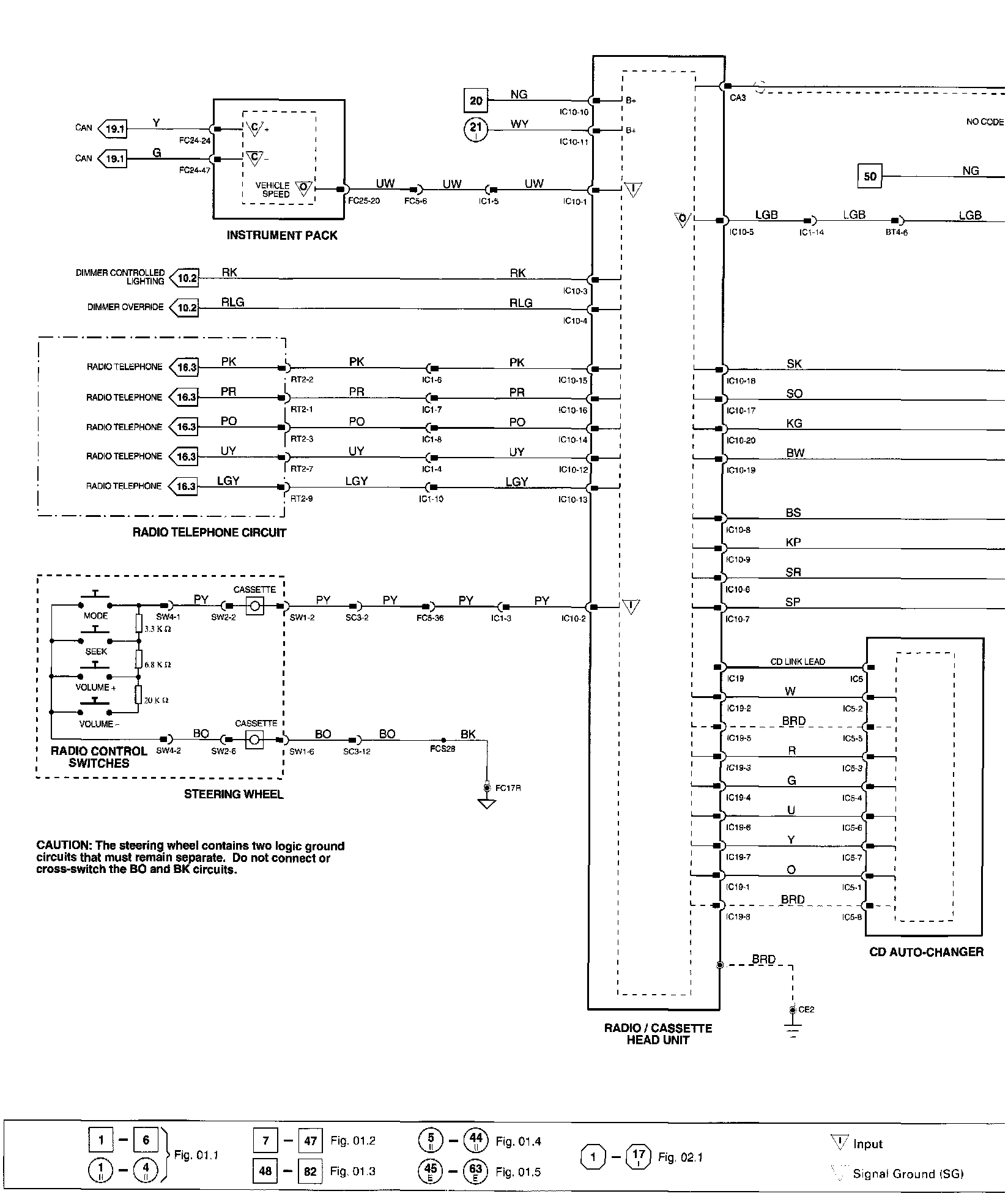

Wiring Diagram

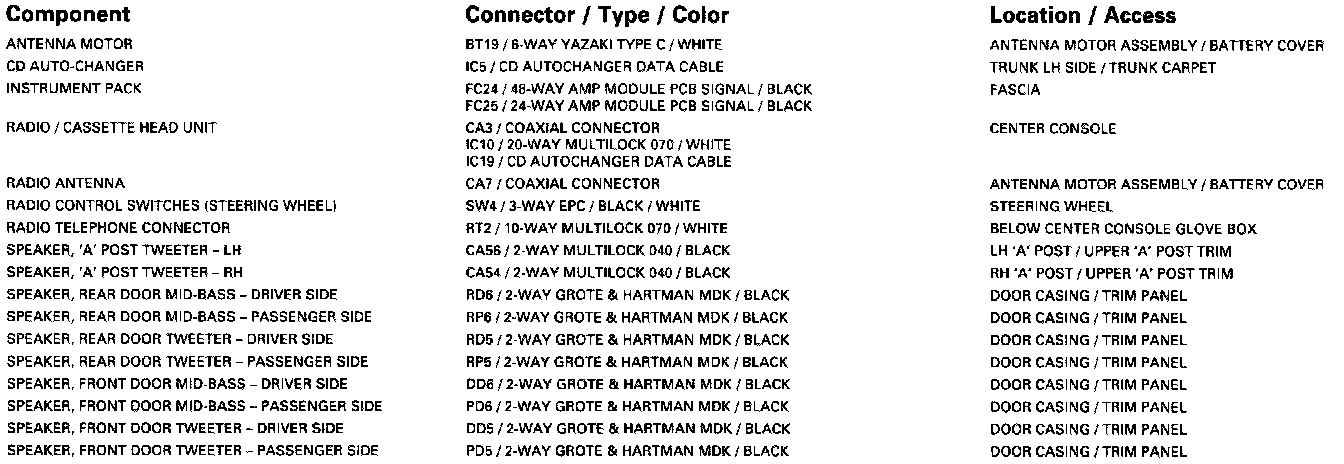

Component Information

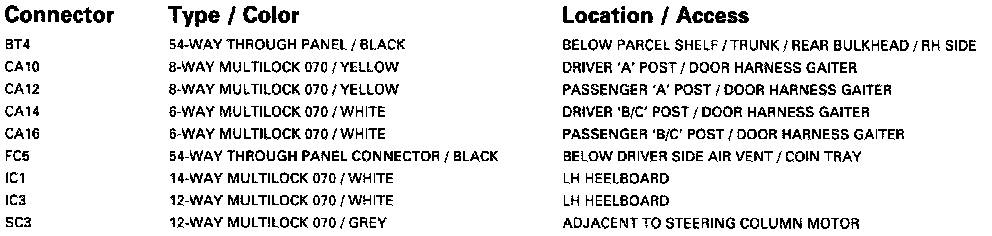

Harness to Harness Connector Information

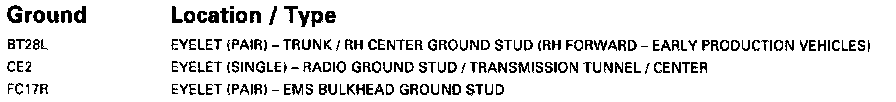

Ground Information

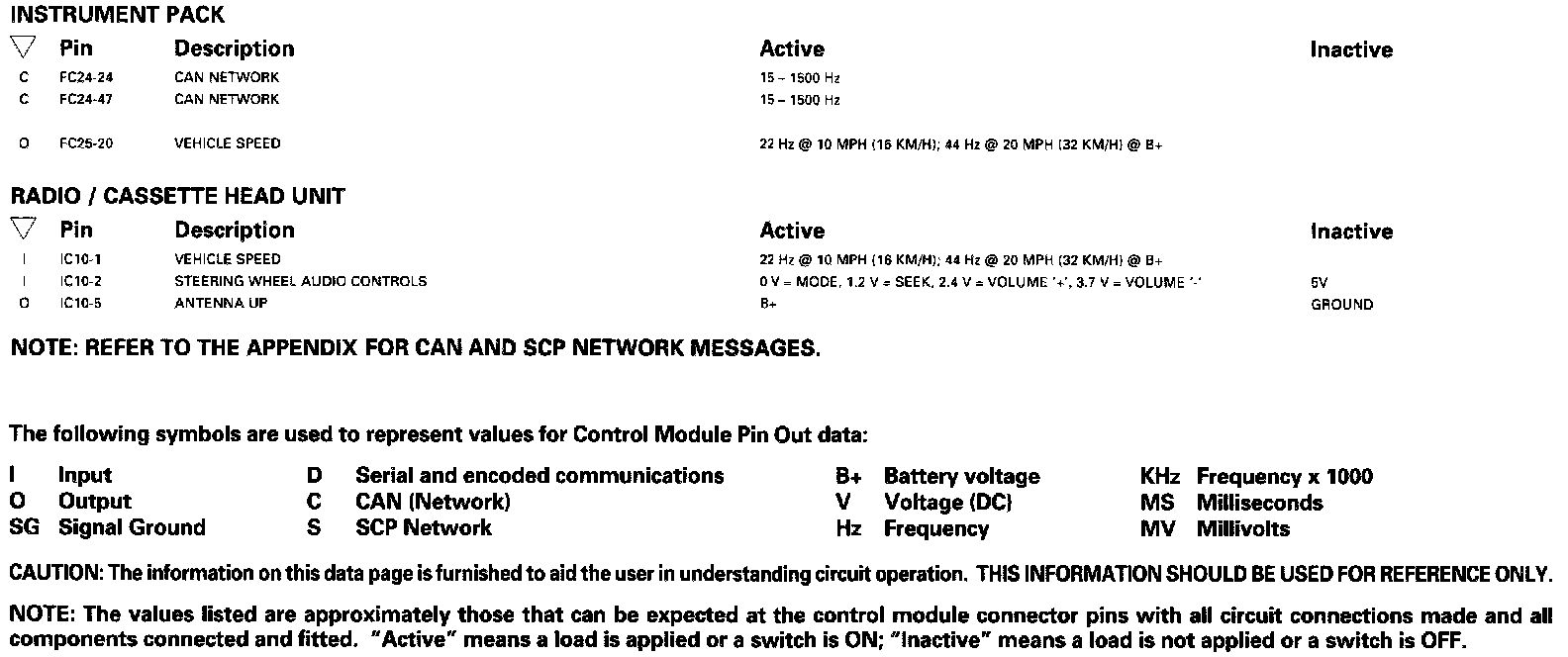

Control Module Pin Out Information
