Electronic Throttle Actuator

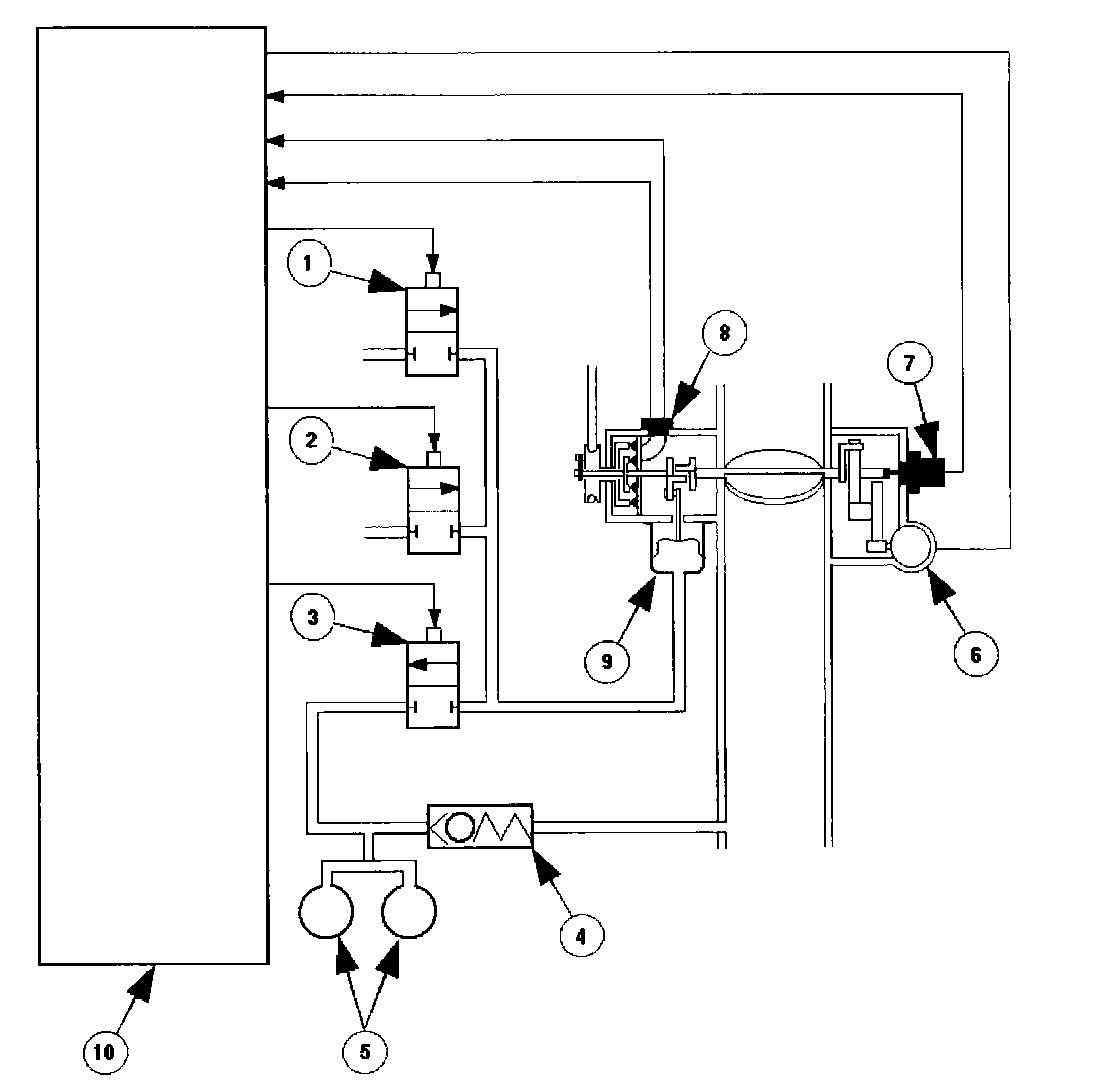

Cruise Control Vacuum Diagram:

Item/Description
1. VSV 2
2. VSV 3
3. VSV 1
4. Check valve
5. Reservoir
6. DC motor
7. Throttle position sensor
8. Pedal demand and mechanical guard position sensors
9. Vacuum actuator
10. ECM
