XJR (X308) V8-4.0L SC (AJ26)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit Diagrams (Extracts Only)
Circuit Diagrams (Extracts Only)

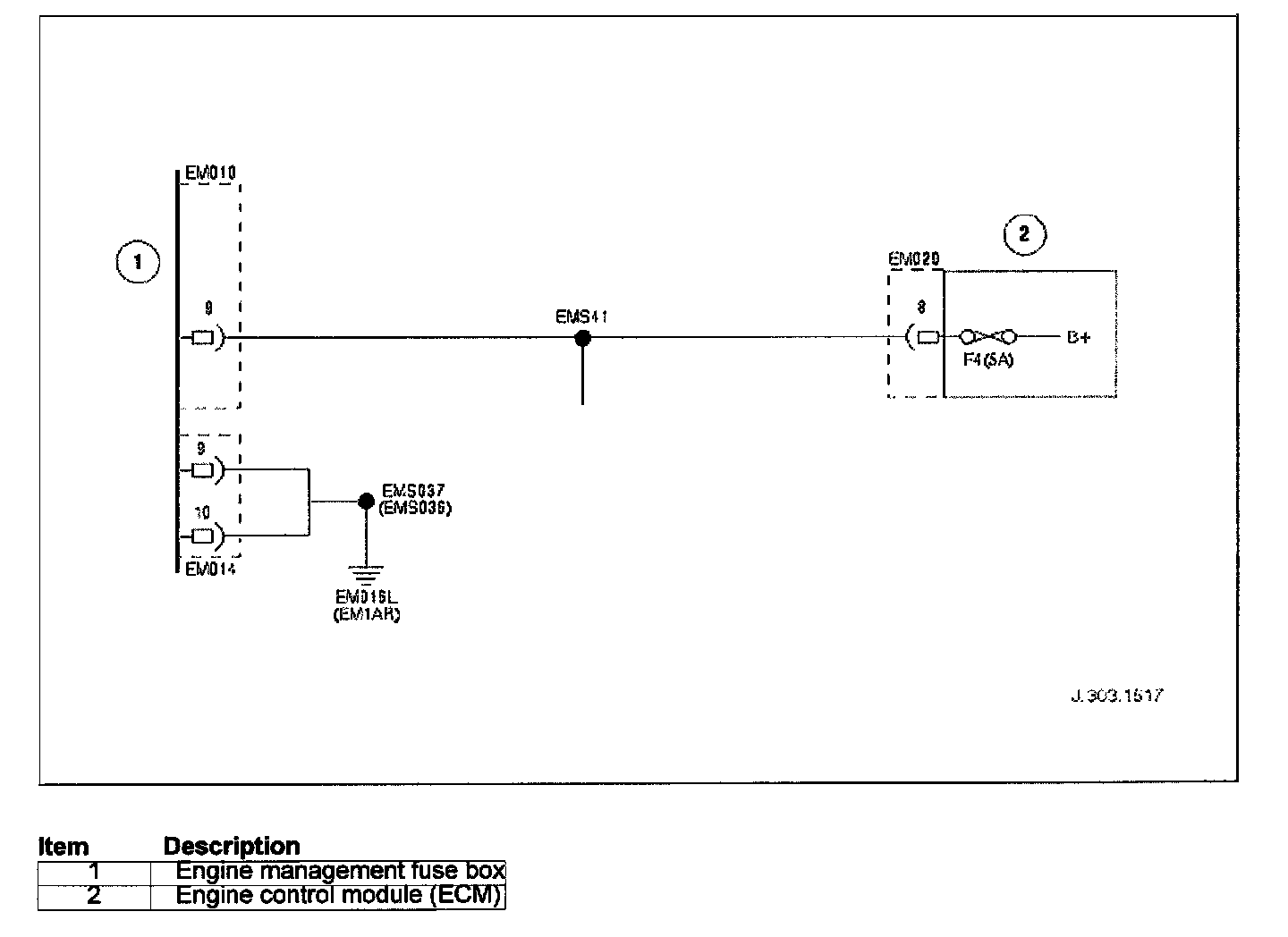

ECM Supply Voltage:

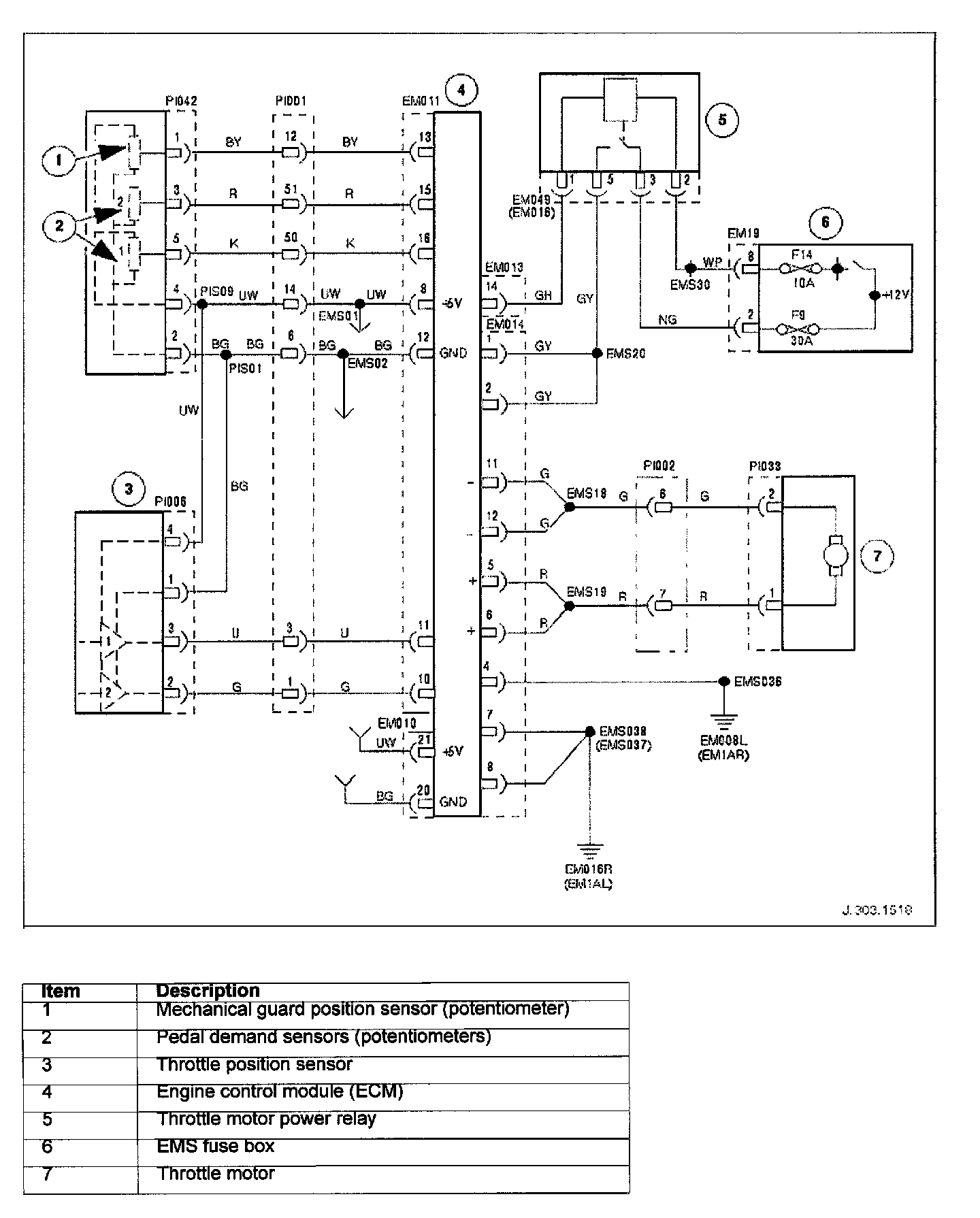

Throttle Sensors And Control:

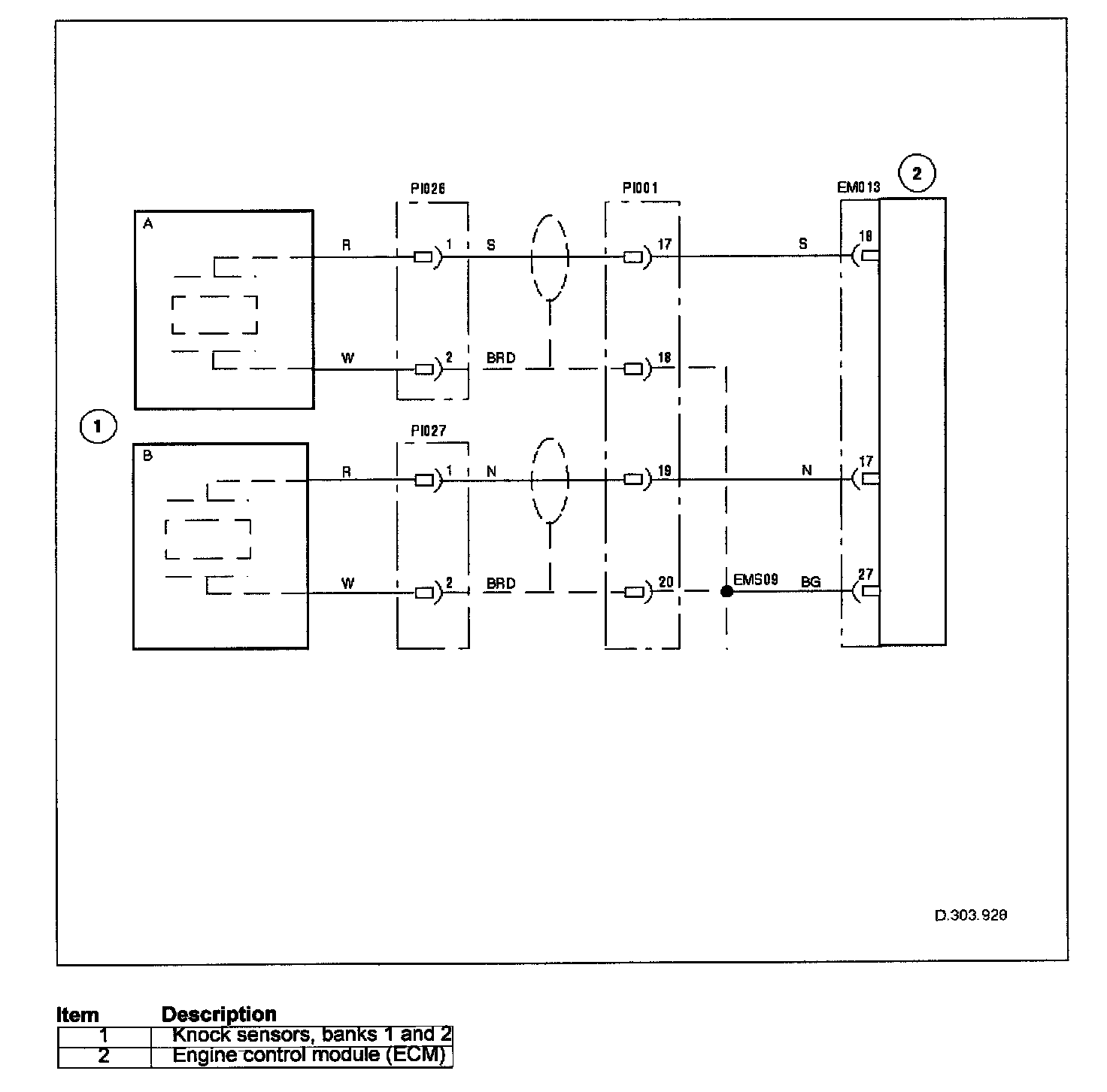

Knock Sensor:
Crankshaft Position Sensor:

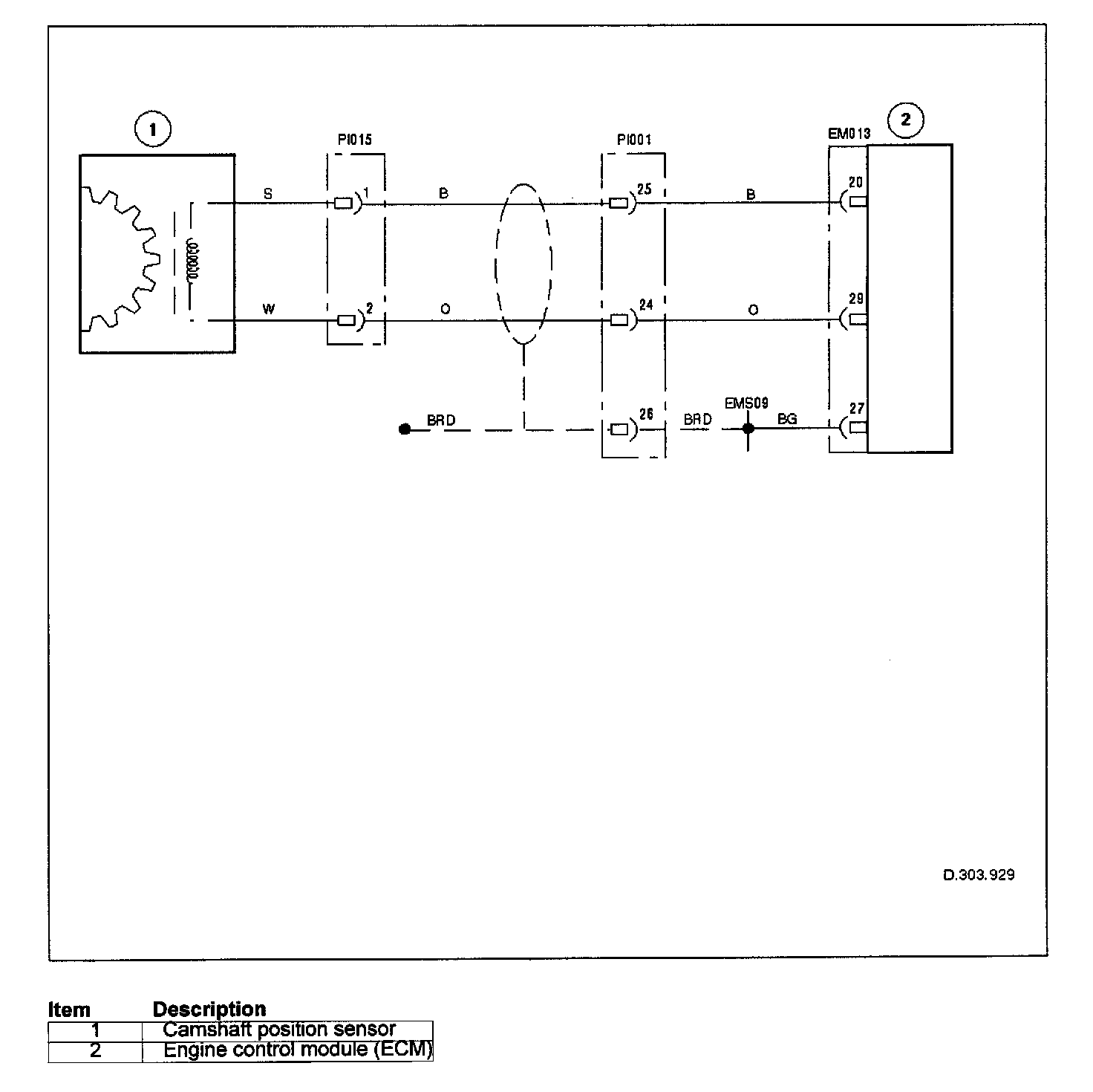

Camshaft Position Sensor:

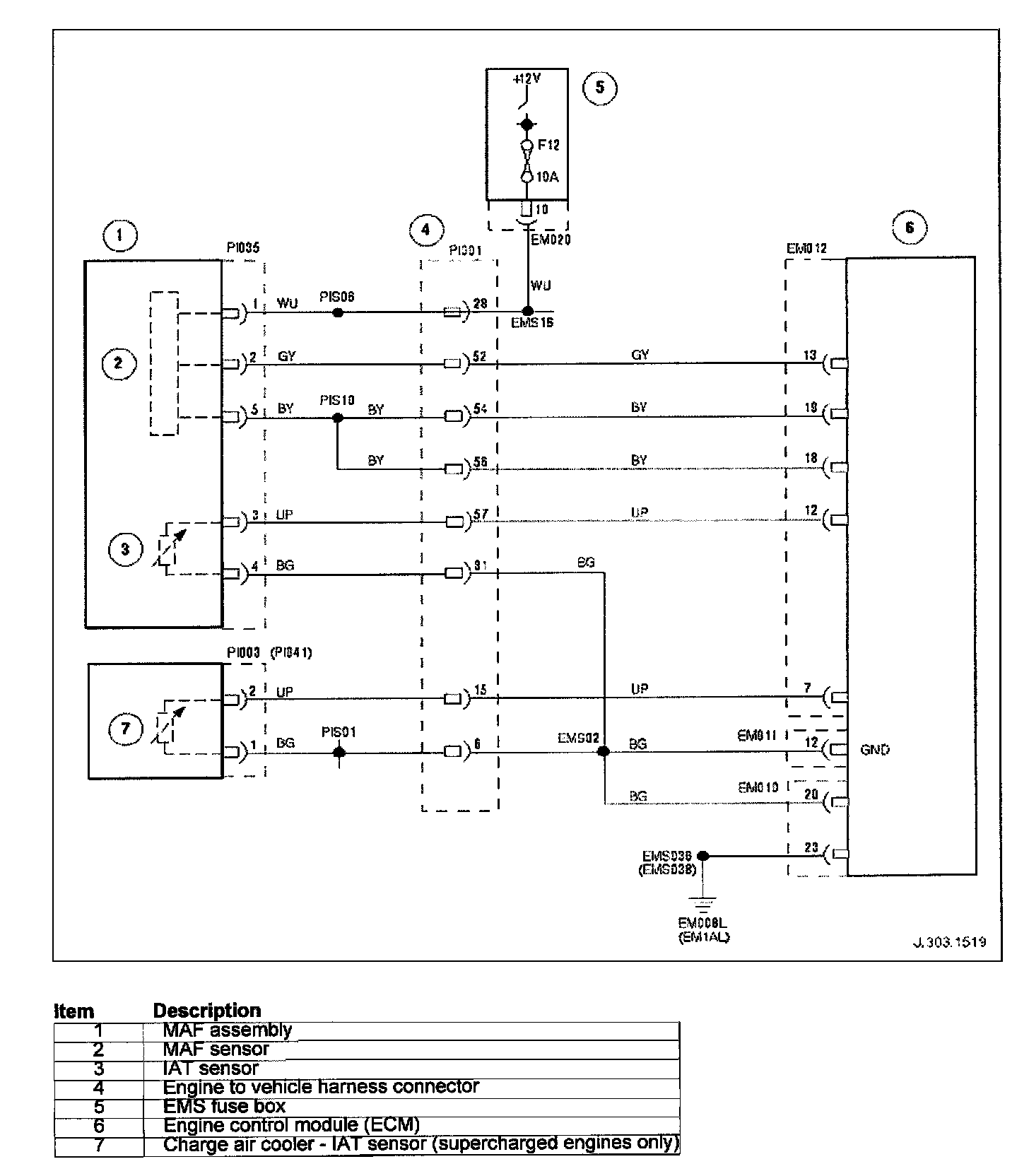

MAF And IAT Sensors:

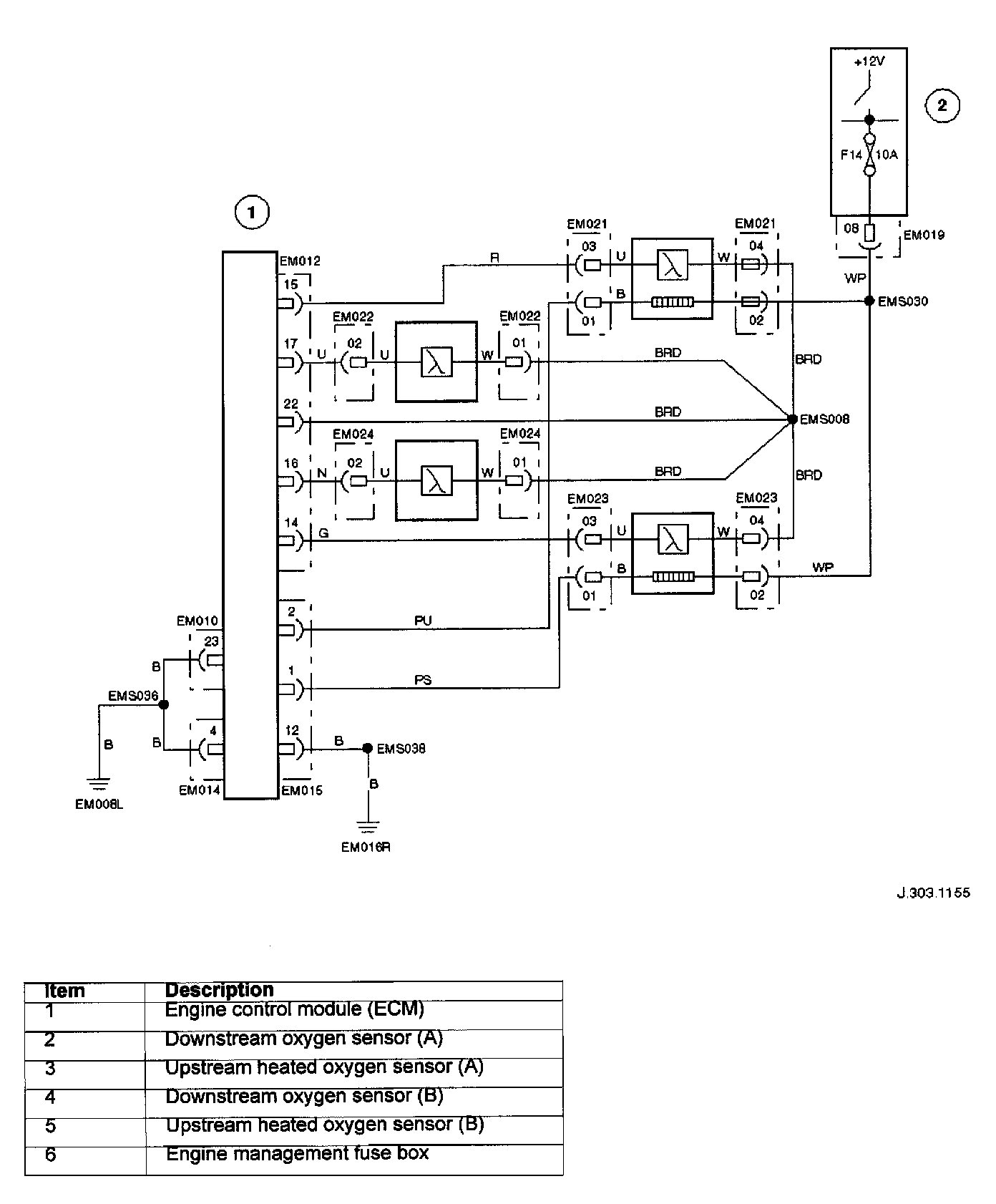

Oxygen Sensors:
