Engine Management, Part 2

��:

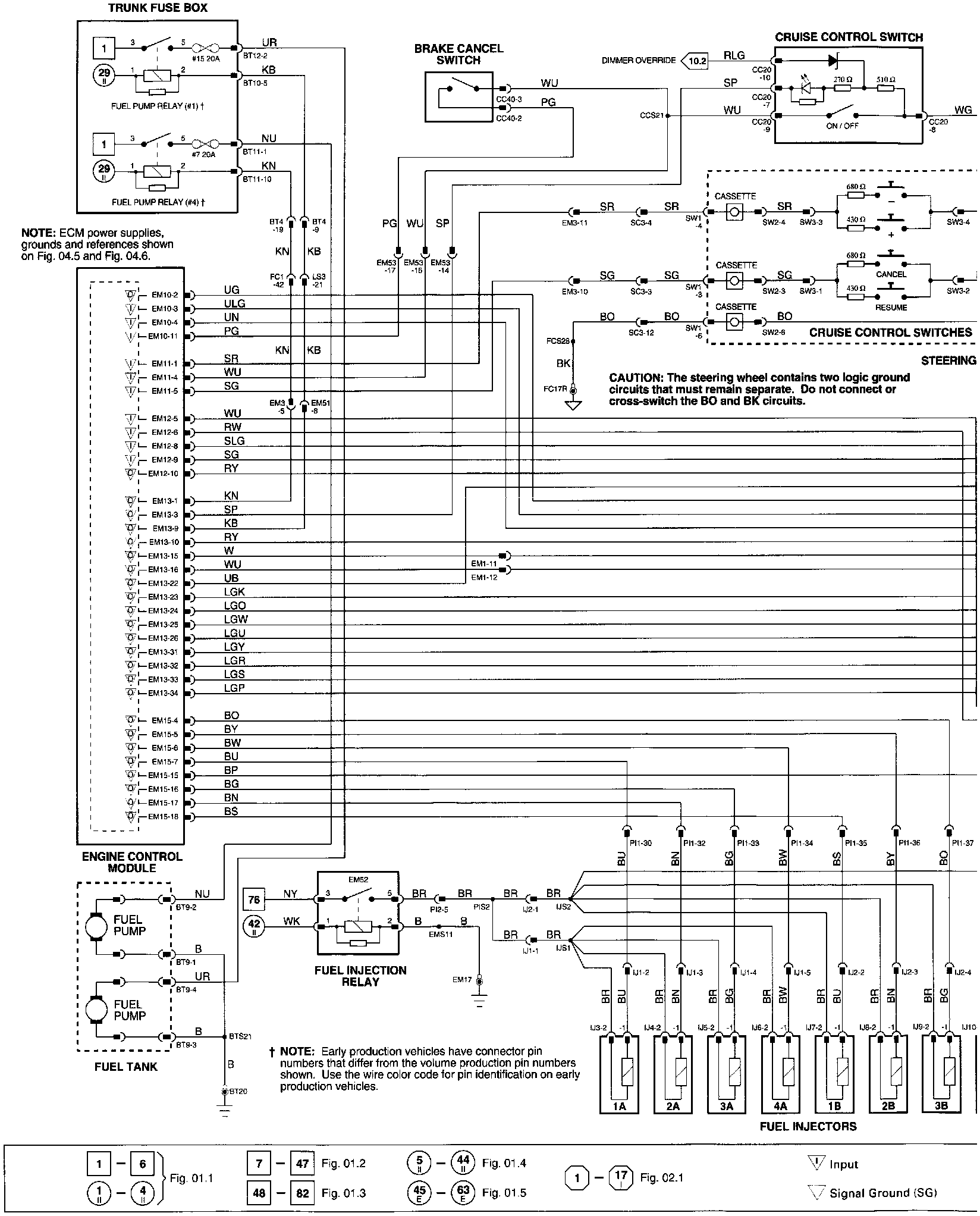

Wiring Diagram


Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle/Diagrams Electrical Diagrams

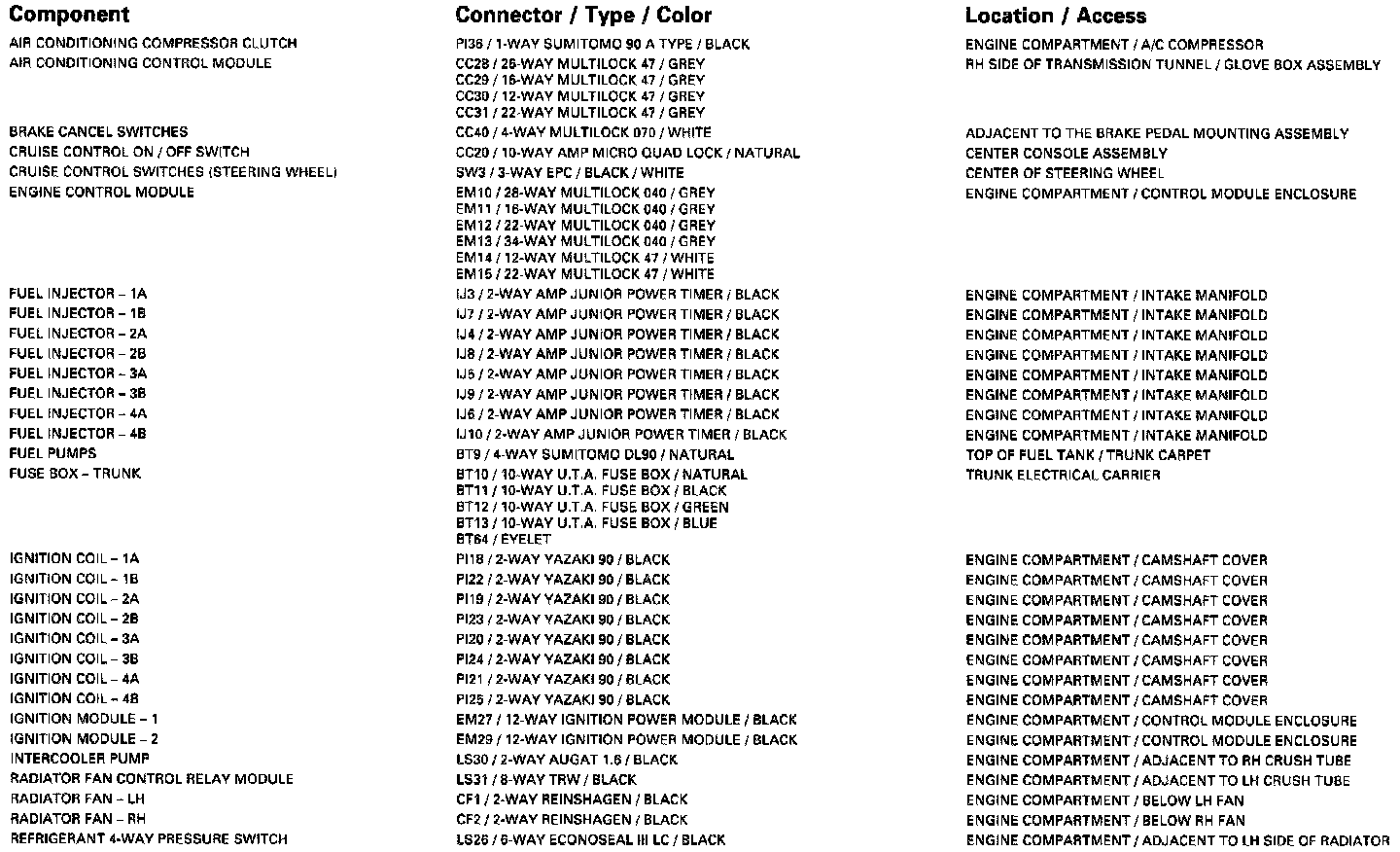

Components Informations

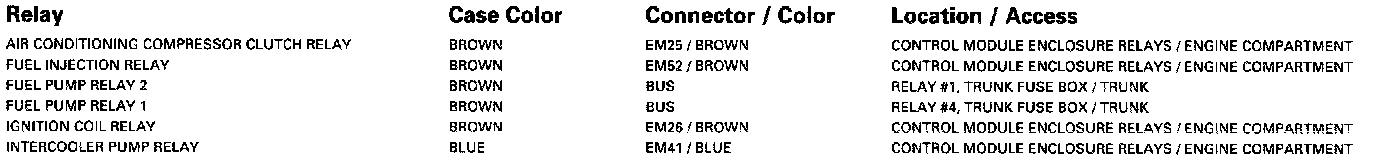

Relays Informations







Harness to Harness Connectors Informations

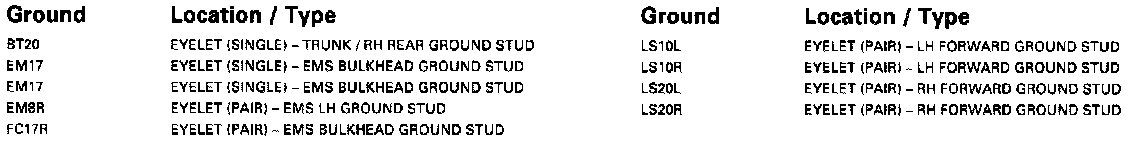

Grounds Informations







Control Module Pin Out Informations
