Steering: Testing and Inspection

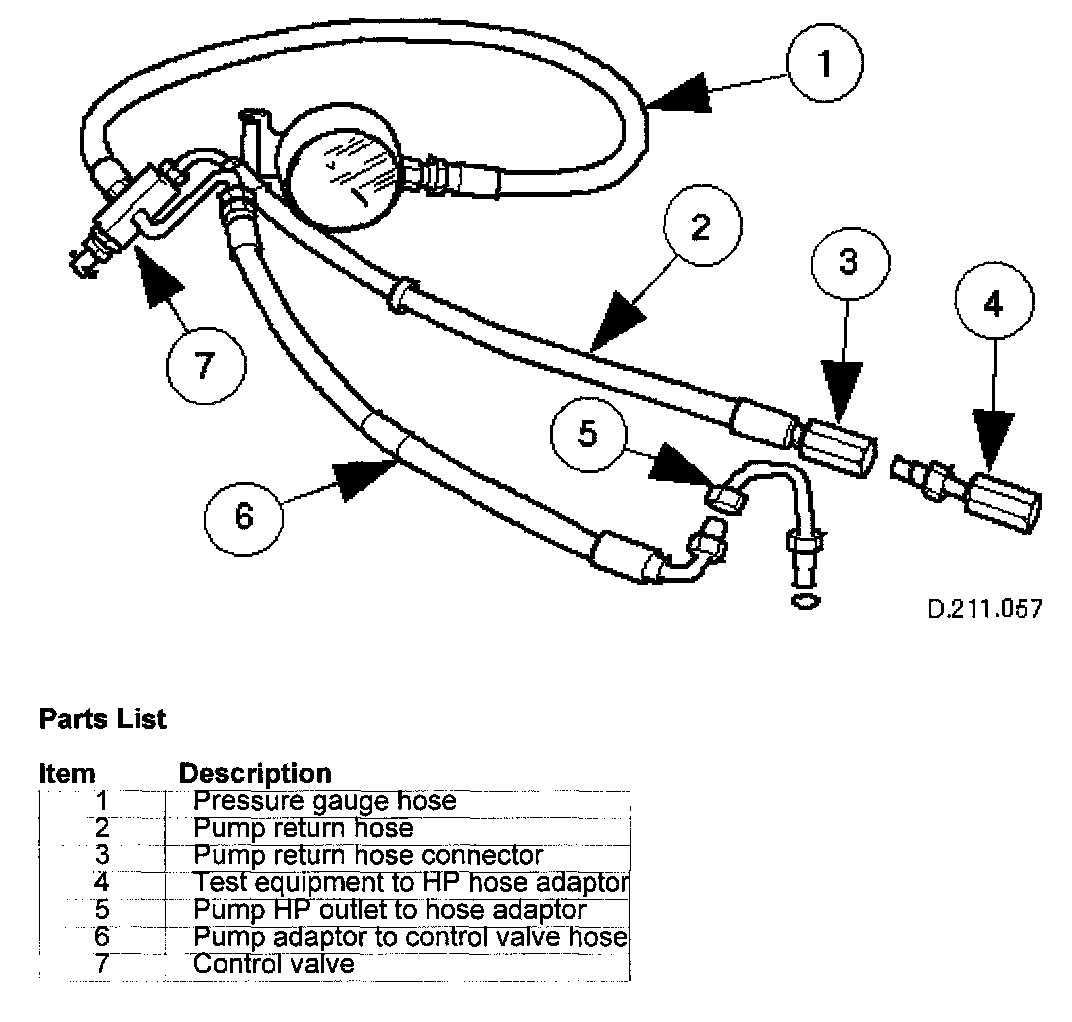

Test Equipment

Installing Test Equipment

To install the pressure test equipment:
- Place a suitable drain tray below the PAS pump.
- Install a hose clamp on the reservoir to pump hose prior to disconnecting any hoses, to avoid unnecessary loss of fluid.
- Disconnect the hose from the PAS pump high pressure outlet.
- Install the pump outlet to hose adaptor. Do not omit the O-ring.
- Connect the pump adaptor to control valve hose of the test equipment.
- Install the adaptor in the high pressure hose previously removed from the pump outlet.
- Connect the connector of the test equipment hose to the adaptor.
- Remove the hose clamp from the reservoir hose.
- Start the engine.

With the control valve OPEN and the engine idling, the following system pressures may be checked:
- During turning.
- When the steering is held on full lock.
- With the steering at rest.

WARNING: TO AVOID EXCESSIVE HEATING OF THE PAS PUMP, DO NOT CLOSE THE VALVE FOR LONGER THAN NECESSARY.

WARNING: DO NOT DRIVE THE VEHICLE WITH THE TEST EQUIPMENT INSTALLED.

With the control valve CLOSED the pump maximum output pressure can be checked.

Removing Test Equipment

To remove the test equipment:
- Install a hose clamp on the reservoir to pump hose.
- Removing the test equipment is a reversal of the installation instructions.
- Install a new O-ring to the PAS pump high pressure outlet to hose connection.
- Install the original hose to the PAS pump.
- Remove the clamp from the reservoir to pump hose.
- Top-up the reservoir fluid.
- Bleed the PAS system.

Refer to PDU User Guide
The PDU will diagnose all electrical components of the system.

Before changing a component, check fuse No. 12 (10A) in the left-hand heelboard fuse box. However, if this fuse is faulty a number of other components will also fail to function.
