Fault Mode 6
Fault Mode 6

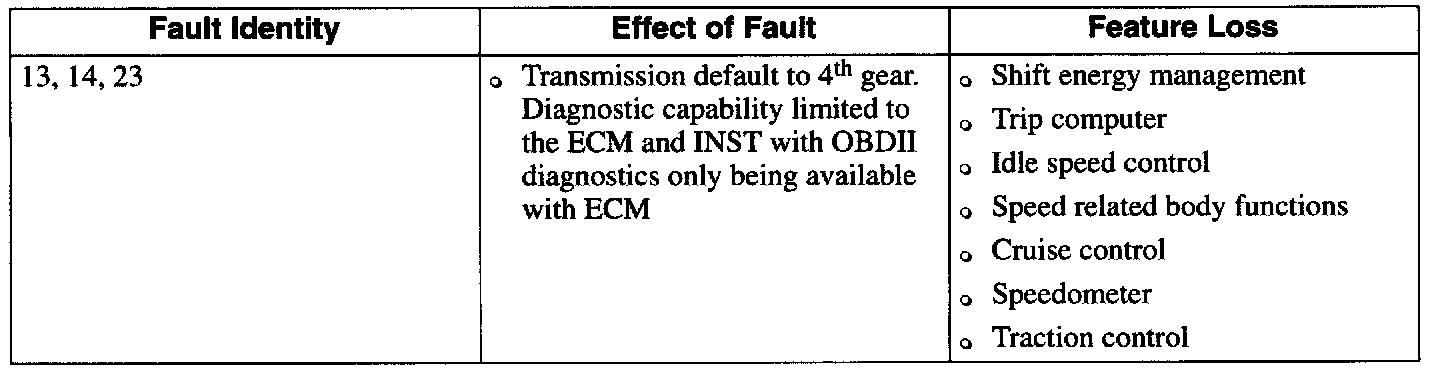

These failures will divide the network so that communication between the TCM and ABS/TC Control Module will remain, similarly communication between the ECM and INST will be unaffected.
