Fig 12.1




ƙ�":

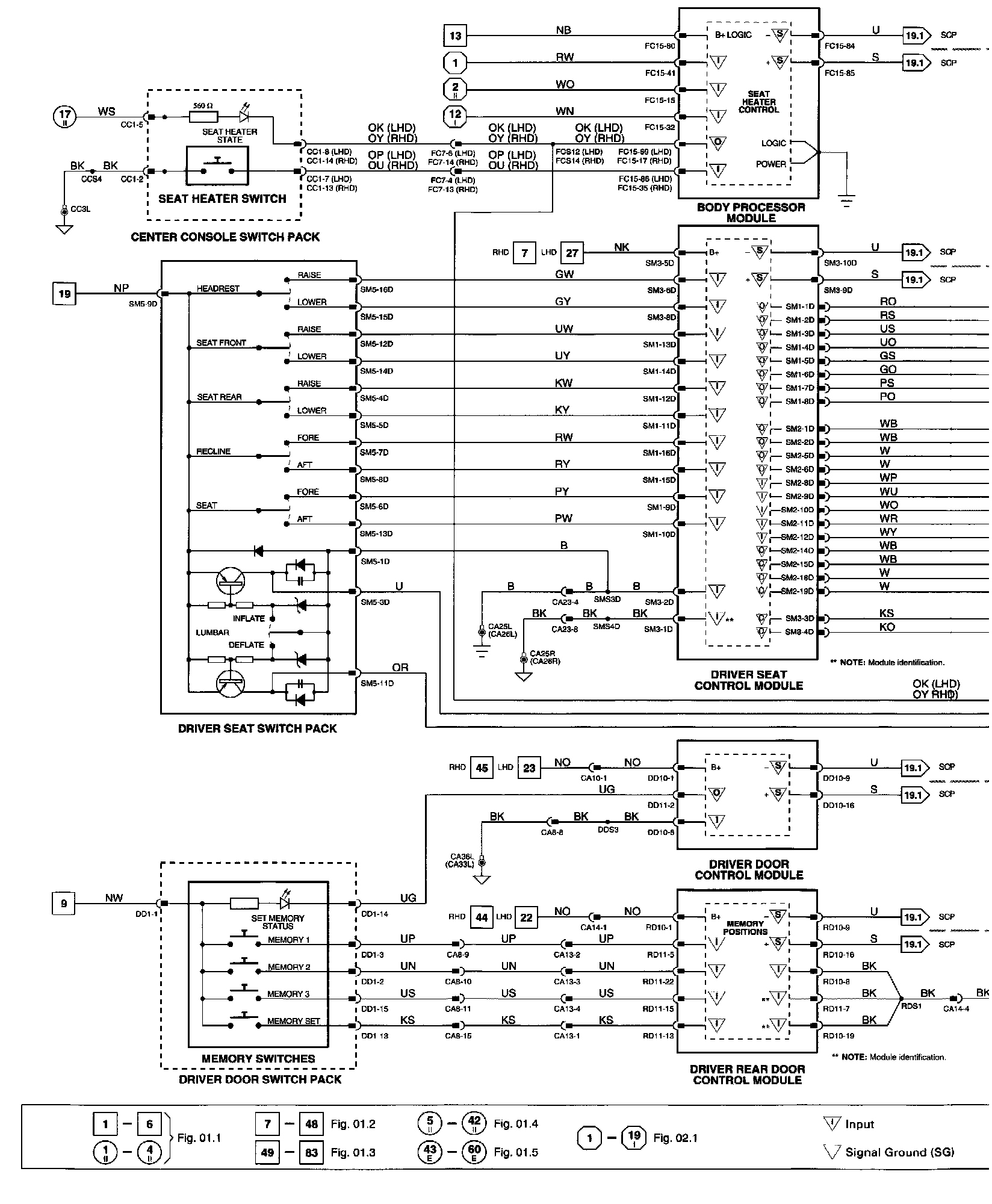

Wiring Diagram

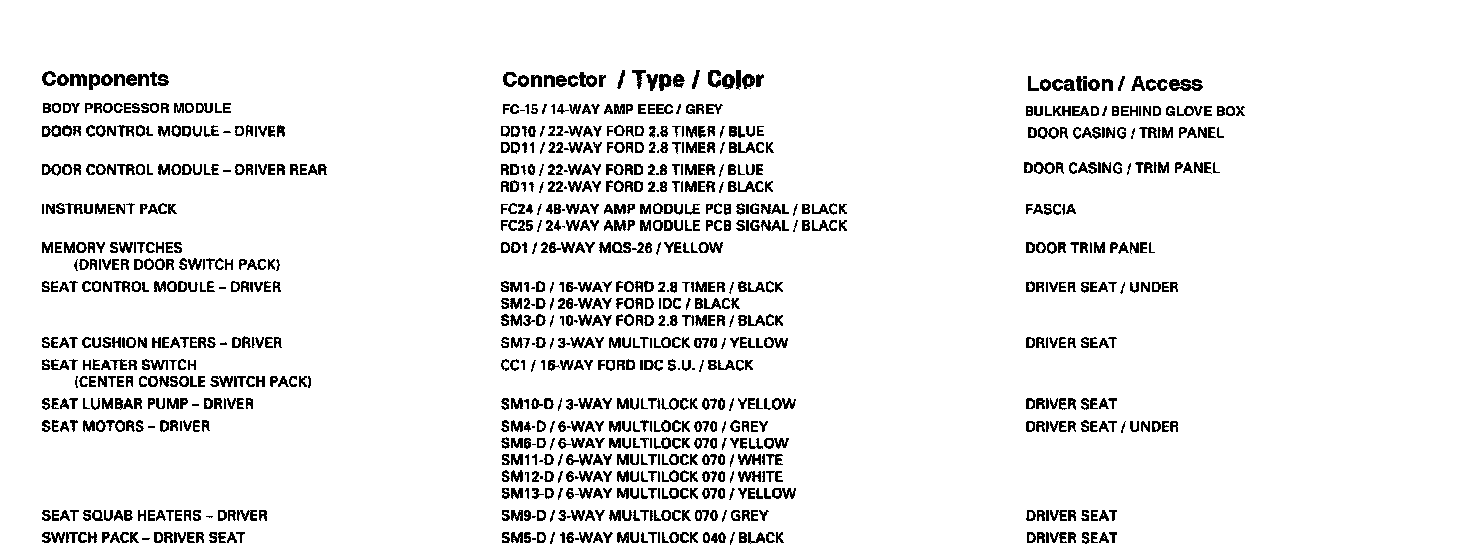

Component Information







Relay Information

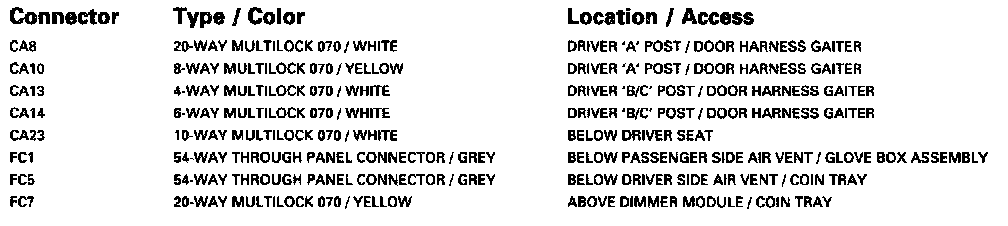

Harness to Harness Connector Information

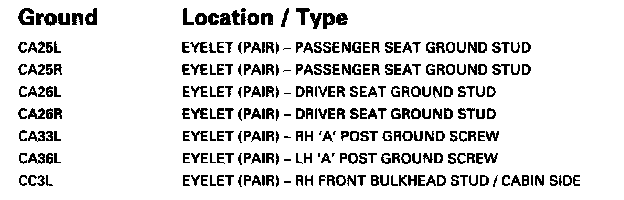

Ground Information

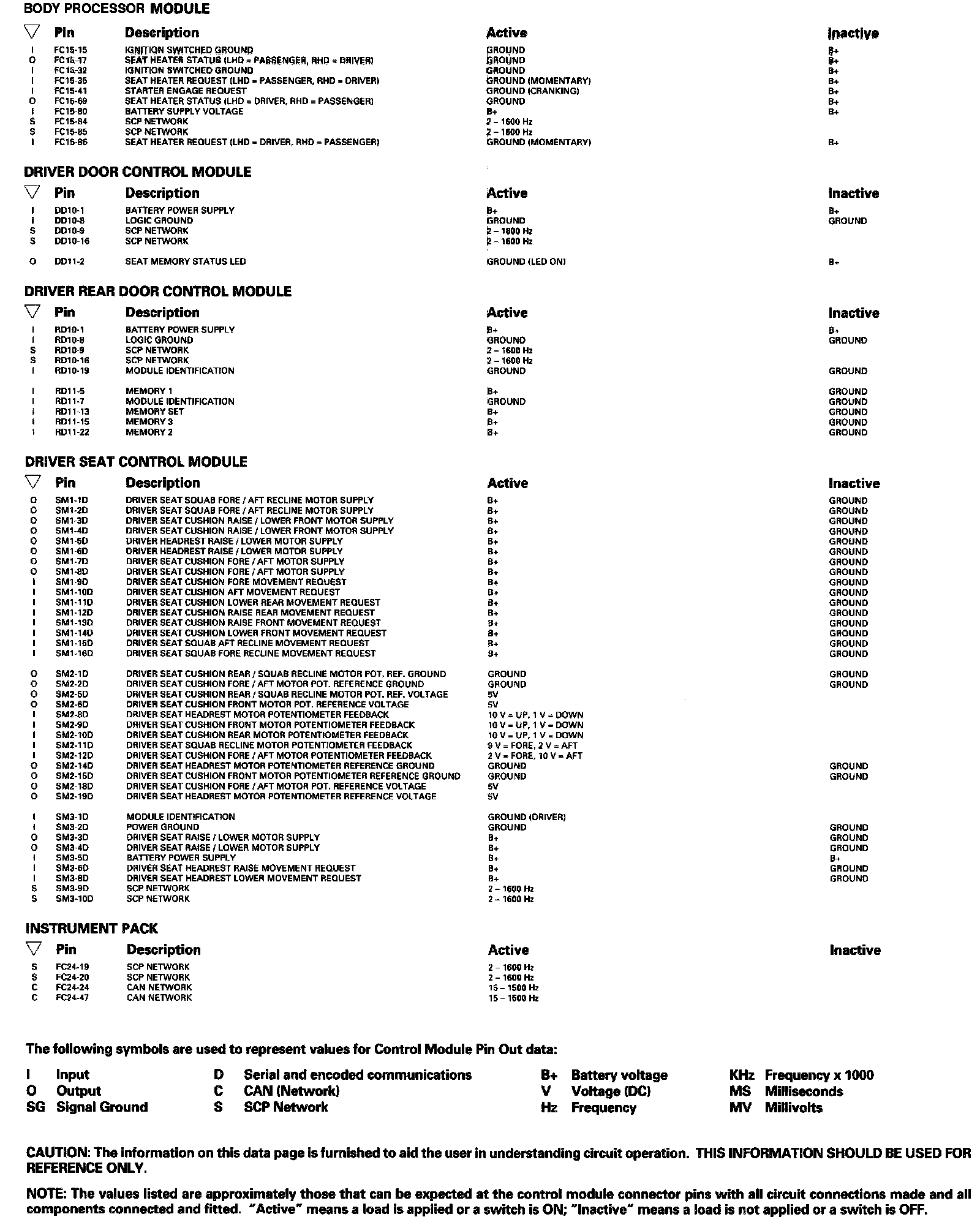

Control Module Pin Out Information
