Fig 19.2




z3� :

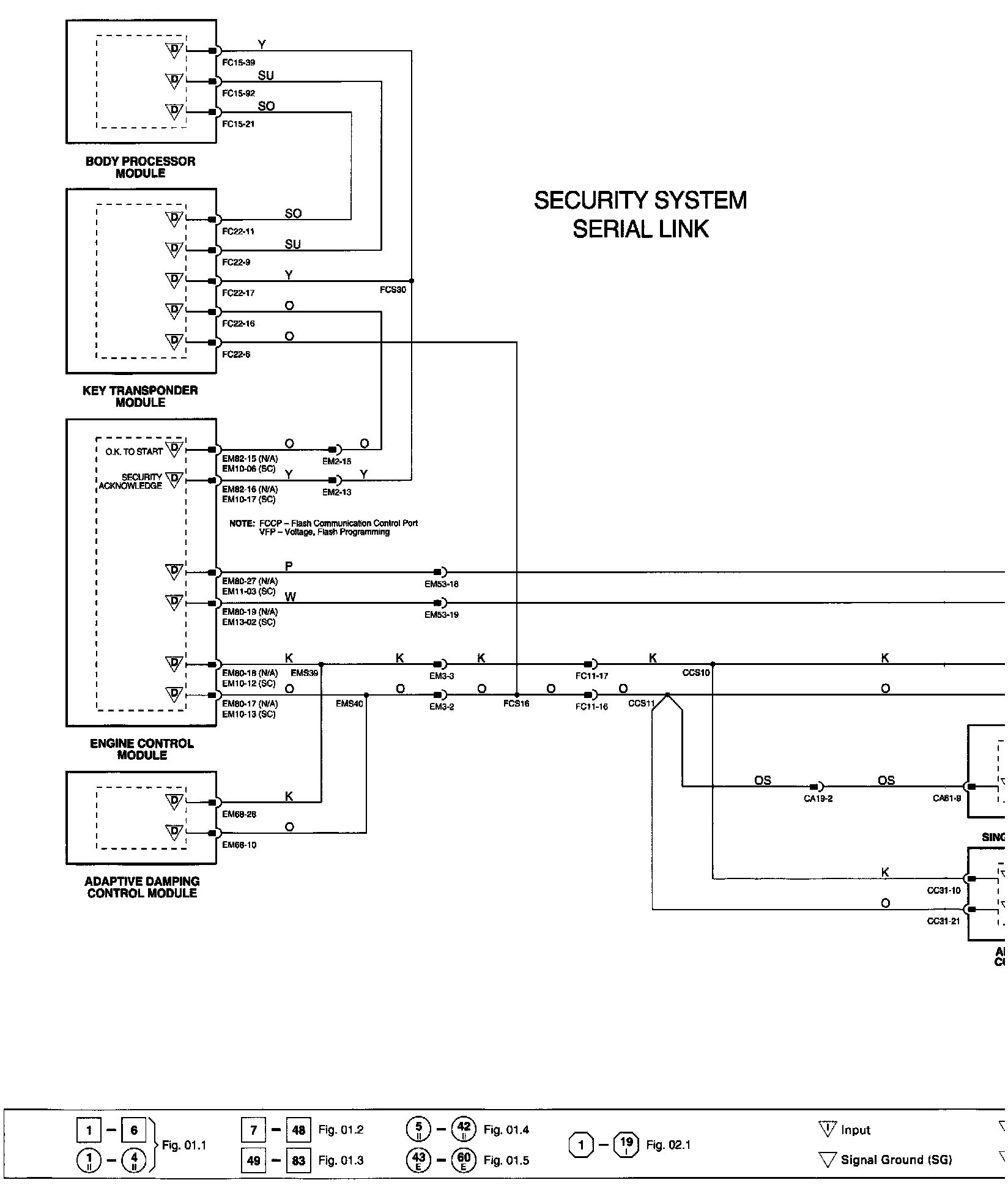

Wiring Diagram







Component Information

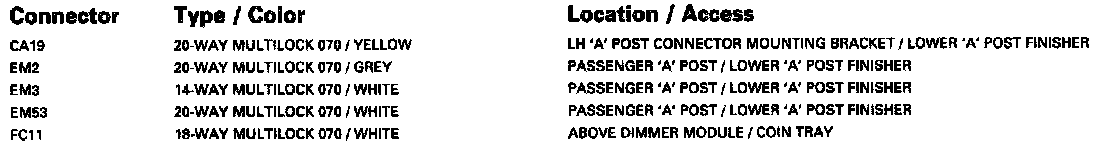

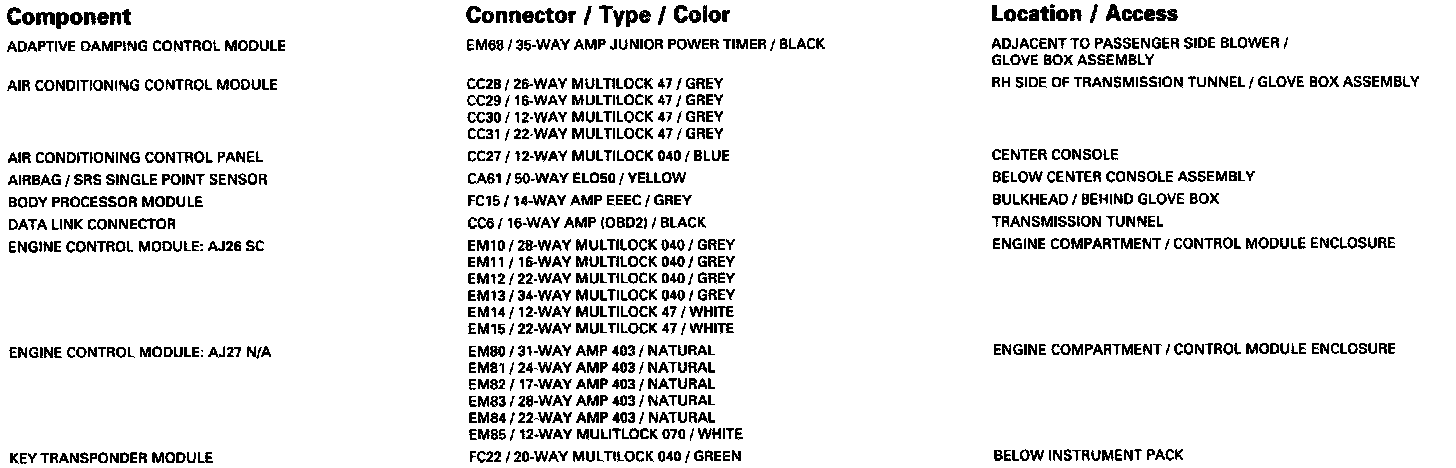

Harness to Harness Connector Information







Ground Information

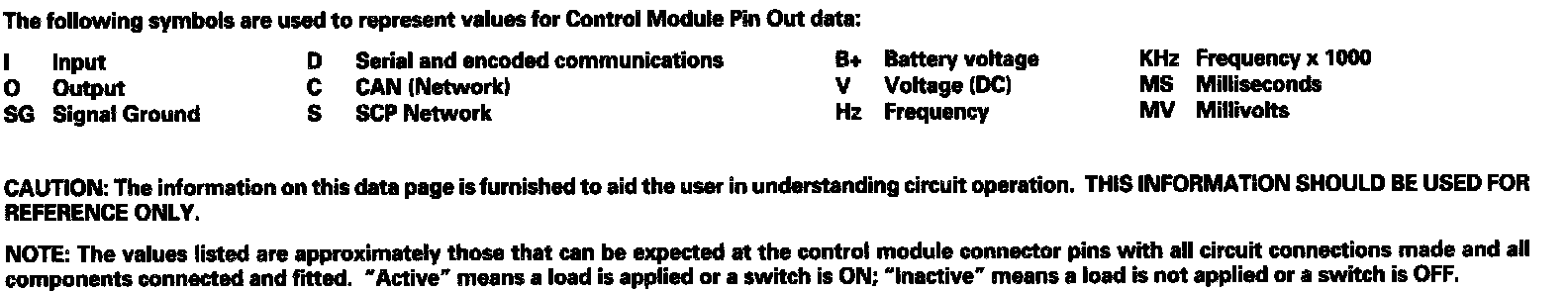

Control Module Pin Out Information
