C1805

KEY TO COLUMN HEADINGS

DTC Diagnostic Trouble Code.

CM The control module(s) the DTC is associated with:
ABS/TC Anti-lock braking / traction control
A/CCM Climate control
ADCM Adaptive damping
AUDIO Radio head unit
CTCM Cellular telephone control module
DDCM Driver door control module
DSCCM Dynamic stability control
DSCM Driver seat control module
GECM General electronic control module
INST Instrument pack
MC Message center (part of instrument pack)
NCM Navigation control module
RCM Restraints control module
RECM Rear electronic control module
RPACM Reverse parking aid control module
SCLM Steering column locking module
VACM Voice activation control module
VECM Vehicle emergency message control module

SYSTEM The vehicle system the DTC is associated with. Refer to the applicable wiring diagram for circuit details.

FAULT DESCRIPTION Fault description. If available, customer symptom (complaint) information is provided in this column.

MIL Y = System MIL (if fitted) is activated.
N = System MIL (if fitted) is not activated.
M = Message displayed.

POSSIBLE CAUSES Suggested possible causes listed in order of probability.

C1095 - C1155:

C1165 - C1233:

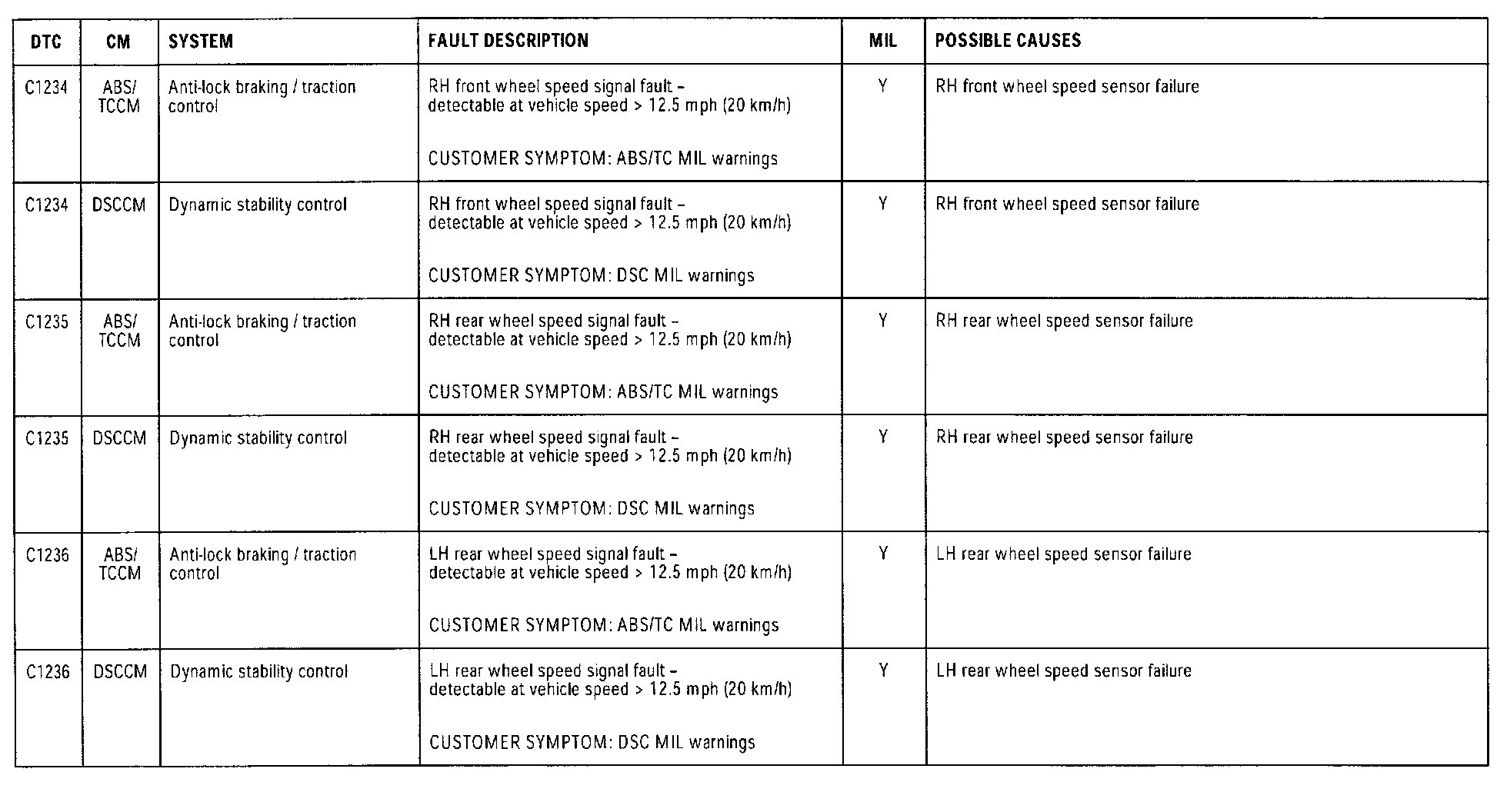

C1234 - C1236:

C1277 - C1280:

C1281 - C1285:

C1286 - C1288:

C1289 - C1419:

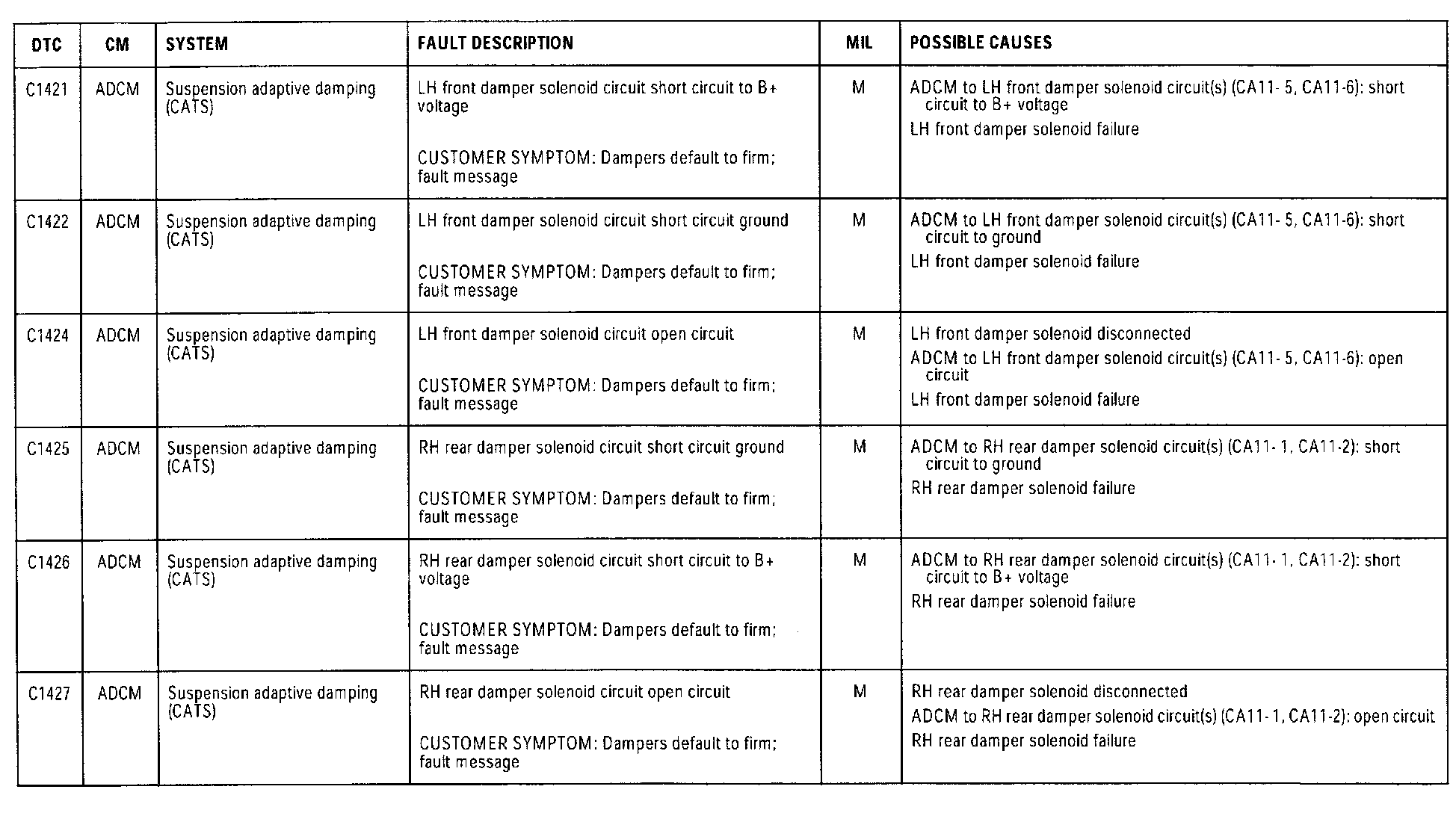

C1421 - C1427:

C1430 - C1455:

C1515 - C1703:

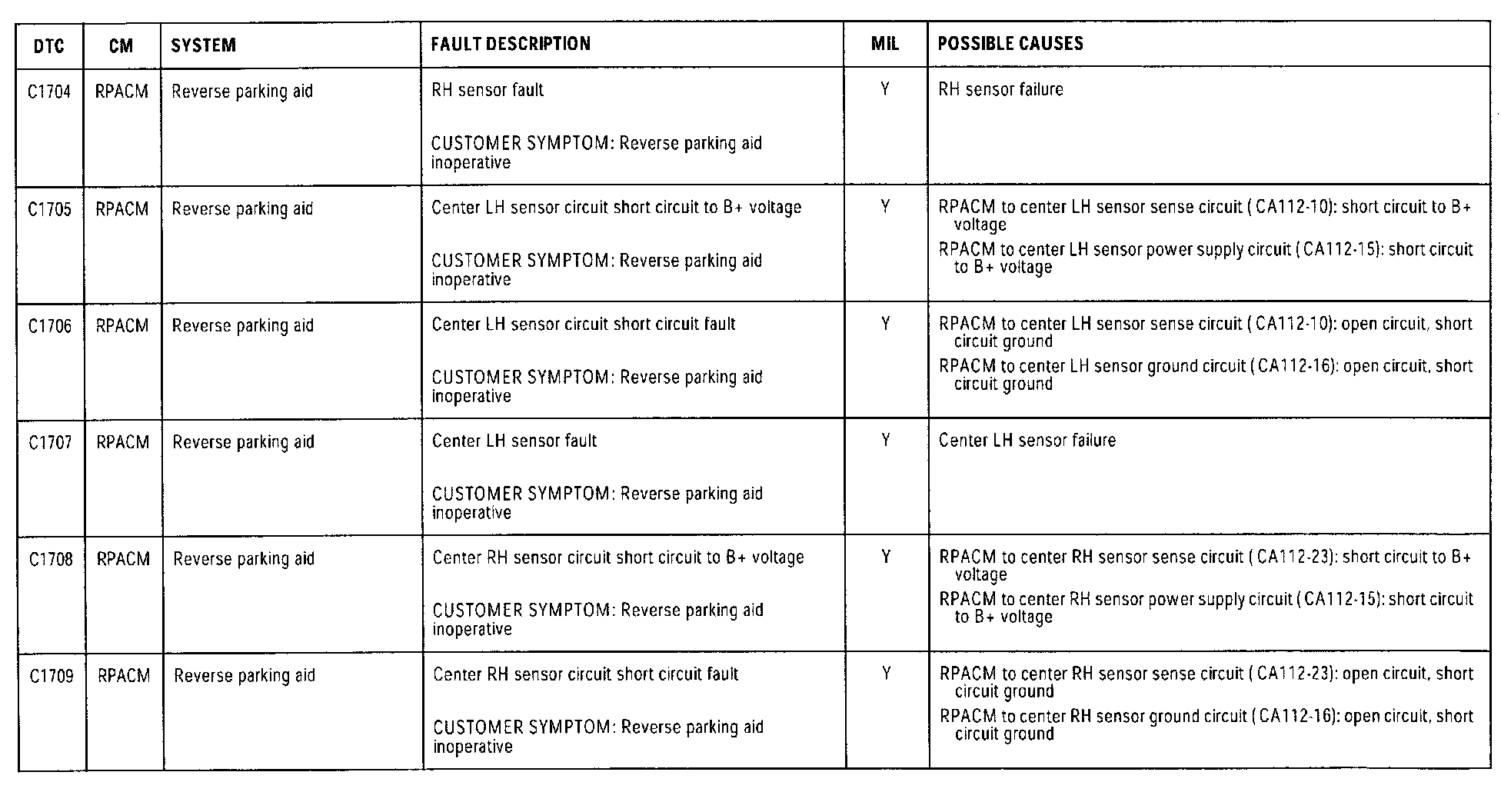

C1704 - C1709:

C1710 - C1805:

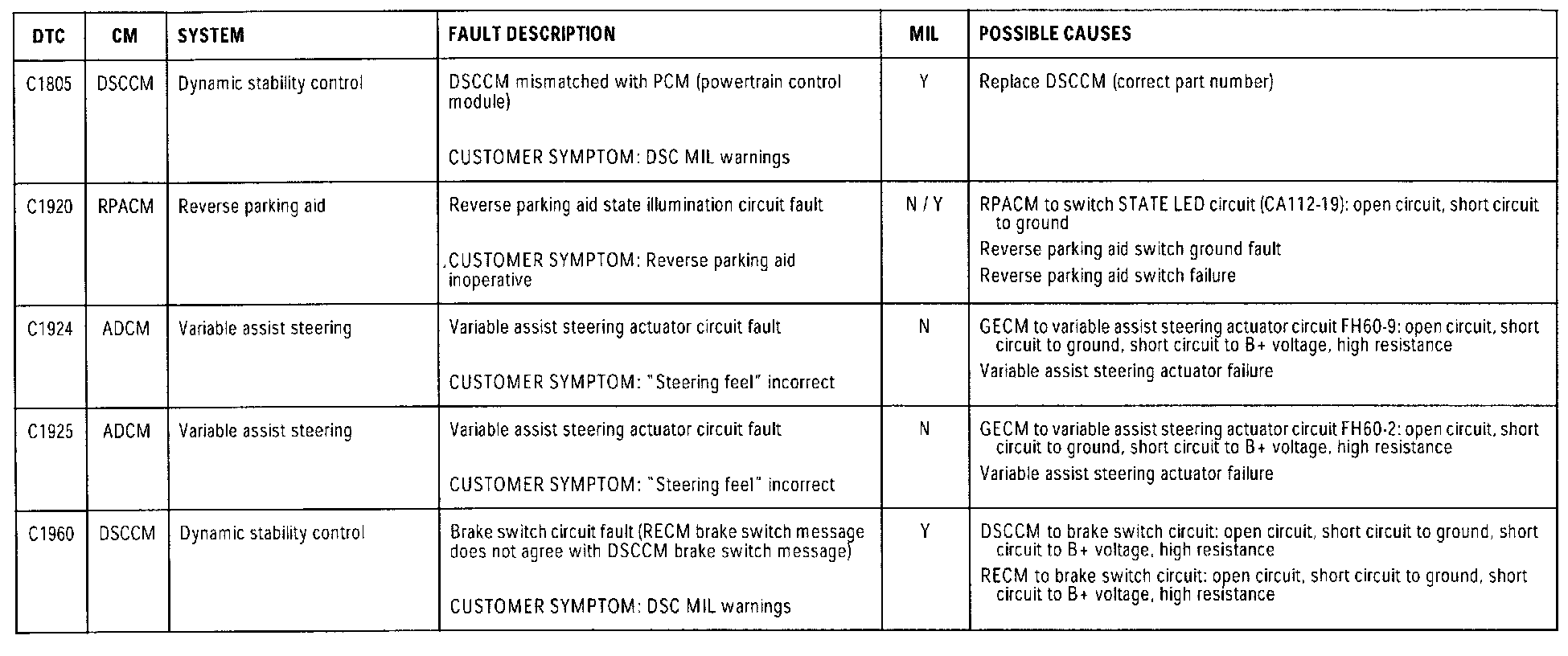

C1805 (Continued) - C1960:
