Cruise Control Switch: Service and Repair



Removal
1. Disconnect the battery ground cable.
2. Remove the driver airbag module. Service and Repair

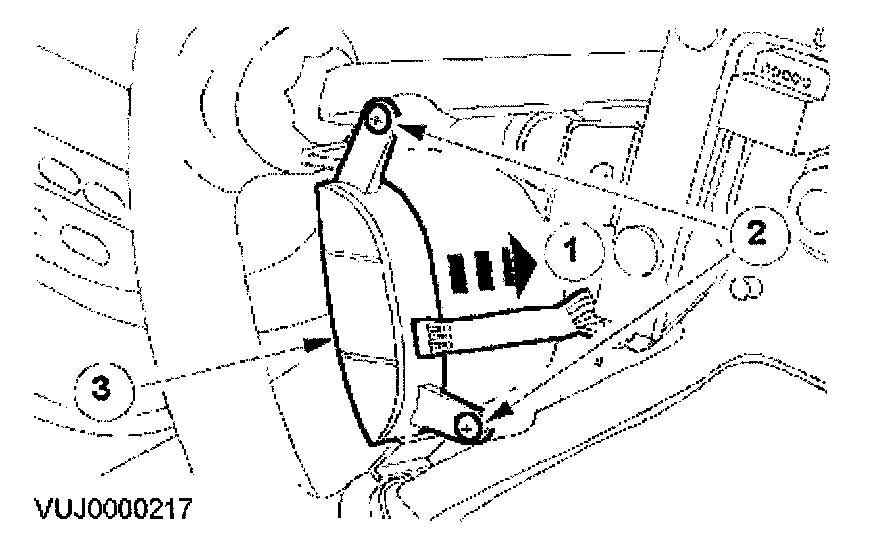

3. Remove the cruise control switch pack
1. Disconnect the electrical connector
2. Remove the two securing screws
3. Remove the cruise control switch pack.


Installation
1. To install, reverse the removal procedure.
