Blower Motor: Service and Repair

Removal
1. Disconnect the battery ground cable.





2. Remove the cover.

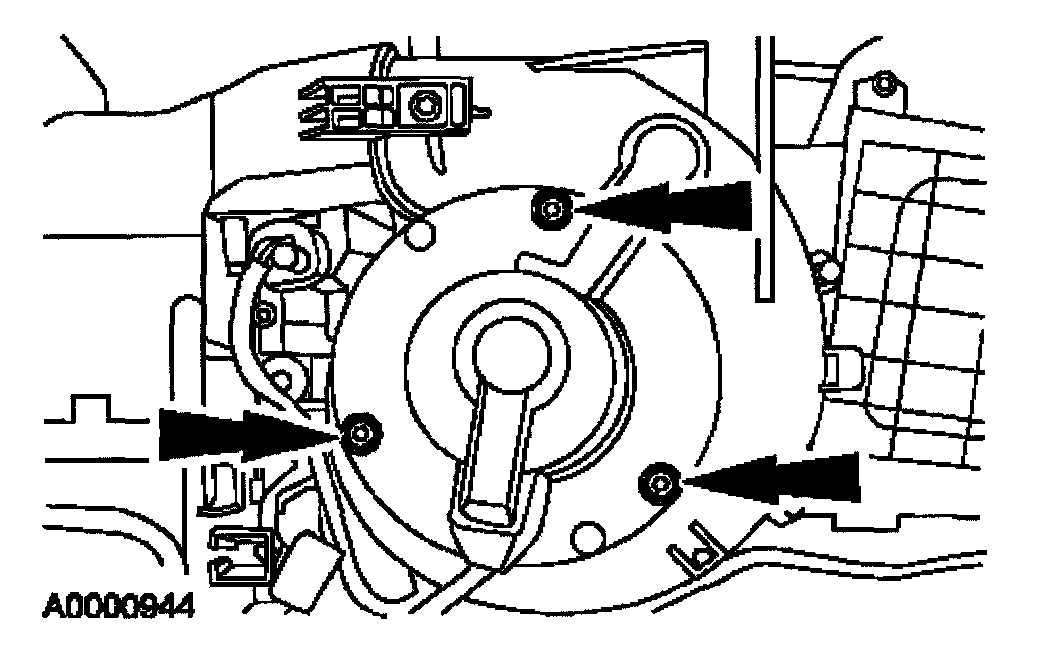

3. Remove the blower motor.

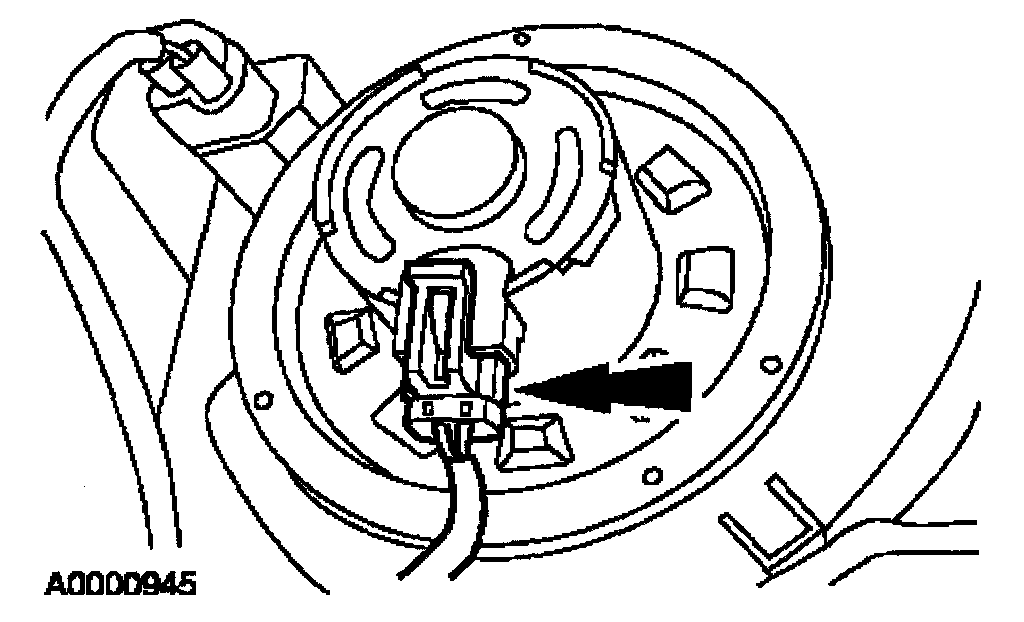

Disconnect the electrical connector.





4. Remove the wheel from the blower motor.

CAUTION: Prior to removing a wheel that is to be reused, clean any corrosion from the blower motor shaft to prevent damage to the wheel mounting diameter.

Remove the push clip.
Remove the wheel from the blower motor.


Installation
1. To install, reverse the removal procedure.
