Cabin Temperature Sensor / Switch: Service and Repair

In Car Temperature Sensor

Removal
1. Remove the ignition switch lock cylinder.

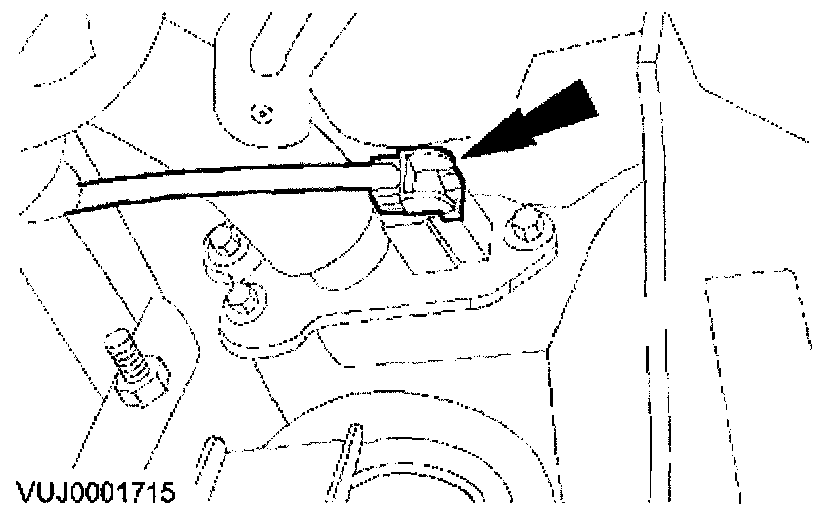

2. Disconnect the in car temperature sensor electrical connector.

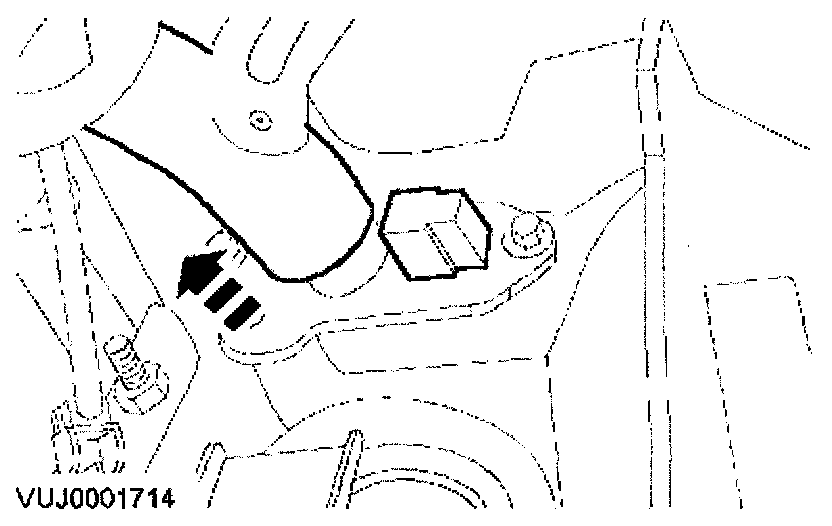

3. Disconnect the in car temperature suction pipe.

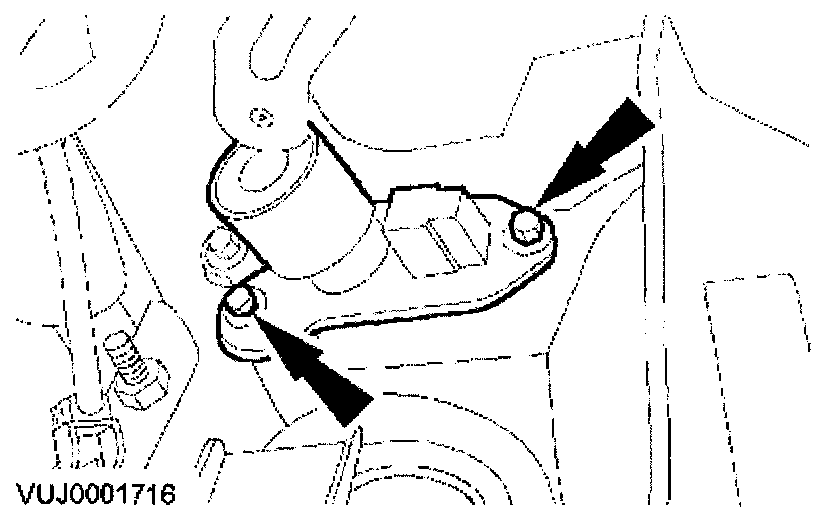

4. Remove the in car temperature sensor.


Installation
1. To install, reverse the removal procedure.
