Condenser HVAC: Service and Repair

Removal and Installation

Removal
1. Reclaim the refrigerant. Service and Repair







2. NOTE:

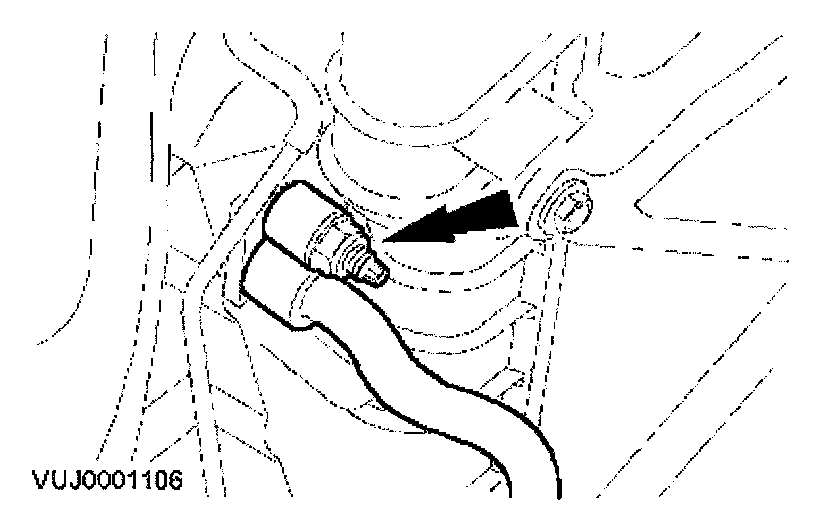

Seal the tube and the condensor with plugs

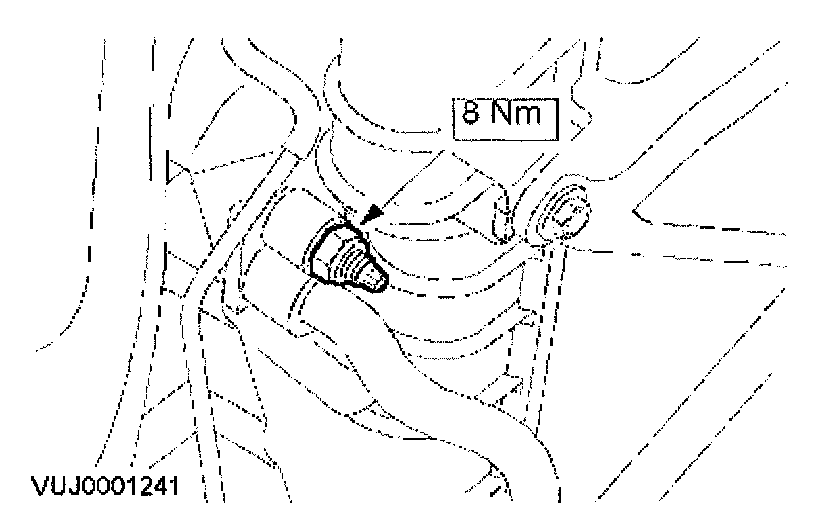

Detach the air condition tube.

3. Raise the vehicle.







4. Remove the lower radiator splash shield.







5. Remove the radiator splash shield.

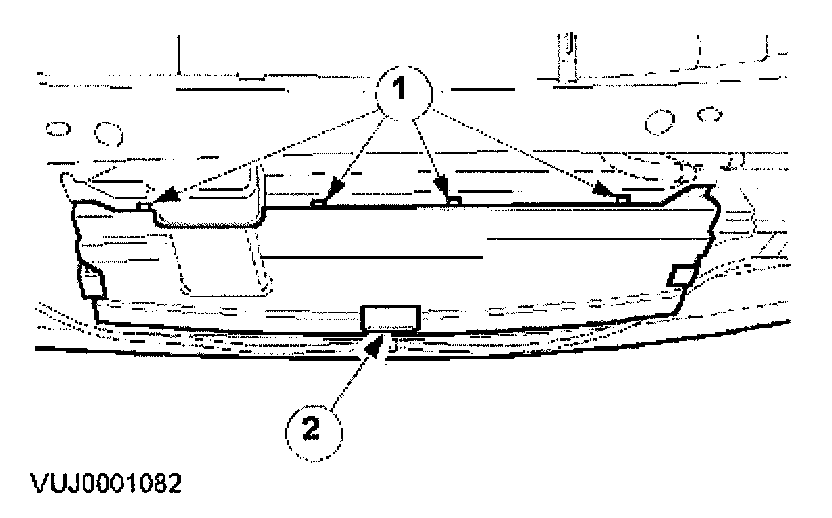

Detach the retaining clips.
Remove the radiator splash shield.







6. NOTE:
Seal the tube and the condensor with plugs.

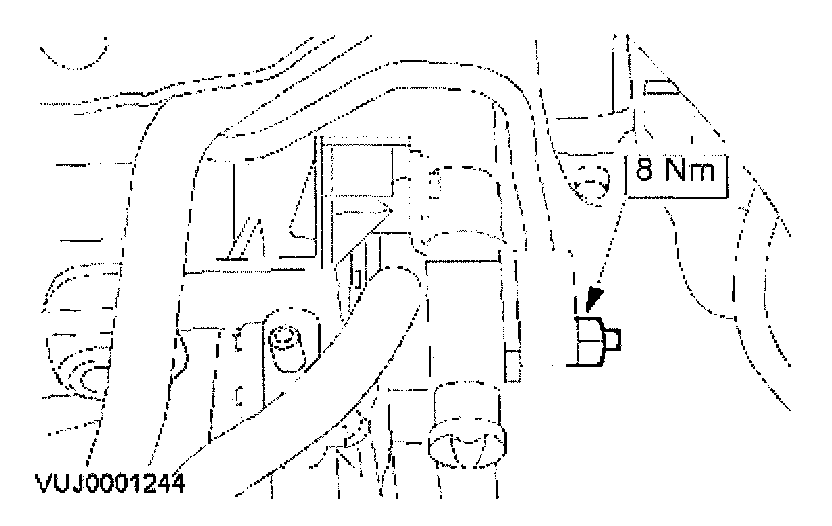

Detach the air conditioning tube.

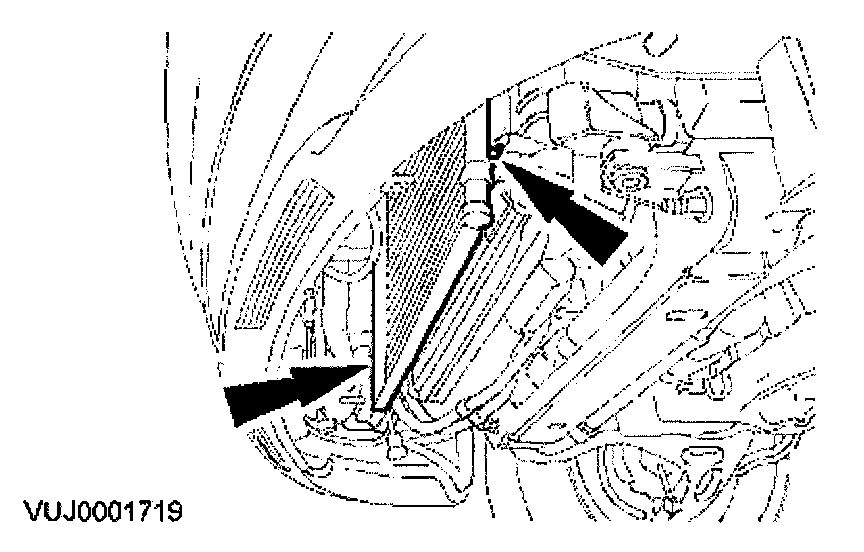

7. Remove the air conditioning condenser screws.
Remove the air conditioning condenser.

Installation







1. To install, reverse the removal procedure.
