Receiver Dryer: Service and Repair

Removal and Installation

Removal
1. Reclaim the refrigerant. Service and Repair

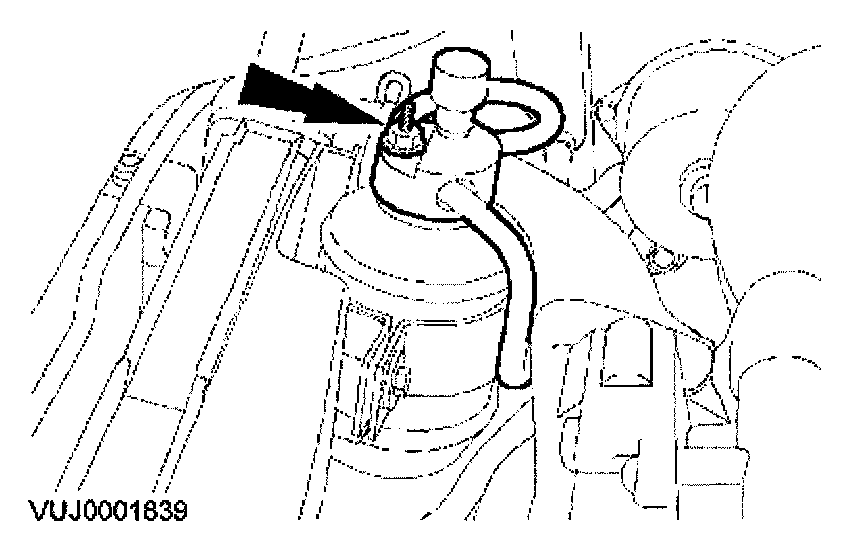

2. Detach the receiver drier supply and return tubes.

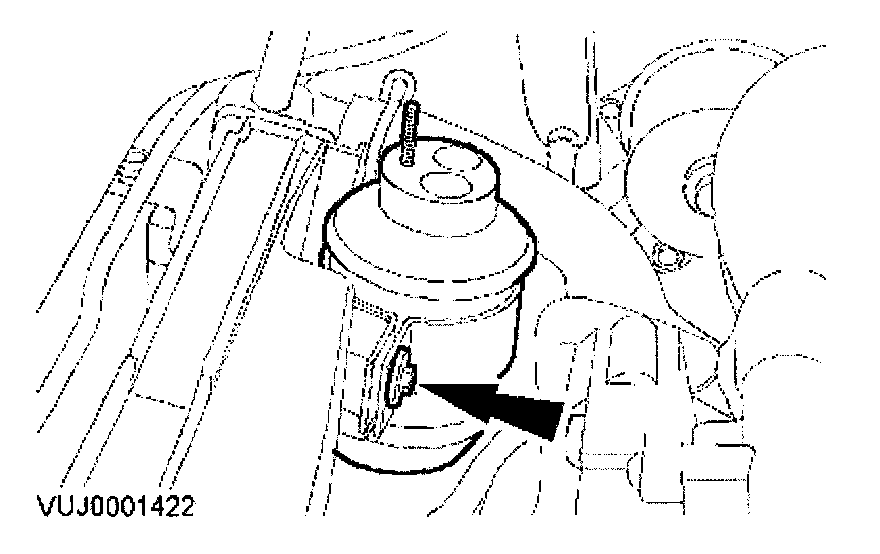

3. Remove the receiver drier.

Installation

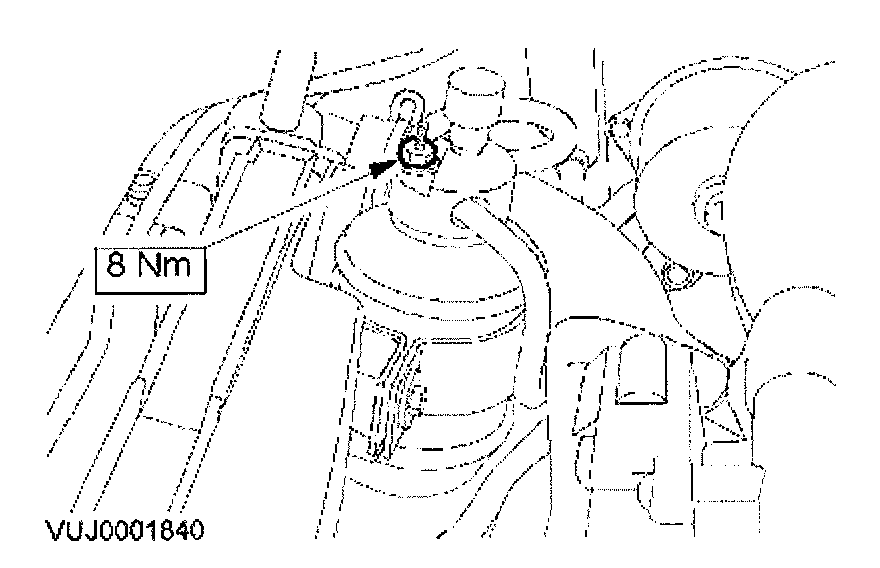

1. To install, reverse the removal procedure.
