Fog/Driving Lamp: Service and Repair

Removal

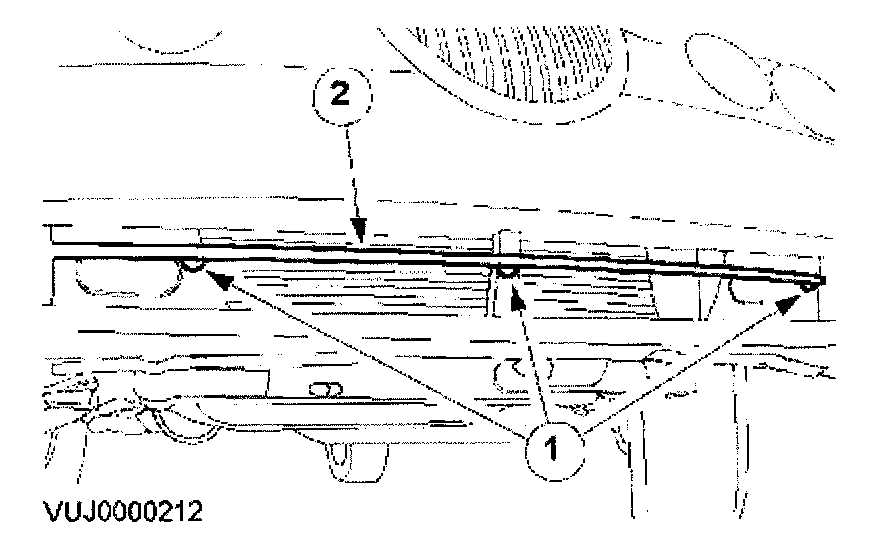

1. Remove the air splitter grille.
1. Remove the three clips.
2. Remove the air splitter grille.





2. Remove the front fog lamp anti-theft cover.

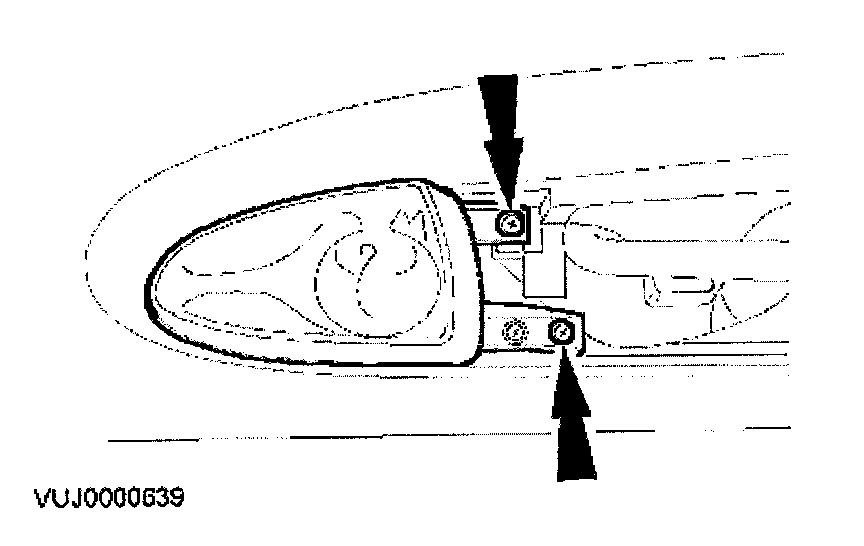

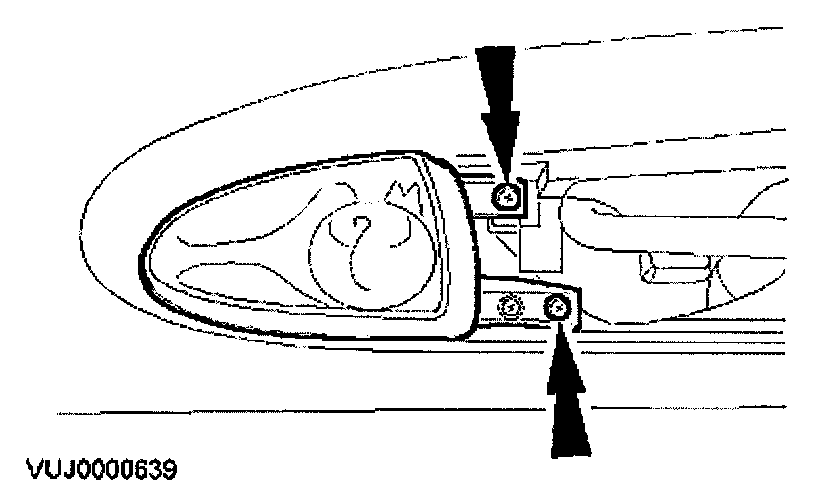

3. Remove the front fog lamp.

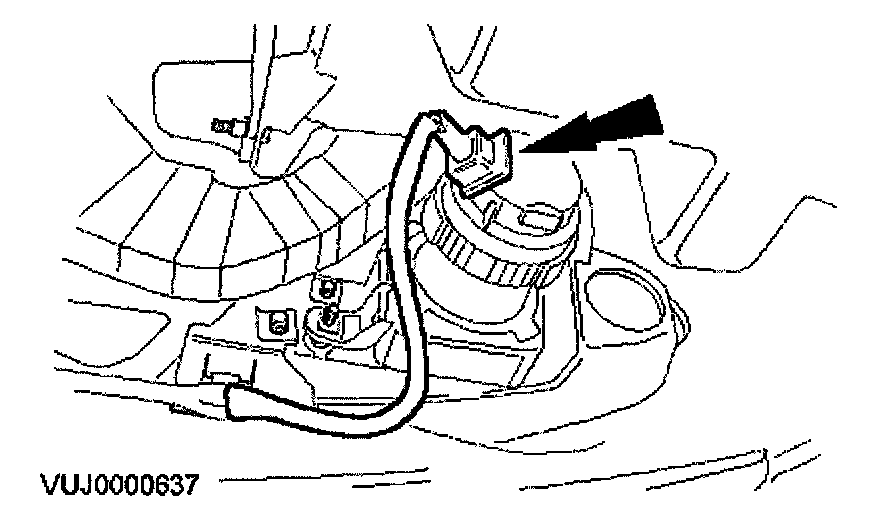

4. Disconnect the fog lamp electrical connector.


Installation
1. To install, reverse the removal procedure.
