Drive Belt: Service and Repair

Removal
1. Raise and support the vehicle. For additional information, refer to Vehicle Lifting.

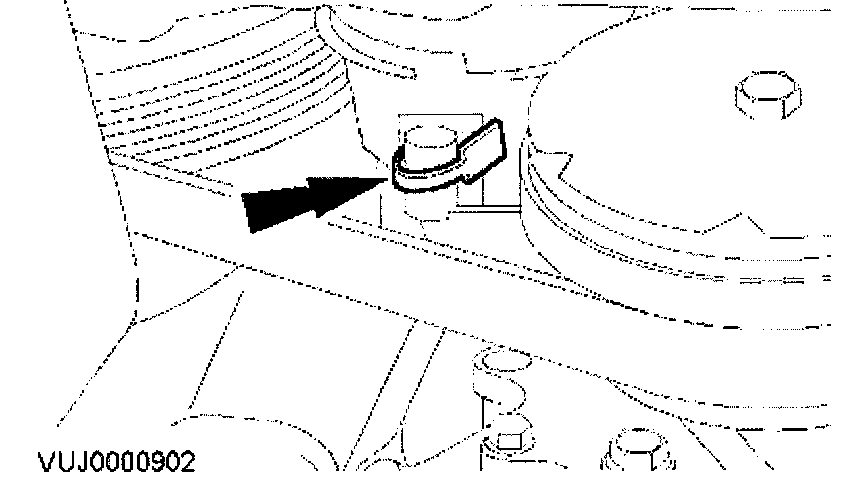

2. Remove and discard the drivebelt tensioner clip (if fitted).

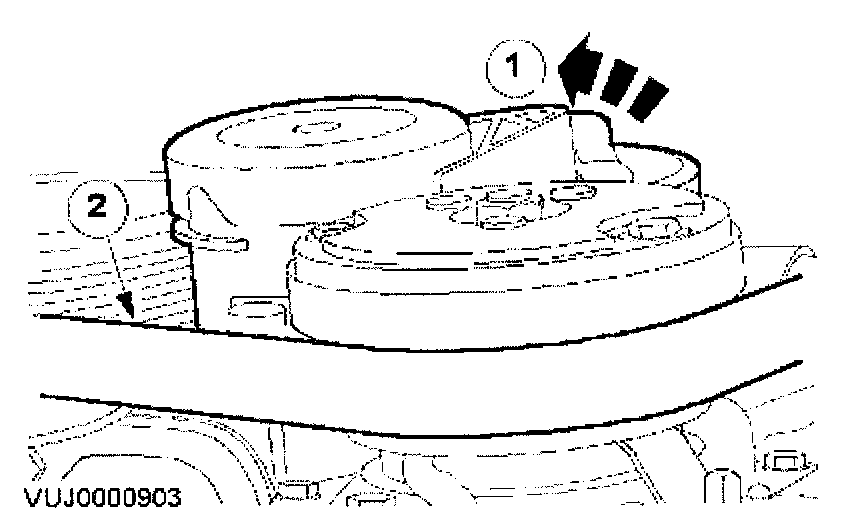

3. Remove the accessory drive belt.
Rotate the belt tensioner counter-clockwise.
^ Use a 3/8 inch square drive bar to rotate the belt tensioner.
Remove the belt.

Installation
1. To install, reverse the removal procedure.
