Fuse Block: Application and ID

Fuse Details

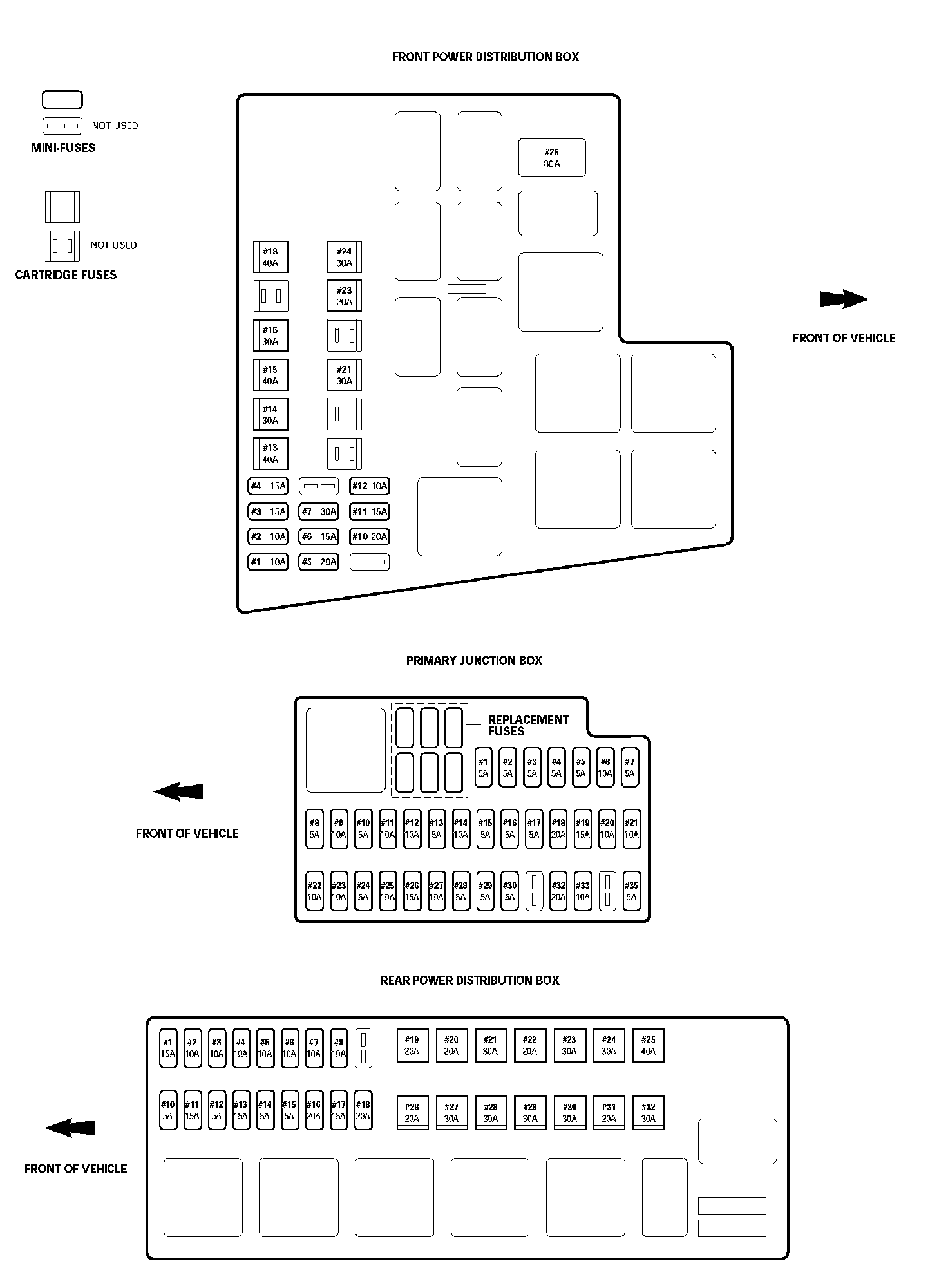

Fuse Identification and Location:

Engine compartment fuse box - fuses

Fuse Fuse Rating Colour Circuit
No. Type (amps)
F1 Mini 10A Red Air conditioning clutch, (auxilary water pump - V8 only).
F2 Mini 10A Red Windshield washer pump.
F3 Mini 15A Blue Fog lamp.
F4 Mini 15A Blue Horns.
F5 Mini 20A Yellow Fuel injection.
F6 Mini 15A Blue Transmission solenoid.
F7 Not used.
F8 Not used.
F9 Not used.
F10 Not used.
F11 Mini 15A Blue Heated oxygen sensors.
F12 Mini 10A Red Coil on plugs.
F13 Cartridge 30A Pink Heated wiper park OR
Cartridge 40A Green RH heated windshield
F14 Cartridge 30A Pink ABS motor.
F15 Cartridge 40A Green LH heated windshield
F16 Cartridge 30A Pink Blower motor.
F17 Not used.
F18 Cartridge 40A Green Powertrain Control Module (PCM).
F19 Not used.
F20 Not used.
F21 Cartridge 30A Pink Starter solenoid.
F22 Cartridge 30A Pink ABS motor.
F23 Cartridge 20A Blue Wiper motor.
F24 Cartridge 30A Pink Headlamp washer pump.
F25 80A Cooling fan motor.


Passenger compartment fuse box - fuses

Fuse Fuse Rating Colour Circuit
No. Type (amps)
F1 Mini 5A Brown Starter relay coil via Park/Neutral switch.
F2 Mini 5A Brown Radio
F3 Mini 5A Brown ABS/Dynamic stability control module, ACC module.
F4 Mini 5A Brown Powertrain Control Module (PCM) relay coil, instrument cluster, fuel pump relay, Rear Electronic Module (REM), transit relay.
F5 Mini 10A Red Autolamp sensor, T/A switch, overdrive cancel switch, heated seat modules, brake shift interlock.
F6 Mini 10A Red OBDII.
F7 Mini 5A Brown Driver's Door Module (DDM), Driver's Seat Module (DSM), Powertrain Control Module (PCM), Passive Anti-Theft System (PATS) LED, security horn, power mirror.
F8 Mini 5A Brown Right front - direction indicators, side repeaters, side markers, parking lights.
F9 Mini 10A Red Right front - low beam headlamp.
F10 Mini 5A Brown Left front - direction indicators, side repeaters, side markers, parking lights.
F11 Mini 10A Red Left front - main beam headlamp.
F12 Mini 10A Red Headlamp levelling, ABS/Dynamic Stability Control (DSC module.
F13 Mini 5A Brown Instrument cluster.
F14 Mini 10A Red Restraints Control Module (Airbag), Dual Automatic Temperature Control Module.
F15 Mini 5A Brown Adaptive damping module.
F16 Mini 5A Brown Heated seat switch module, electrochromic mirror, rain sensor.
F17 Mini 5A Brown Restraints Control Module (Airbag) and alternator warning lamp.
F18 Mini 20A Yellow Radio, cellular phone, navigation.
F19 Mini 15A Blue Steering column motors.
F20 Mini 10A Red Generic Electronic Module (GEM), air conditioning, instrument cluster.
F21 Mini 10A Red Power folding mirror, sunblind.
F22 Mini 10A Red Driver's door mirror.
F23 Mini 10A Red Right front - main beam headlamp.
F24 Mini 5A Brown Passive Anti-Theft System (PATS).
F25 Mini 10A Red Left front - low beam headlamp.
F26 Not used.
F27 Mini 10A Red Navigation display, radio, phone, navigation module, traffic master.
F28 Mini 5A Brown Security horn.
F29 Mini 5A Brown Voice control, reverse park aid, trailer tow ignition sense, Vehicle Emergency Messaging Sytems (VEMS), Generic Electronic Module (GEM).
F30 Mini 5A Brown Generic Electronic Module (GEM).
F31 Not used.
F32 Mini 20A Yellow Accessory socket, cigar lighter.
F33 Mini 10A Red Generic Electronic Module (GEM).
F34 Not used.
F35 Mini 5A Brown Stop lamp switch.


Luggage compartment fuse box - fuses

Fuse Fuse Rating Colour Circuit
No. Type (amps)
F1 Mini 15A Blue Luggage compartment lid release.
F2 Mini 10A Red Right rear - reverse lamp, direction indicator, side markers, fog lamps.
F3 Mini 10A Red Left stop lamp.
F4 Mini 10A Red Fuel flap release.
F5 Mini 10A Red Courtesy and map lamps.
F6 Mini 10A Red Left rear - reverse lamp, direction indicator, side markers, fog lamps.
F7 Mini 10A Red Right stop lamp.
F8 Mini 10A Red High mounted stop light.
F9 Mini 5A Brown Heated mirror.
F10 Mini 5A Brown Traffic master.
F11 Mini 15A Blue Seat heaters.
F12 Mini 5A Brown Transit relay.
F13 Mini 15A Blue Adaptive damping module.
F14 Mini 5A Brown Cellular phone, CD changer, Vehicle Emergency Messaging Sytems (VEMS).
F15 Mini 5A Brown Alternator sensor.
F16 Mini 20A Yellow Sunroof.
F17 Mini 15A Blue Fuel pump.
F18 Mini 20A Yellow Subwoofer amplifier.
F19 Cartridge 20A Blue Rear Electronic Module (REM) - left rear window.
F20 Cartridge 30A Pink Driver's Door Module (DDM) - driver's window.
F21 Cartridge 30A Pink Driver's lumbar.
F22 Cartridge 20A Blue Ignition.
F23 Cartridge 30A Pink Switched system power 4.
F24 Cartridge 30A Pink Switched system power 3.
F25 Cartridge 40A Green Primary Junction Box (PJB).
F26 Cartridge 30A Pink Generic Electronic Module (GEM) - passenger window.
F27 Cartridge 30A Pink Switched system power 1.
F28 Cartridge 30A Pink Passenger lumbar.
F29 Cartridge 30A Pink Rear screen defrost.
F30 Cartridge 20A Blue Rear Electronic Module (REM) - right rear window.
F31 Not used.
F32 Cartridge 30A Pink Switched system power 2.
