A/T - Difficult to Shift Out of PARK: Overview

S307-16

S-TYPE

DATE: 08/04
Amended: 05/06

MODEL:
2000-02 MY
S-TYPE

VIN:
L00001-M44997

5 Speed Transmission - Selector Lever Difficult To Disengage From Park - Internal Control Lever Profile - Repair Procedure

Remove and destroy Bulletin S307-16, amended 04/05. Replace with this Bulletin.

Revisions are shown with asterisks and black bars.

Issue:

Some 2000-02 MY S-TYPE vehicles may exhibit difficulties in disengaging the selector lever from Park, particularly when the vehicle is parked on an incline. *This can occur due to excess wear of the control lever profile.* A new transmission manual control lever has been released to address this concern.

Action:

In case of a verified complaint of the above condition on a 2000-02 MY S-TYPE, follow the workshop procedure outlined.

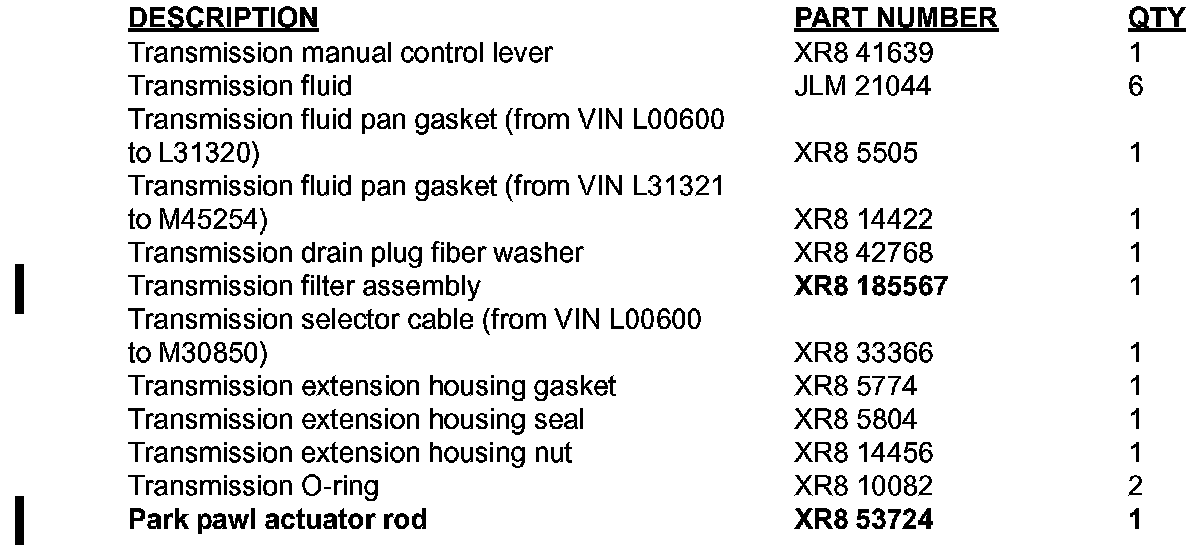

Parts Information

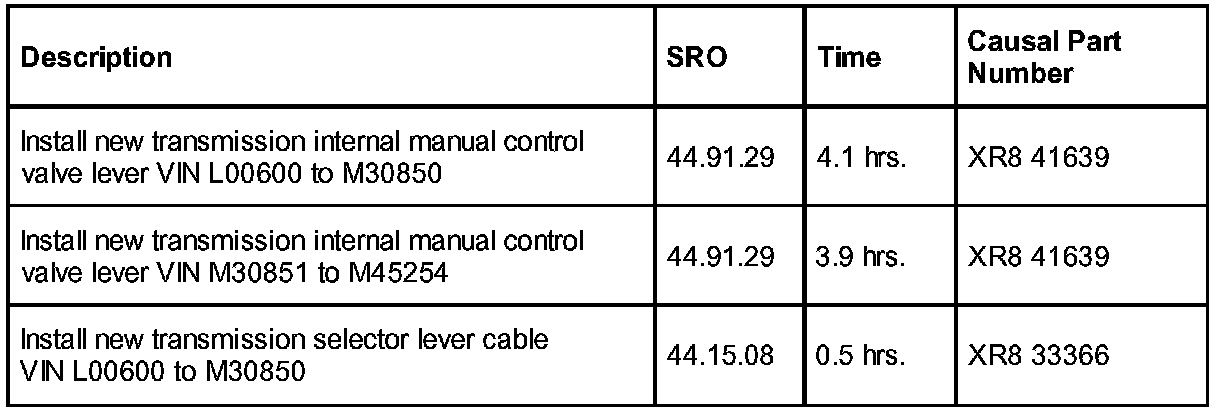

Warranty Information:





Warranty claims should be submitted quoting the information found in the table.

This will result in payment of the stated time and, where applicable parts/miscellaneous expense codes as listed.
