Potential Areas of Concern

The following lists potential areas of concern around the vehicle:

Front Door

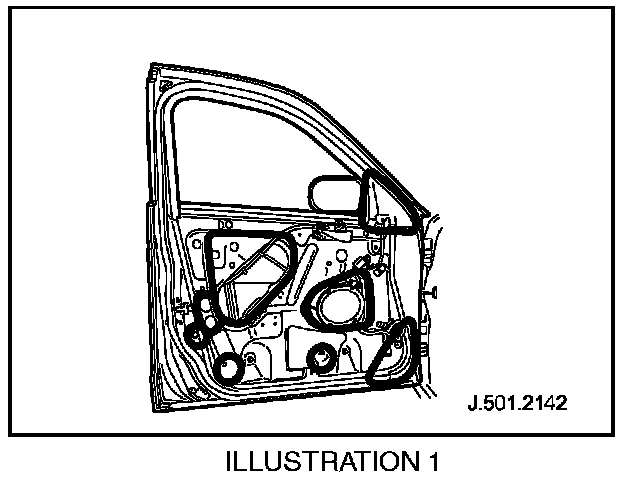

1. The following illustrations depict possible water leak points around the front door area (Illustration 1).

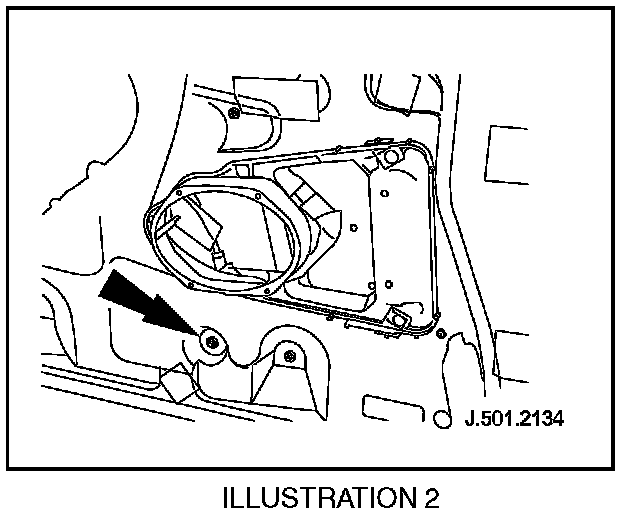

2. Fixing nut (Illustration 2).





3. Door casing fir tree clips. (Illustration 3)





4. Door sealing patches (Illustration 4).

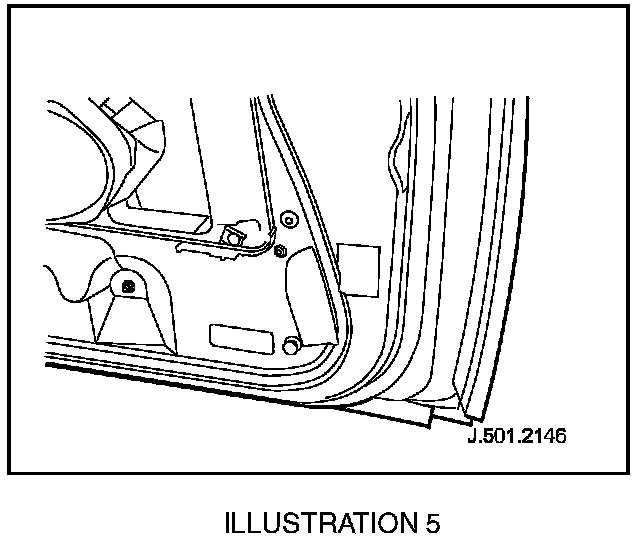

5. Body sealing patch (Illustration 5).





6. Door casing water shedder (Illustration 6).

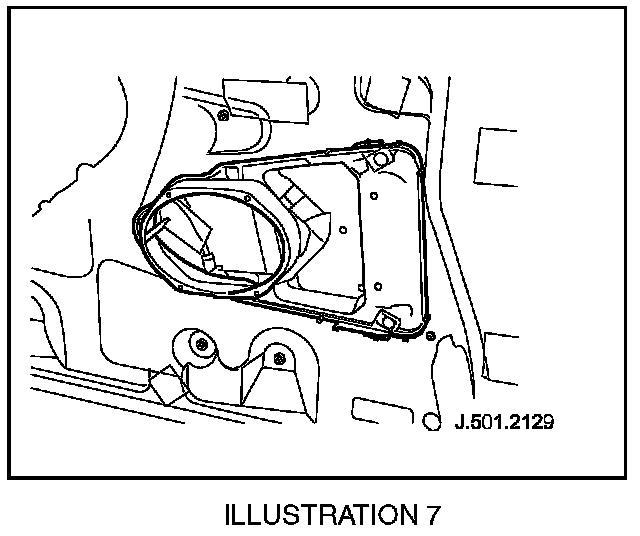

7. Door speaker module (Illustration 7).

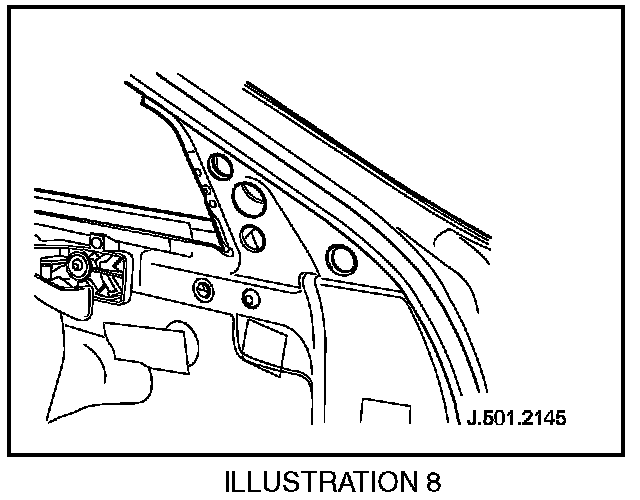

8. Door cheater plate area (Illustration 8).

REAR DOOR





1. The following illustrations depict possible water leak points around the rear door area (Illustration 9).

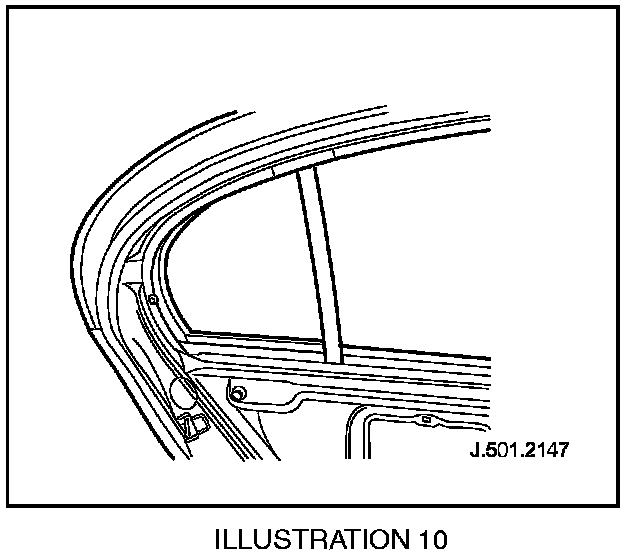

2. Door latch: water ingress via sixth light (Illustration 10).





3. Door casing fir tree clip and fixing nut (Illustration 11).

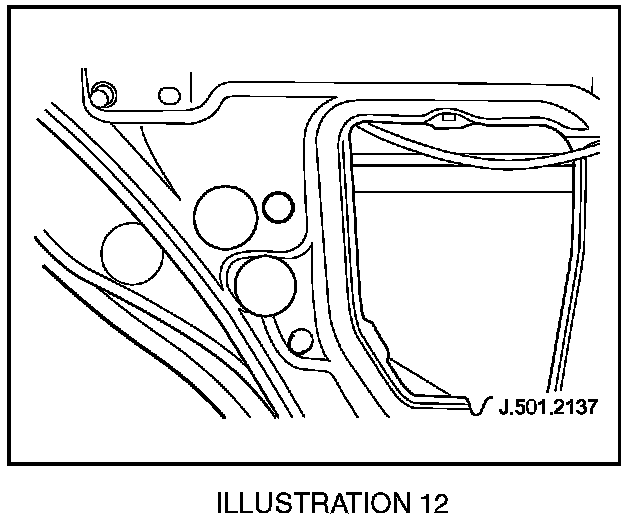

4. Door sealing patches. (Illustration 12).





5. Water shedder (Illustration 13).





6. Door speaker module (Illustration 14).

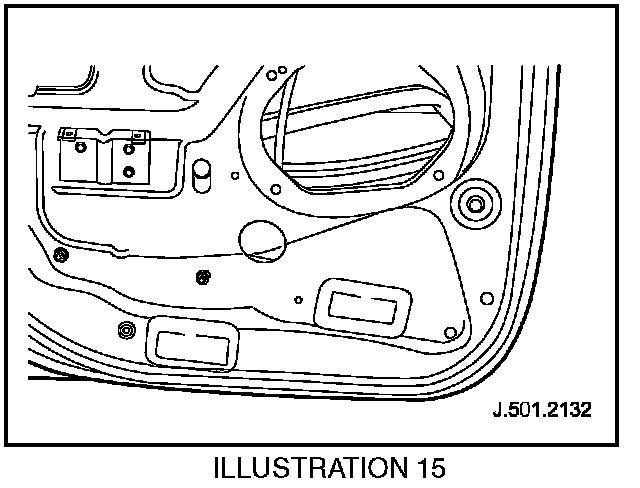

7. Body sealing patch (Illustration 15).

Luggage Compartment





1. The following illustrations depict possible water leak points around the luggage compartment (Illustration 16).

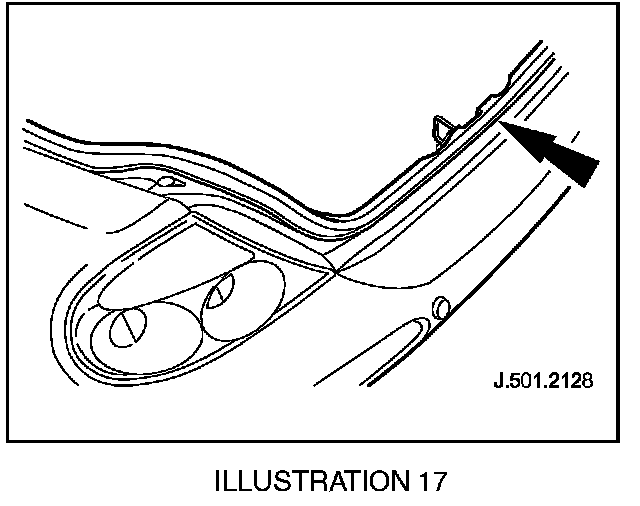

2. Luggage compartment seal (Illustration 17).

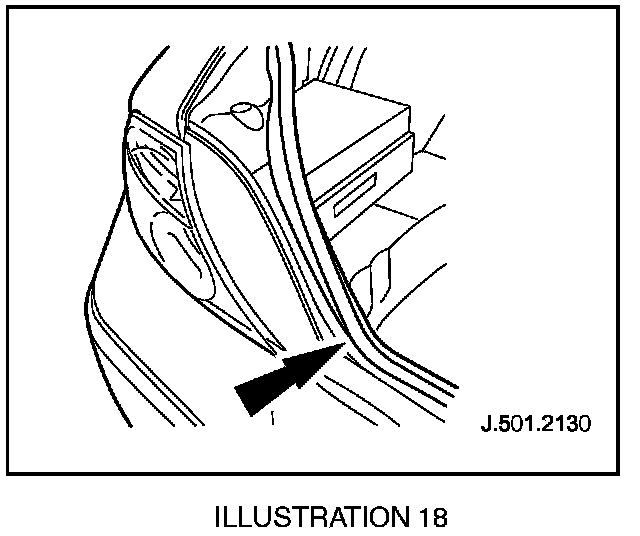

3. Tail lamp: fender point (Illustration 18).





4. Luggage compartment channel seams (Illustration 19).





5. Luggage compartment seal and flange, and rear lamp seal (Illustration 20).

Luggage Compartment - Exterior

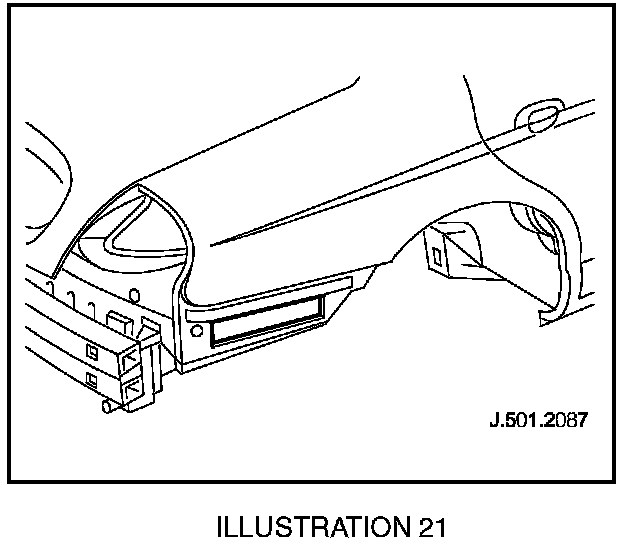

1. Luggage compartment air ducts: water ingress (Illustration 21).
