Cell Phone - Diagnostic Flow Charts and Connector Checks

S419-09

S-TYPE

DATE 02/02

MODEL
2000-02 MY
S-TYPE

VIN

Digital Telephone System - Diagnostic Flowcharts - Harness And Connector Checks

Issue:

This Technical Bulletin is designed to assist in the diagnosis of Digital In-car Telephone Concerns. Each of the possible concerns has its own particular diagnostic flowchart and must be followed in order to remedy the concern.

Action:

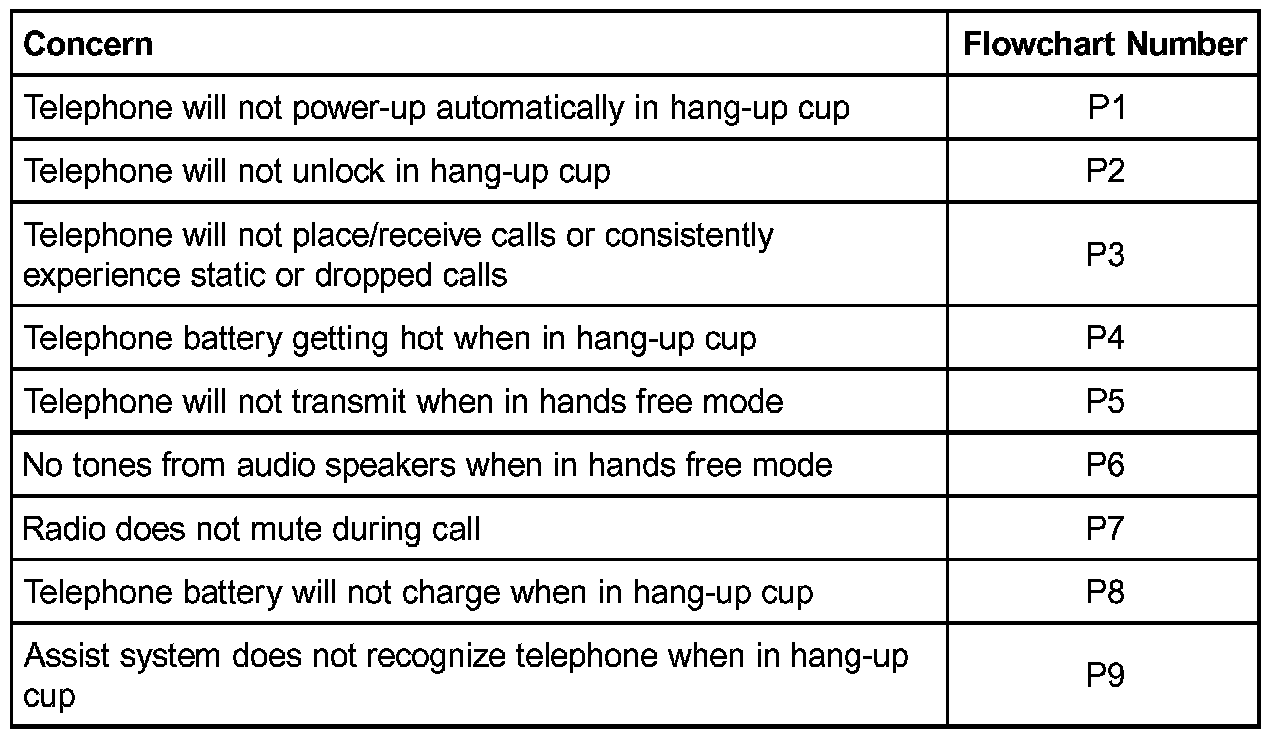

Refer to the following chart to find the appropriate flowchart for the customer complaint.





INDEX

FLOWCHARTS TO AID IN THE DIAGNOSIS OF S-TYPE TELEPHONE CONCERNS





P-1

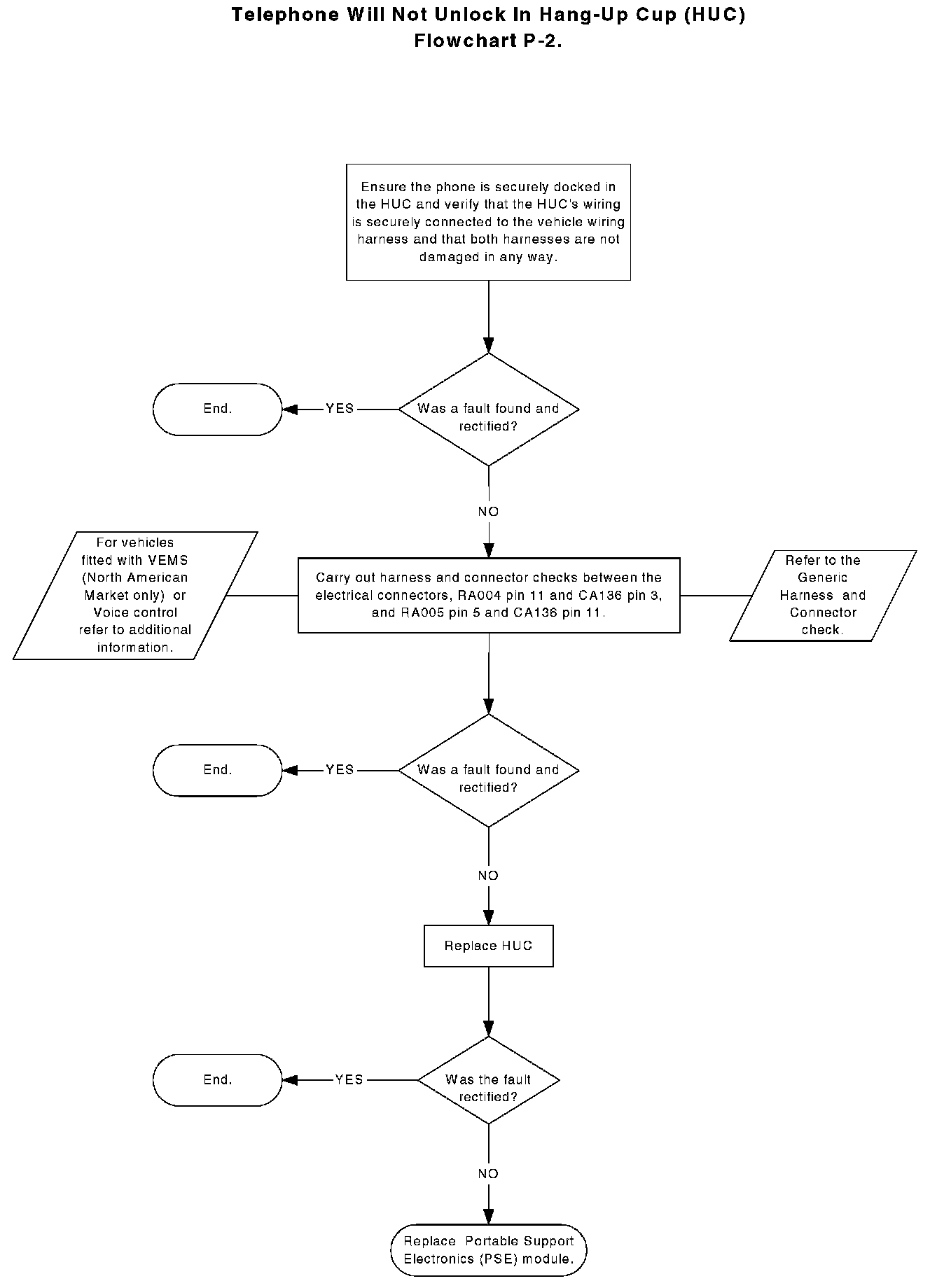

P-2

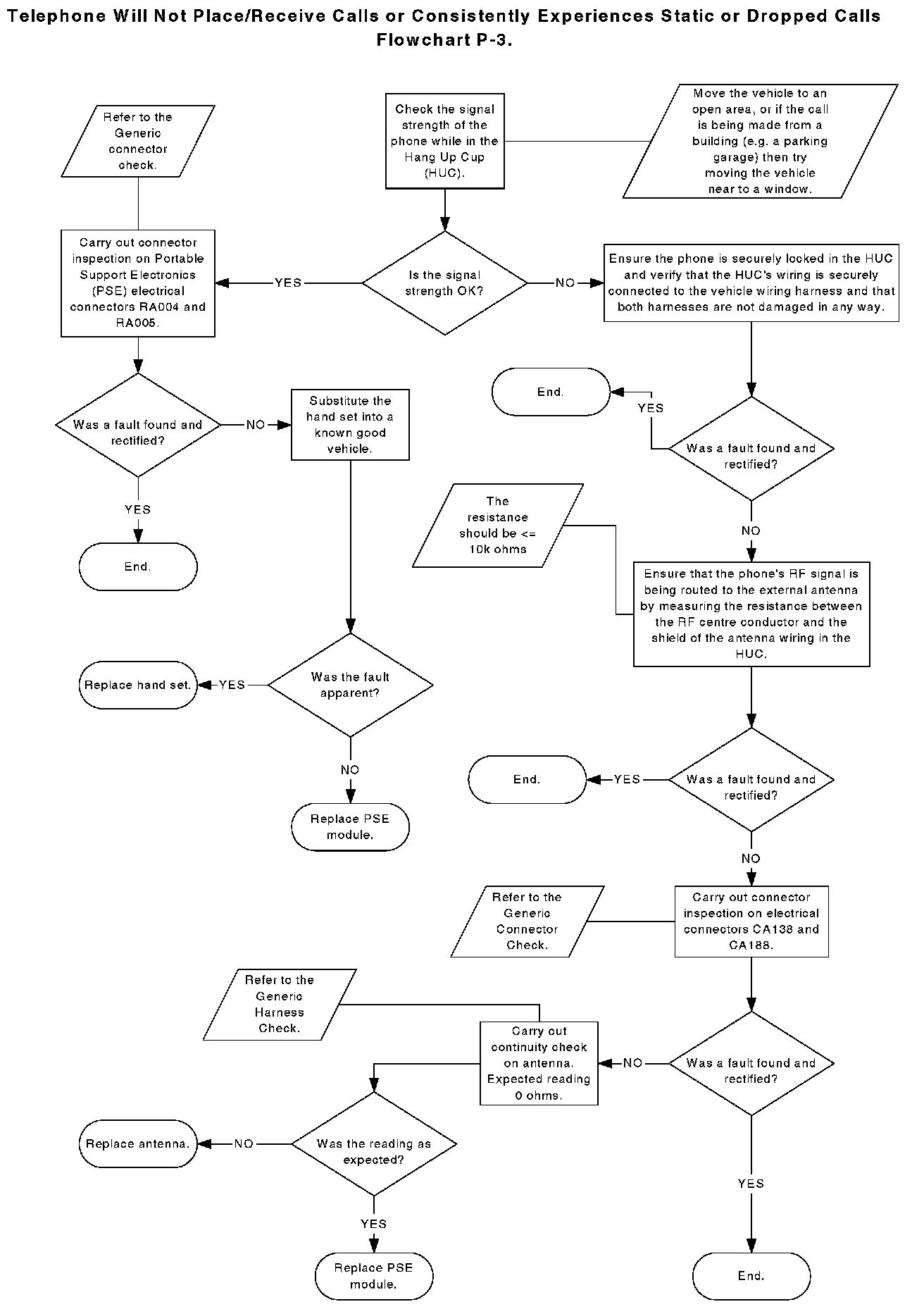

P-3

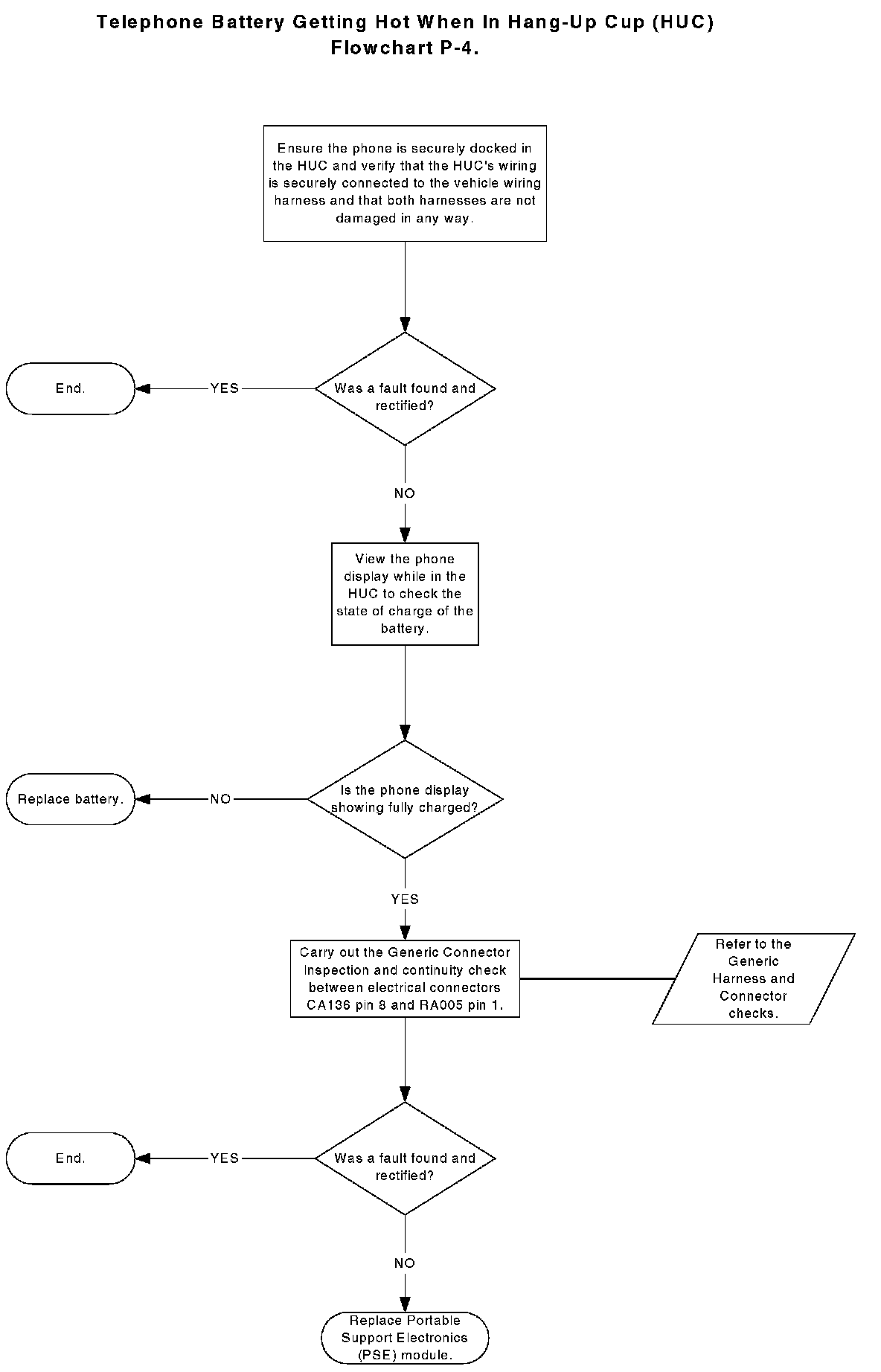

P-4








P-5





P-6

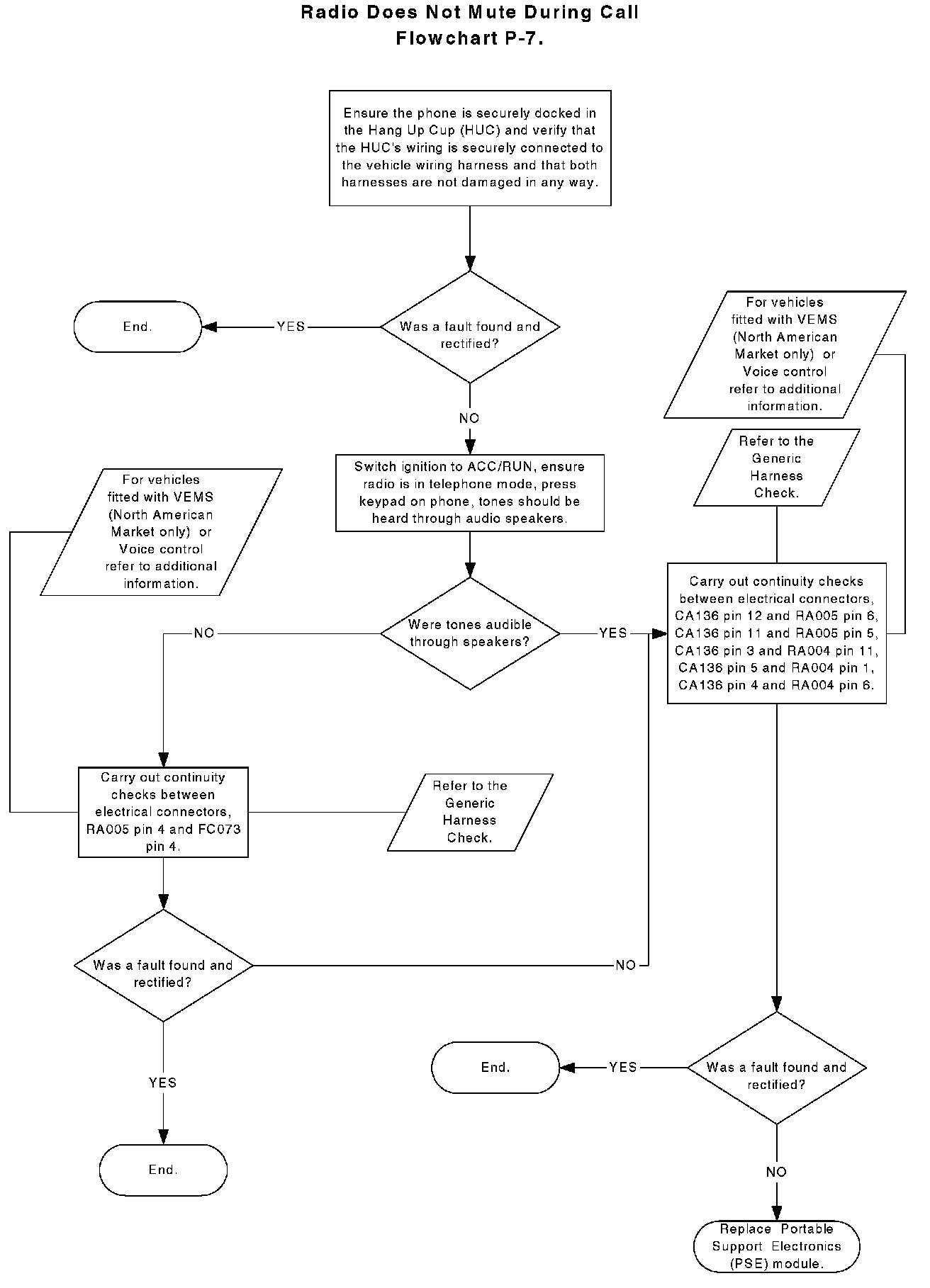

P-7








P-8

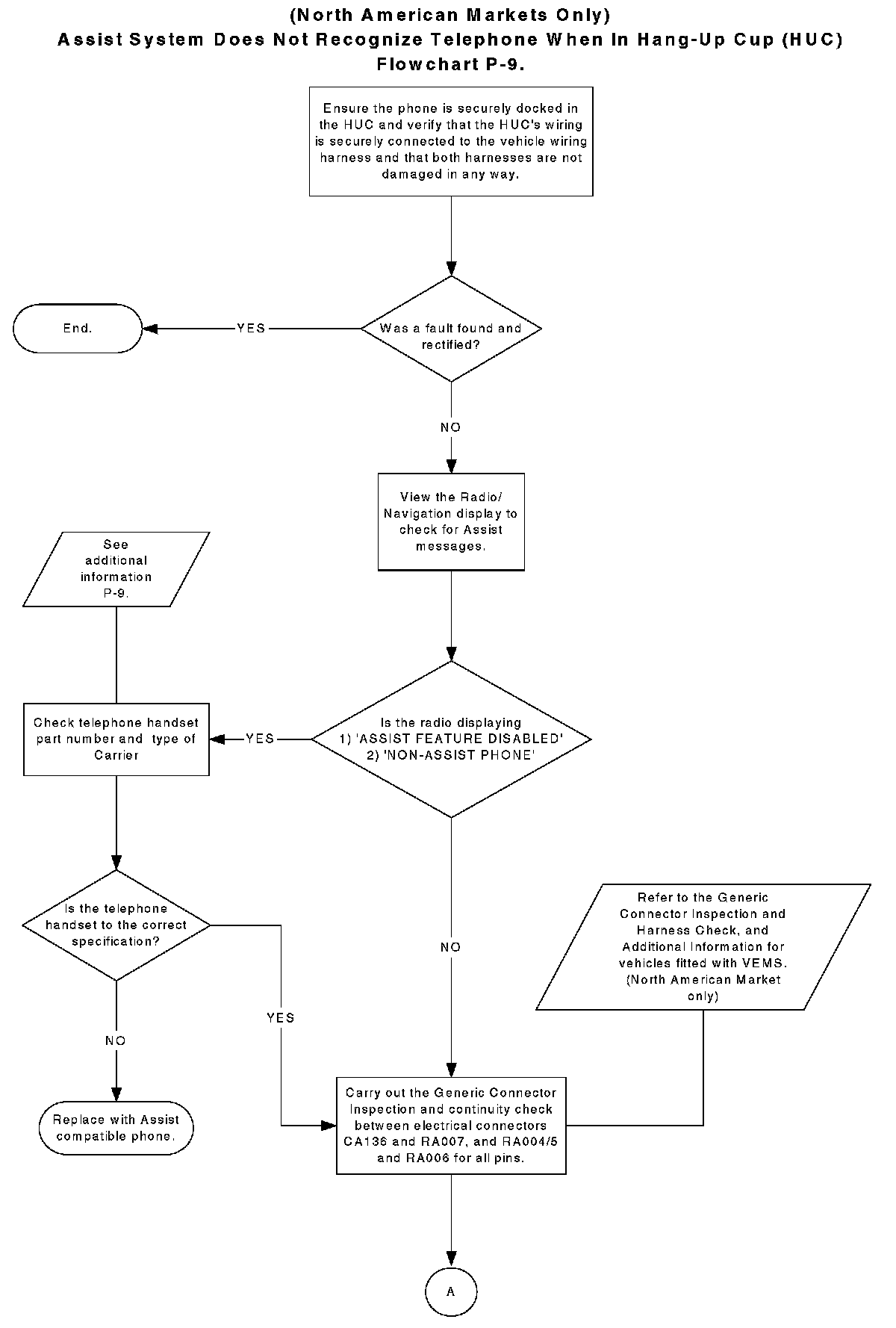

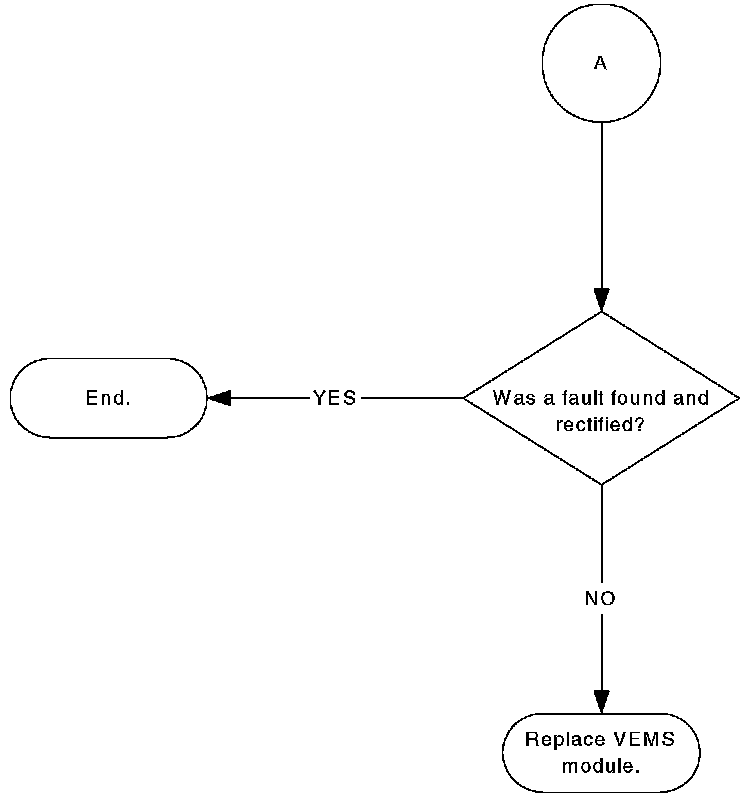

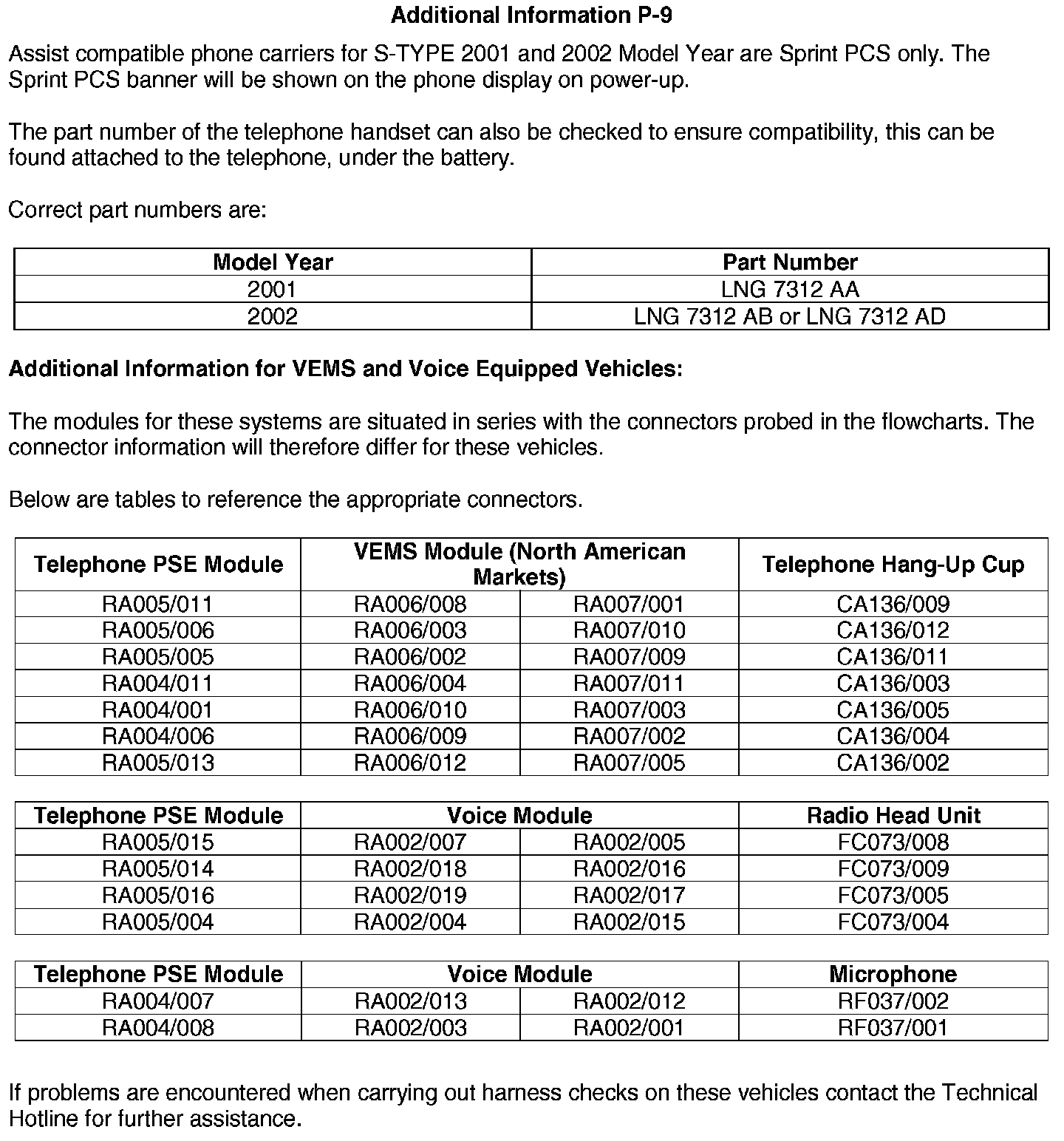

P-9

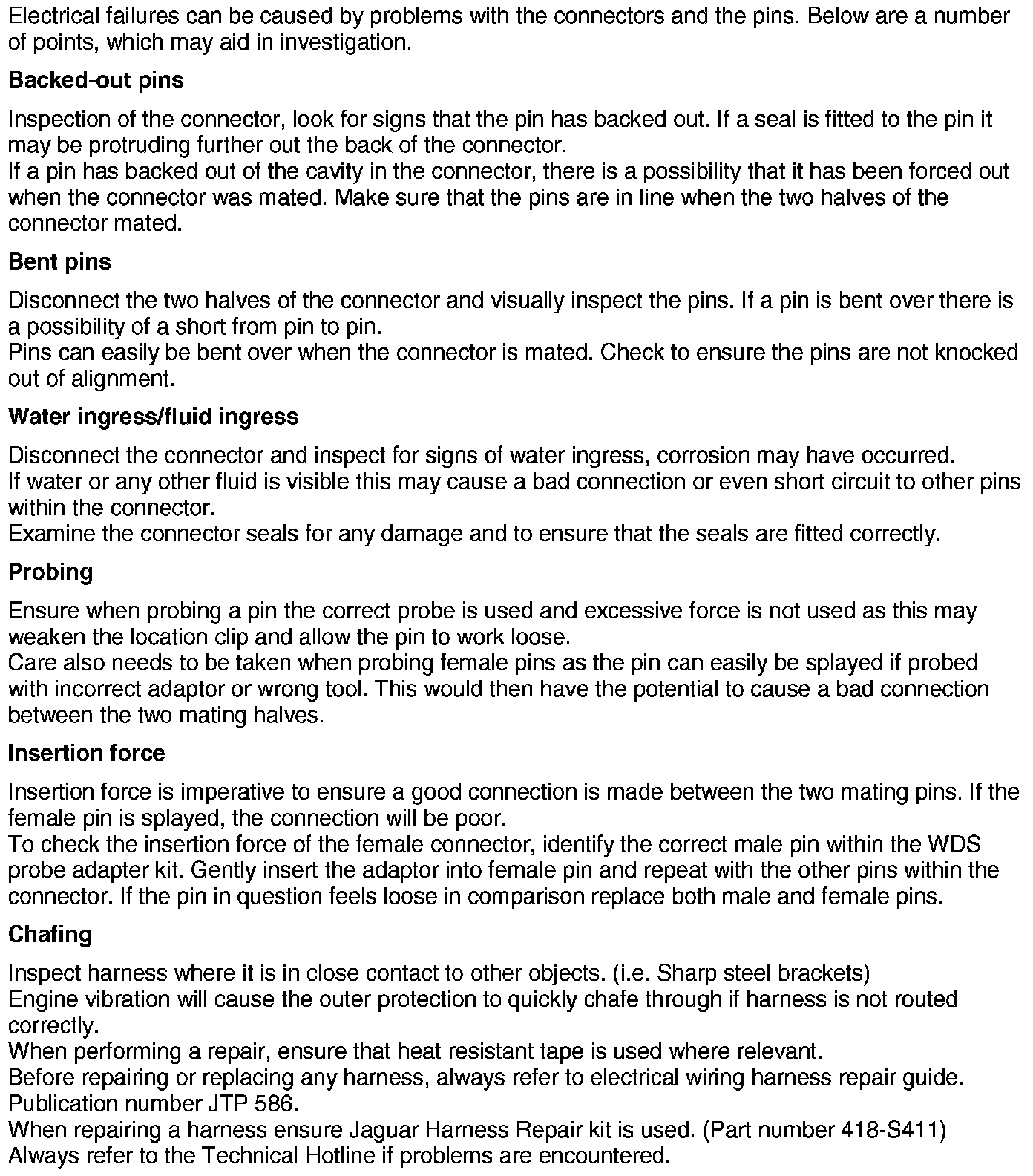

Generic Connector Inspection





Generic Harness Check
