Flex Plate: Service and Repair

Removal
1. Remove the transmission. For additional information, refer to Automatic Transaxle/Transmission.

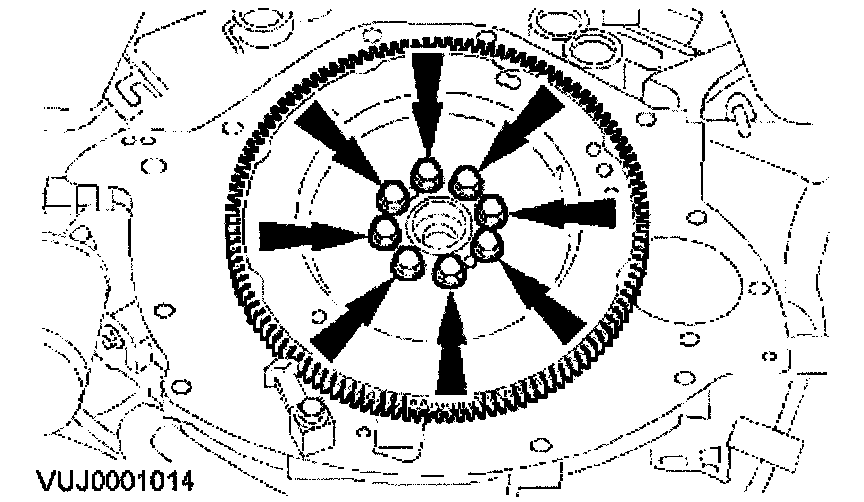

2. Remove the flywheel.
Prevent the engine from rotating.

Installation

1. NOTE: The flywheel will only locate in one position.

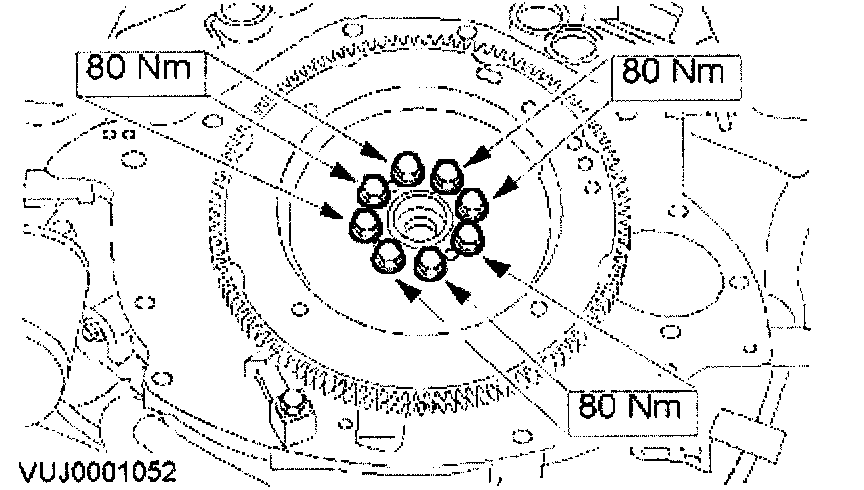

Install the flywheel.
Prevent the engine from rotating.
Tighten the bolts working diagonally.
2. Install the transmission.
