Headlamp Washer Pump: Service and Repair

Removal
1. Raise and support the vehicle. Service and Repair





2. Remove the radiator splash shield.

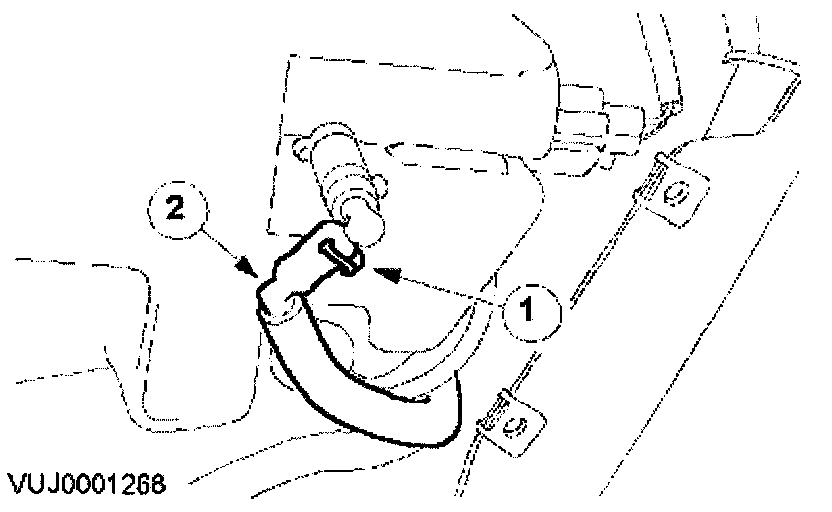

3. Disconnect the headlamp washer supply hose.
Remove the headlamp washer supply hose clip.
Disconnect the headlamp washer supply hose.

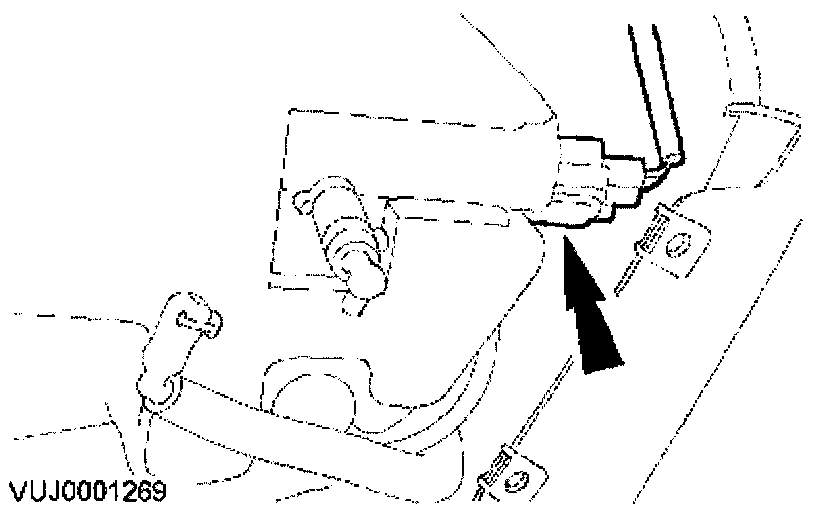

4. Disconnect the headlamp washer pump electrical connector.

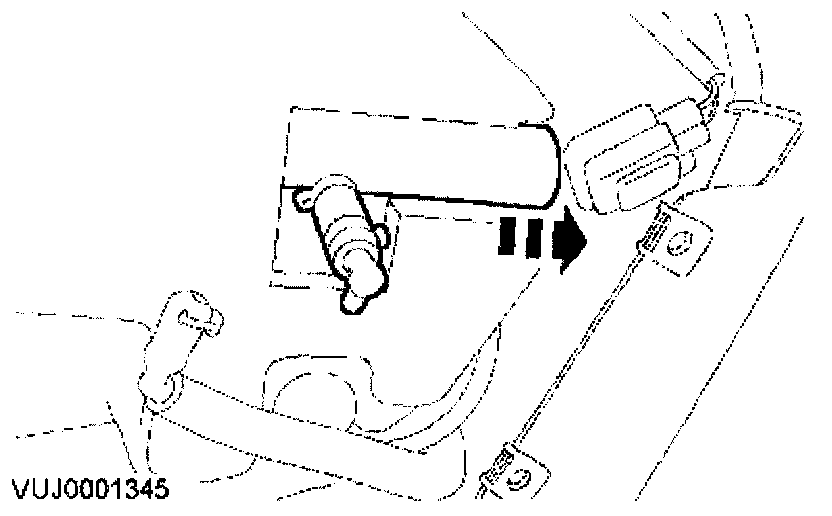

5. Remove the headlamp washer pump.


Installation
1. To install, reverse the removal procedure.
