Rain Sensor: Service and Repair
Removal
1.
Remove the interior rear view mirror.
Service and Repair
2.

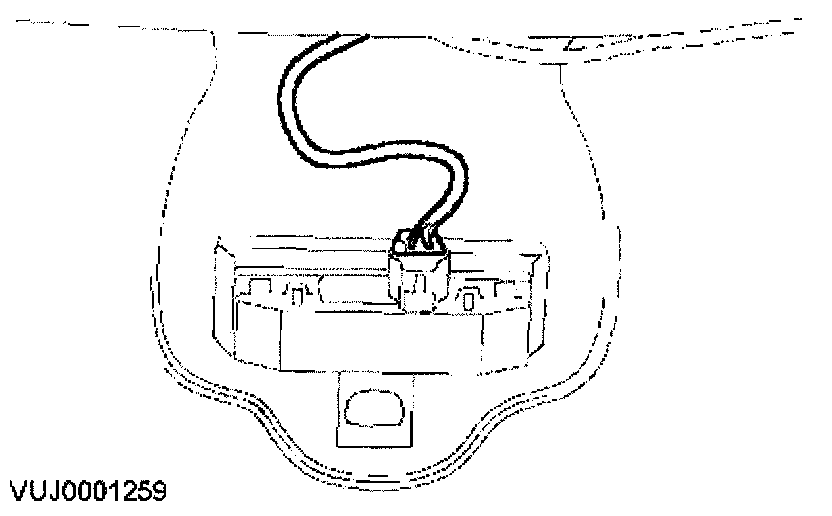

Disconnect the moisture sensor electrical connector.
3.
Remove the moisture sensor.
Installation
1.
To install, reverse the removal procedure.
