Windshield Washer Reservoir: Service and Repair

Removal
1. Raise and support the vehicle. Service and Repair

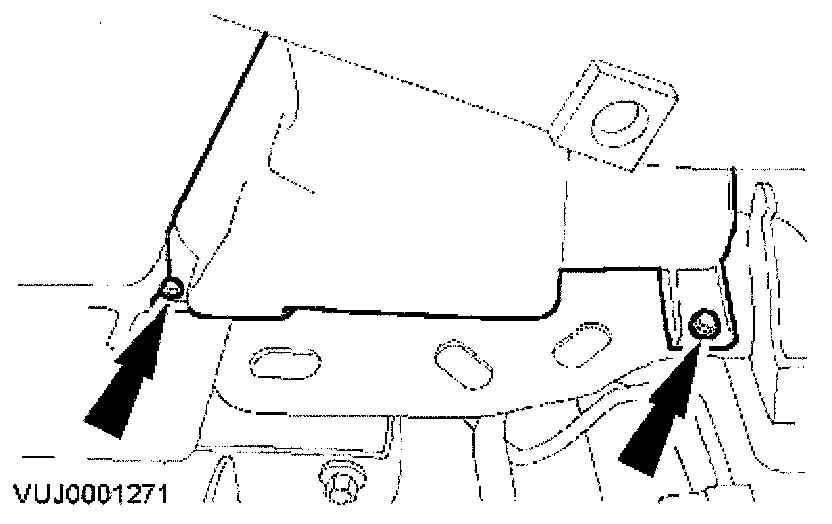

2. Remove the radiator splash shield.

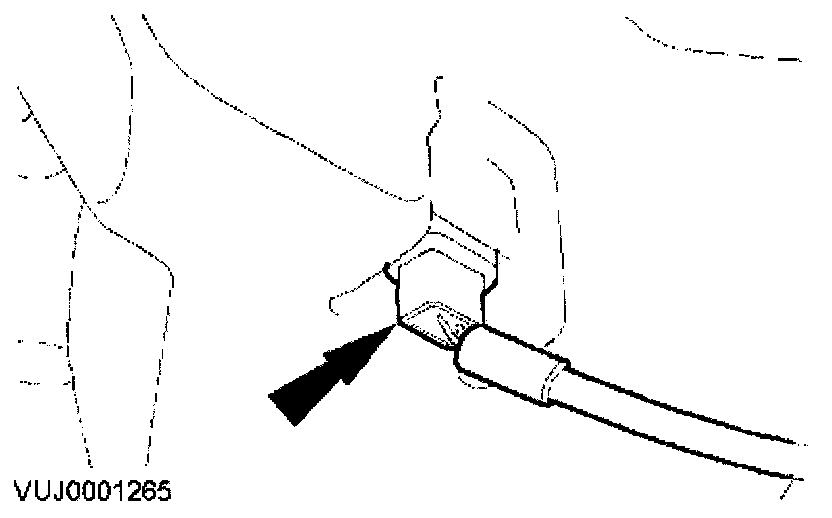

3. Detach the level sensor indicator electrical connector.





4. Disconnect the washer pump supply hose.





5. Disconnect the washer pump electrical connector.

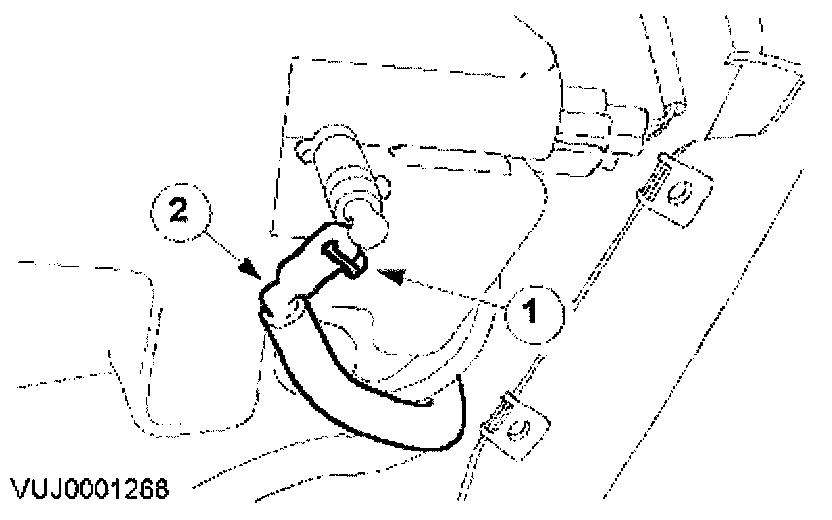

6. Disconnect the headlamp washer supply hose.
Remove the headlamp washer supply hose clip.
Disconnect the headlamp washer supply hose.





7. Disconnect the headlamp washer pump electrical connector.

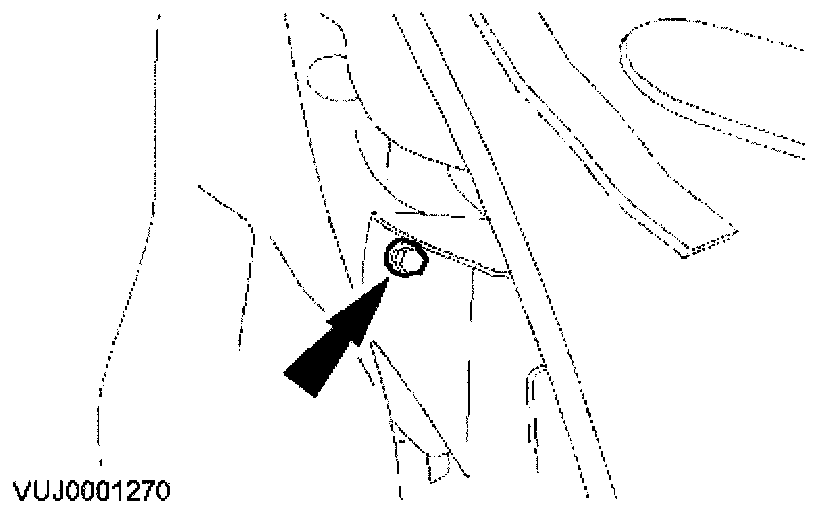

8. Remove the reservoir upper mounting bolt.





9. Remove the reservoir.


Installation
1. To install, reverse the removal procedure.
