Wiper Switch: Service and Repair

Multifunction Switch-Windscreen Wipers 86.65.41

Removal

1. Remove the steering wheel. For additional information, refer to Steering and Suspension.

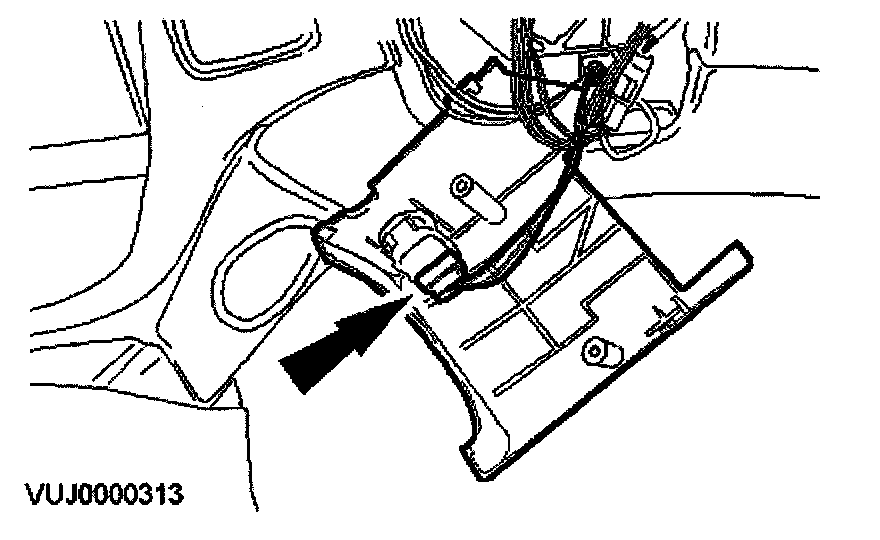

2. Detach the steering column lower shroud.





3. Remove the steering column lower shroud.





4. Remove the steering column upper shroud.

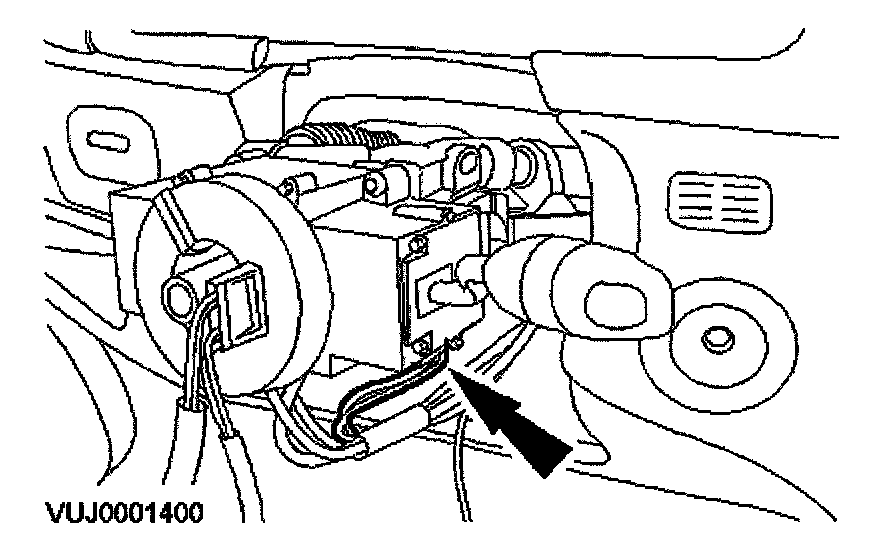

5. Disconnect the windshield wiper switch electrical connector.





6. Remove the windshield wiper switch.

Installation

1. To install, reverse the removal procedure.
