System Diagram




Connector Pins Identification

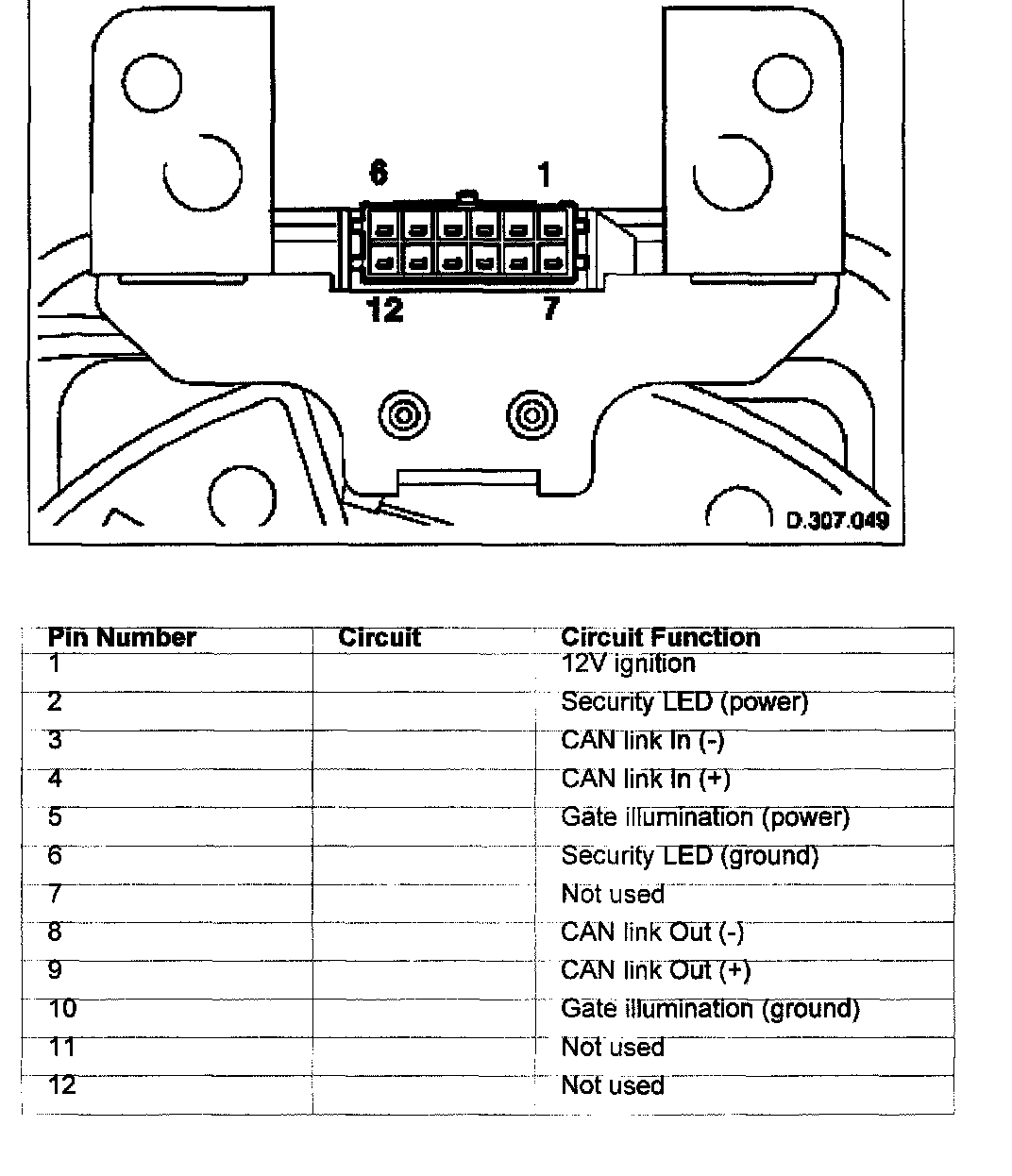

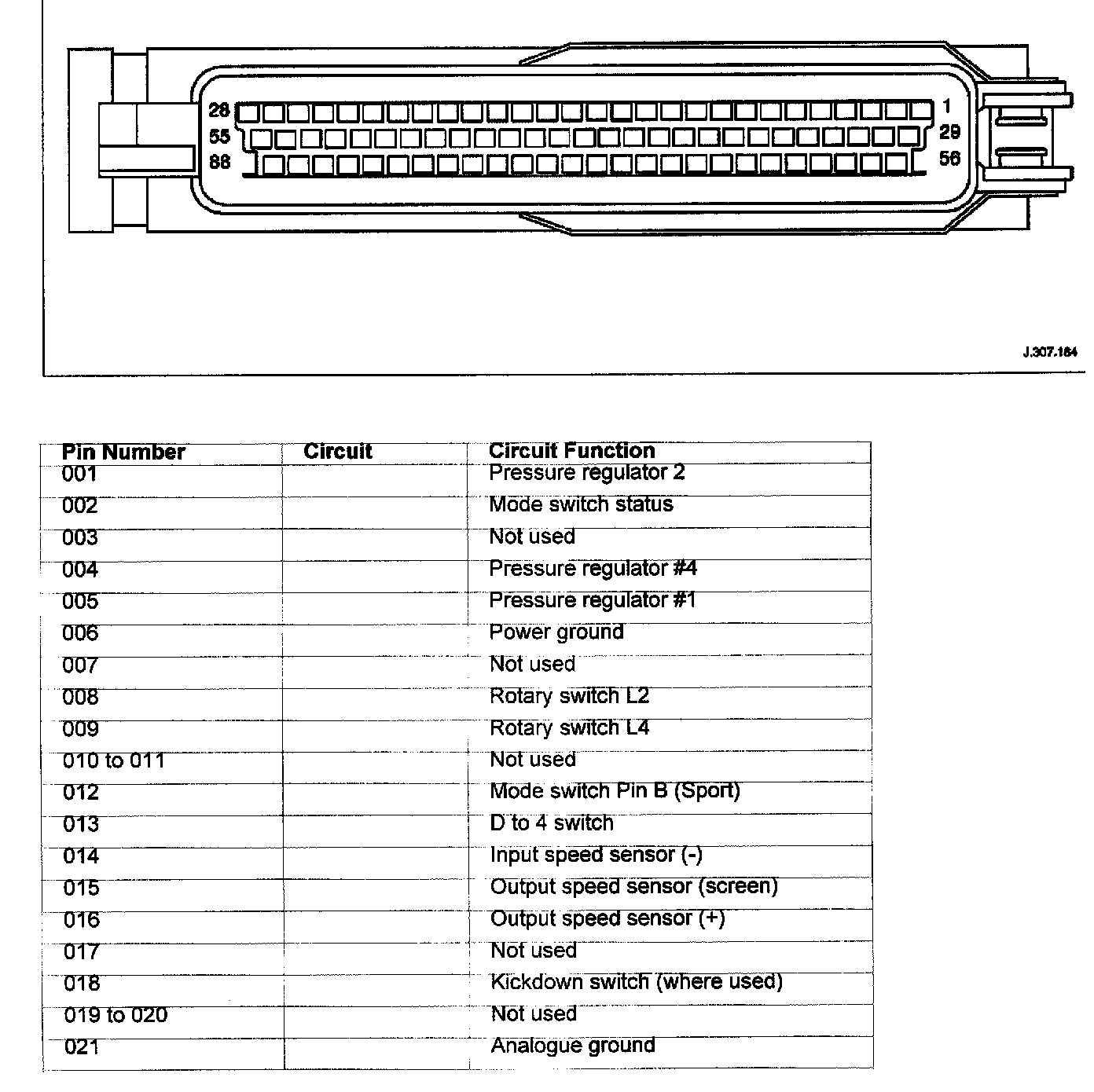

Connector Pin Identity Chart for EM007





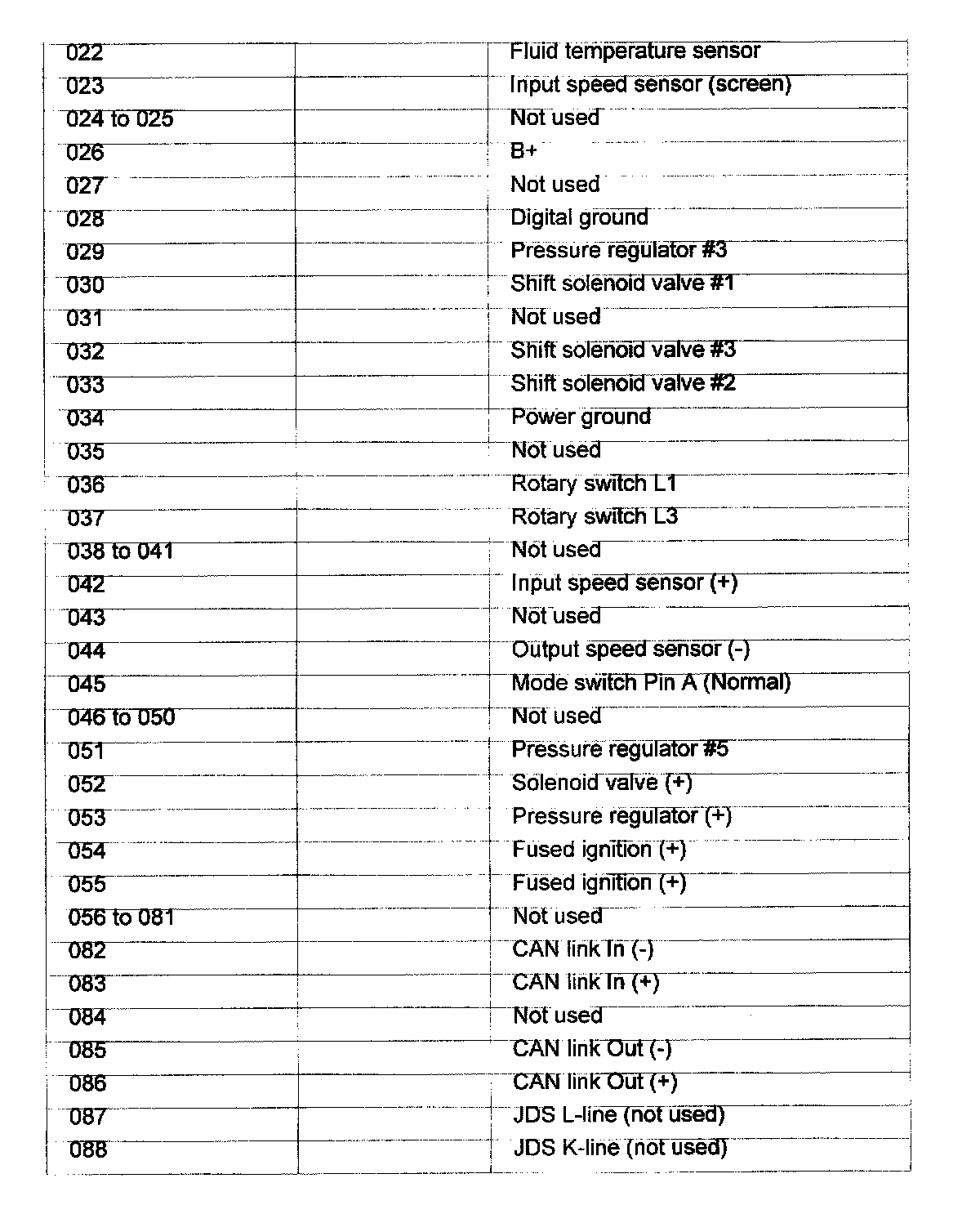

Connector Pin Identity Chart for CC014

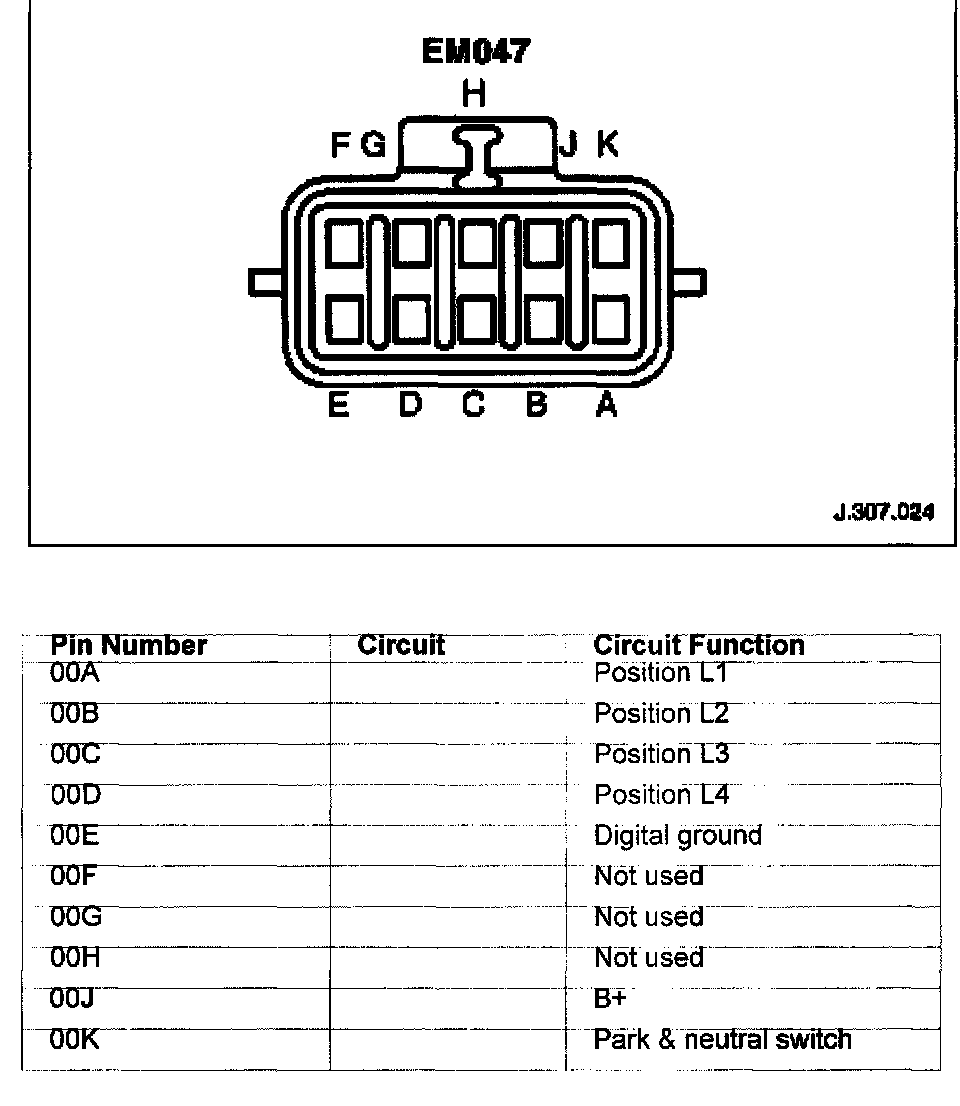

Connector Pin Identity Chart for EM047

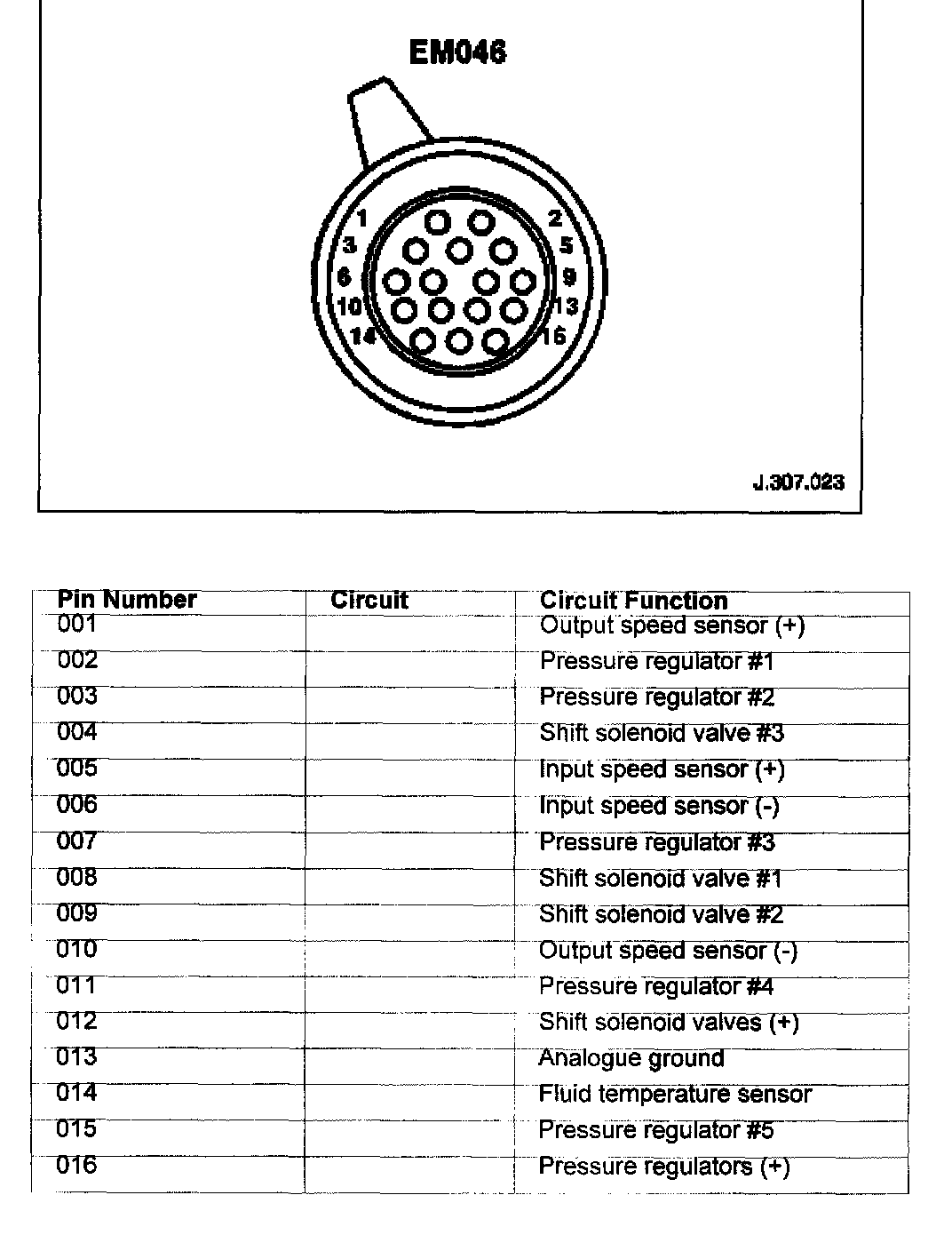

Connector Pin Identity Chart for EM046
