Fig 04.3

Variant: AJ27 4.0 and 3.2 N/A Vehicles

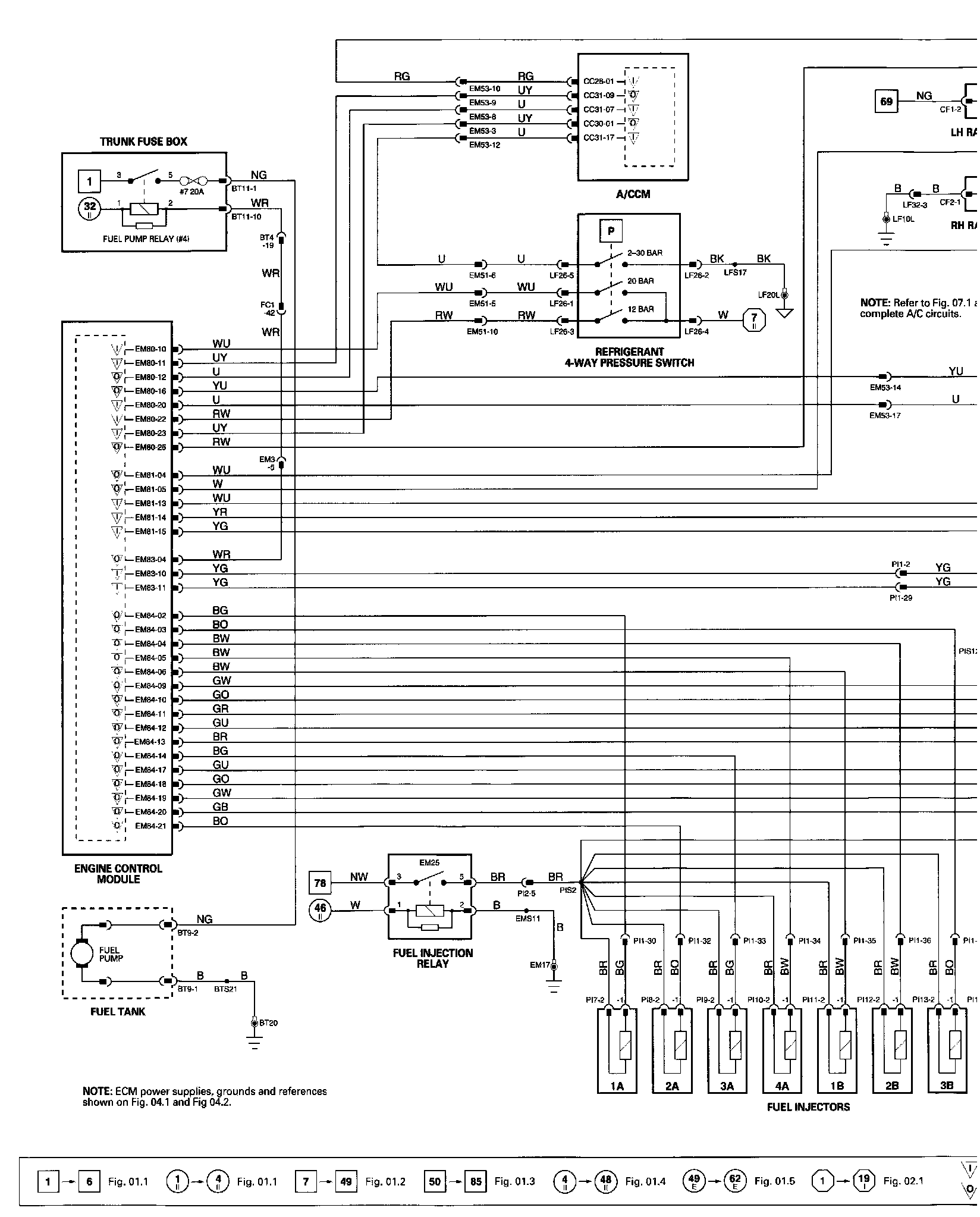

�e�Wiring Diagram:

Components:

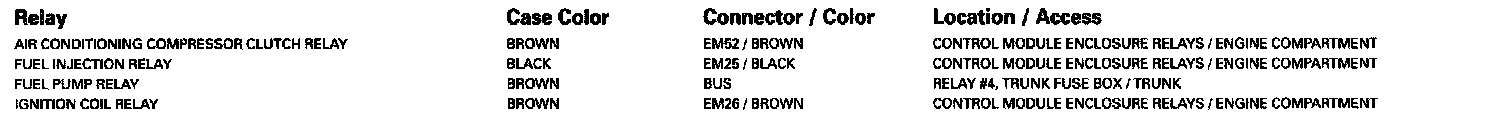

Relays:

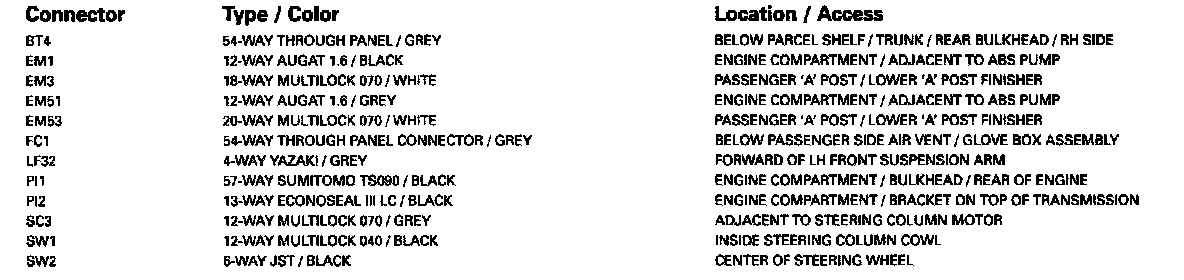

Harness-To-Harness Connectors:

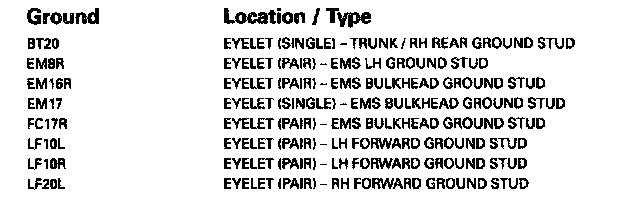

Grounds:

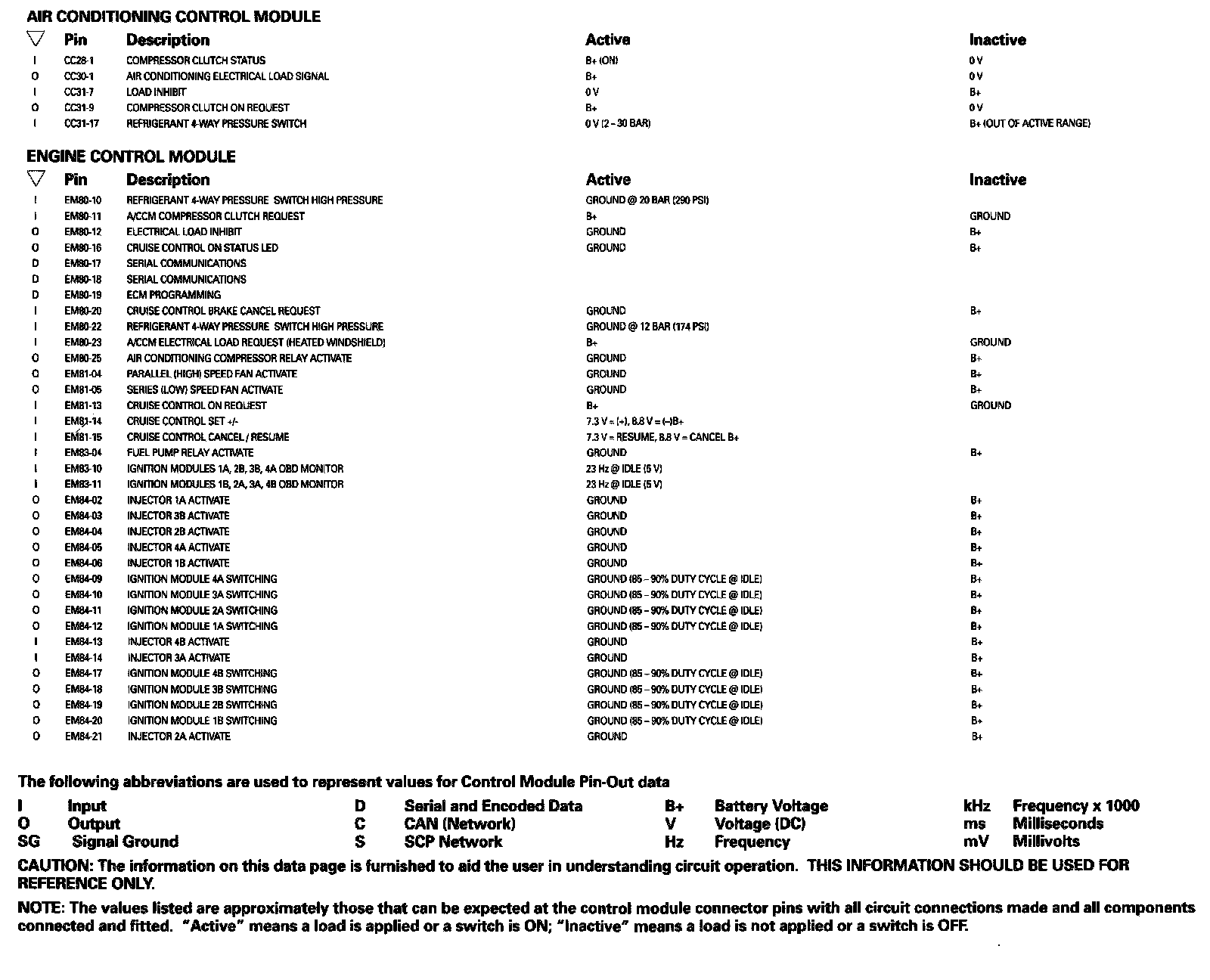

Control Module Pin Out Information:

Refer to Vehicle / Locations for detailed information and illustrations regarding the location and identification of harnesses, relays, grounds and control modules. Locations

For detailed information and illustrations regarding the location and identification of control module pins, refer to Vehicle / Diagrams / Connector Views. Connector Views
