Fig 21.2

Variant: AJ27 SC Vehicles

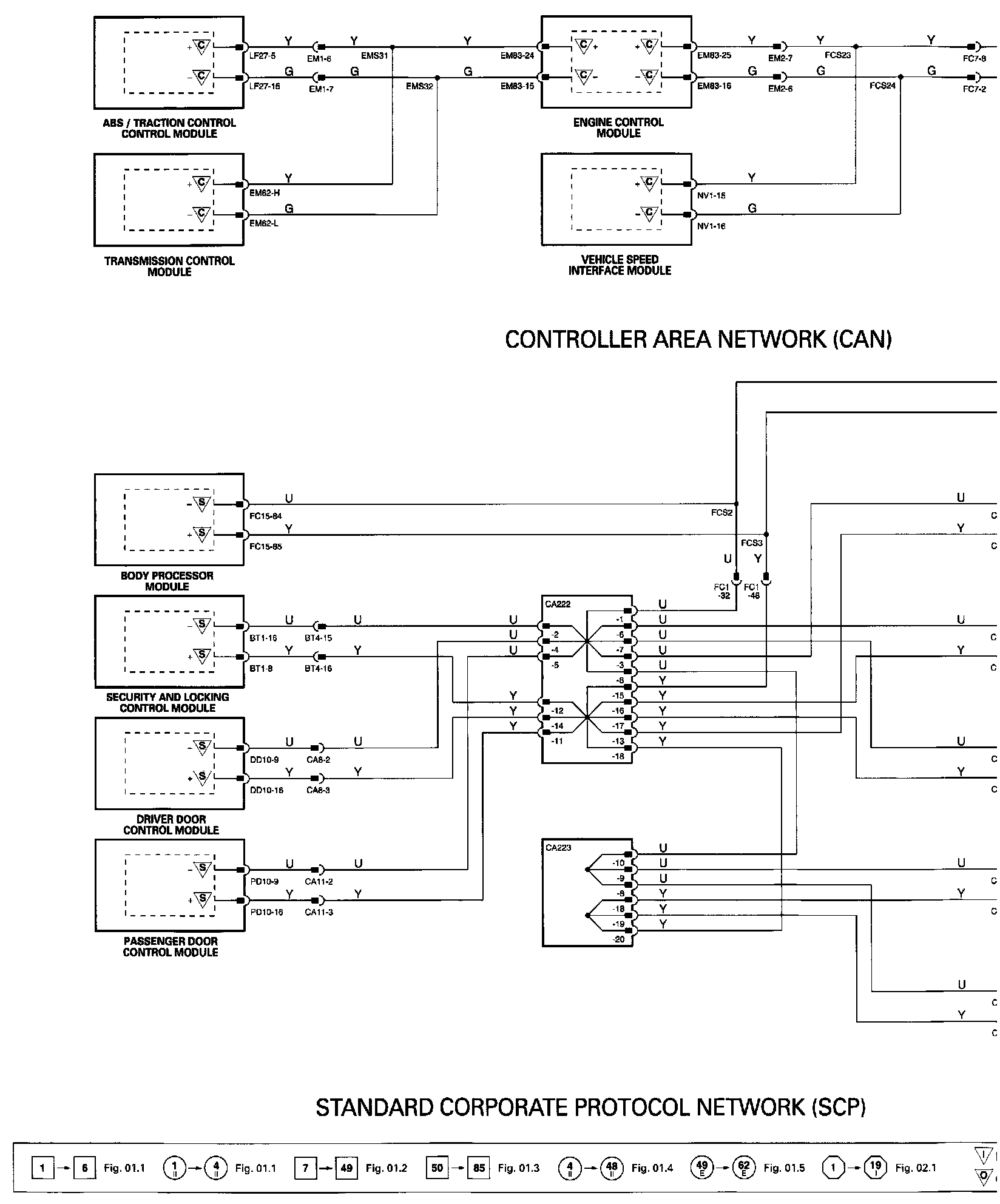

�U�Wiring Diagram:

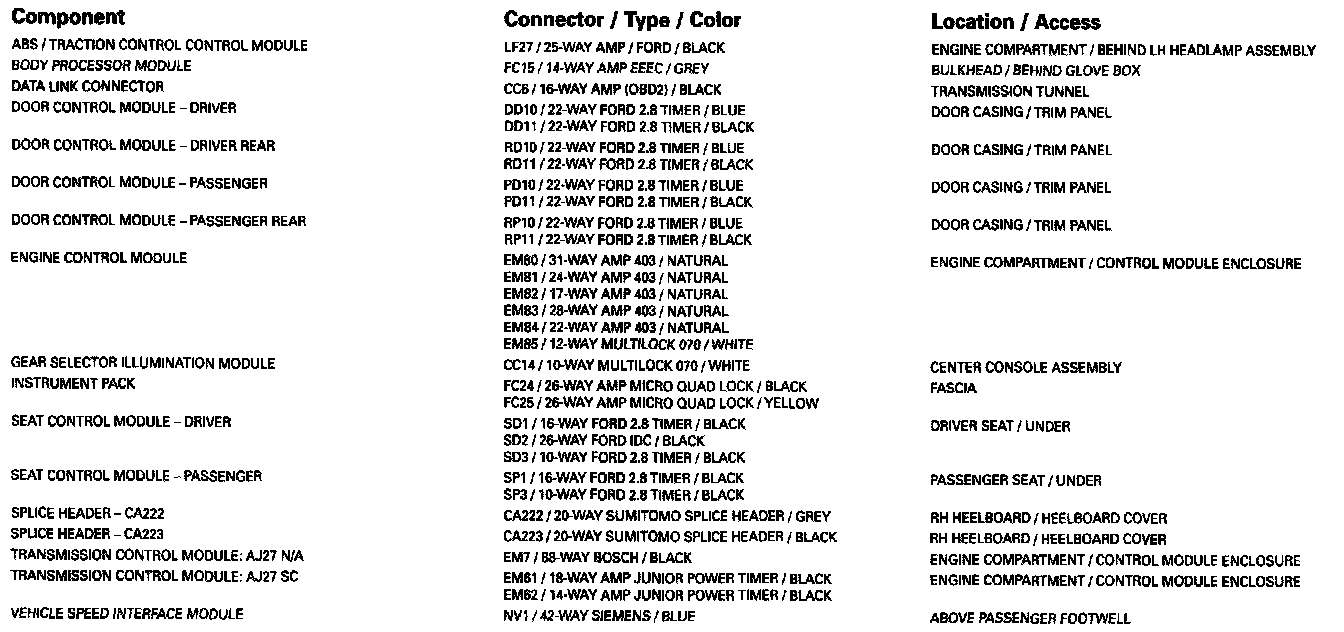

Components:

Harness-To-Harness Connectors:

Grounds:

NOTE: Refer to the Diagram Information and Instructions for CAN and SCP Network Messages. Diagram Information and Instructions

Refer to Vehicle / Locations for detailed information and illustrations regarding the location and identification of harnesses, relays, grounds and control modules. Locations

For detailed information and illustrations regarding the location and identification of control module pins, refer to Vehicle / Diagrams / Connector Views. Connector Views
