Fig 21.3

Variant: All Vehicles

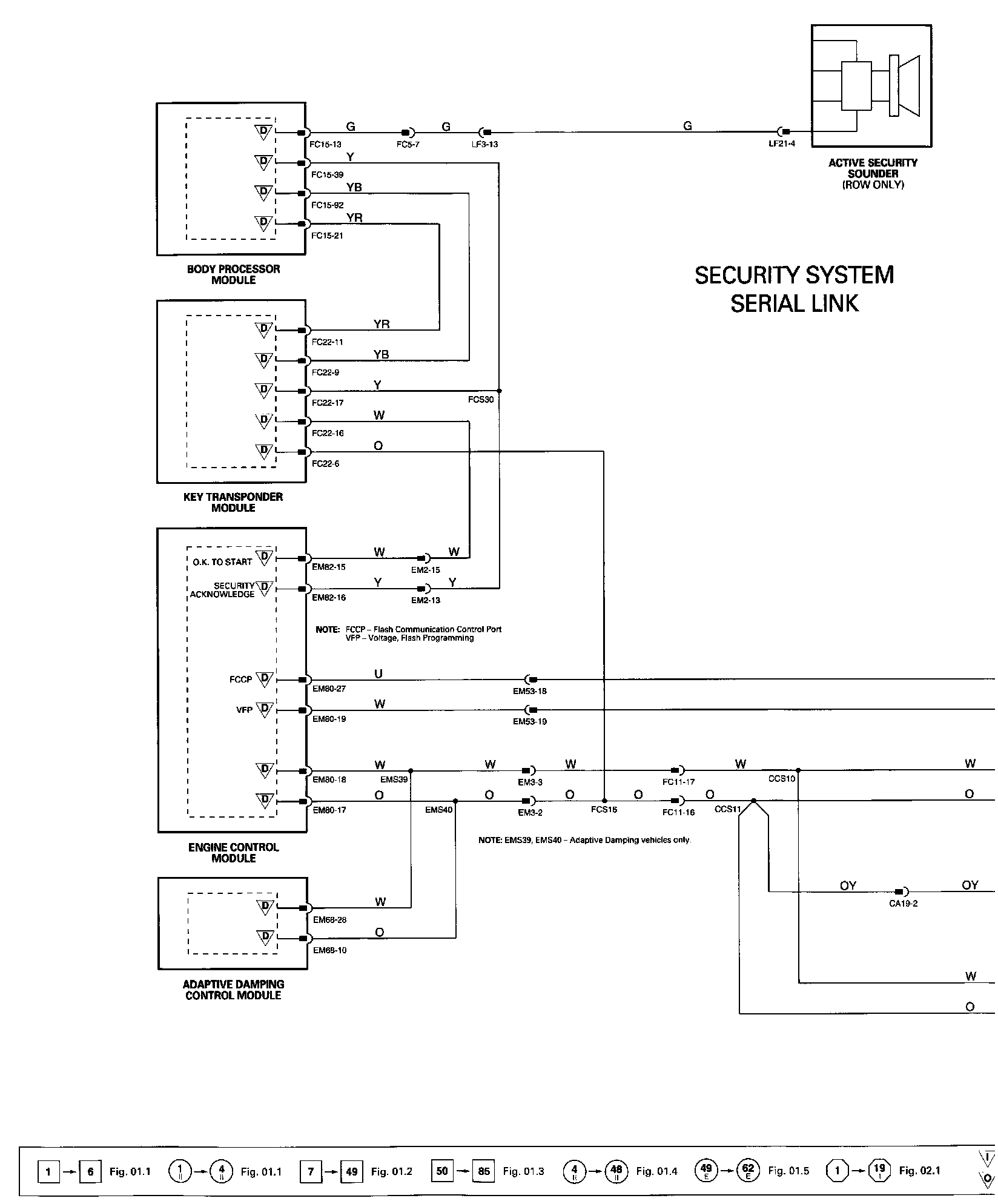

���Wiring Diagram:

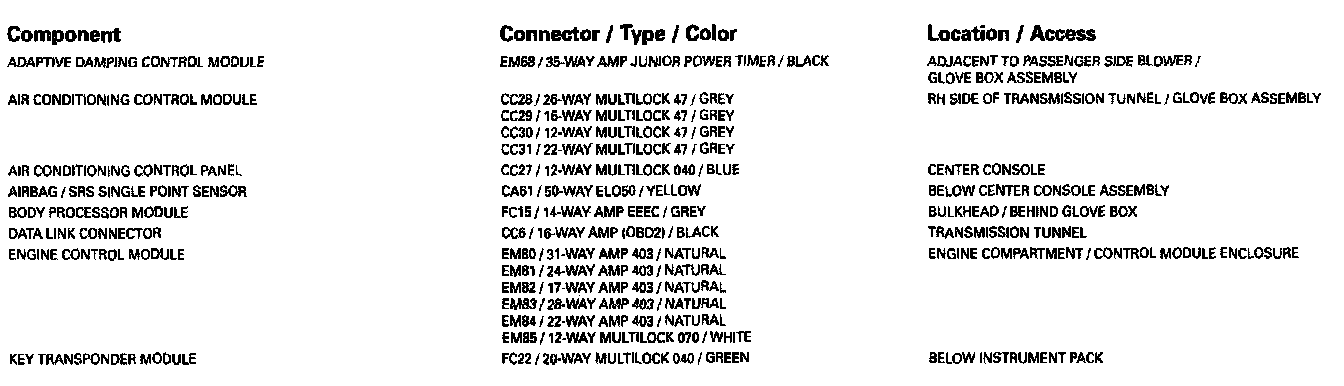

Components:

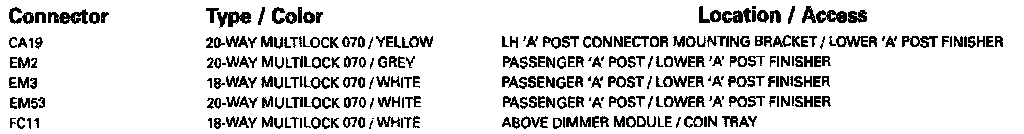

Harness-To-Harness Connectors:

Grounds:

Refer to Vehicle / Locations for detailed information and illustrations regarding the location and identification of harnesses, relays, grounds and control modules. Locations

For detailed information and illustrations regarding the location and identification of control module pins, refer to Vehicle / Diagrams / Connector Views. Connector Views
