Variable Valve Timing Solenoid

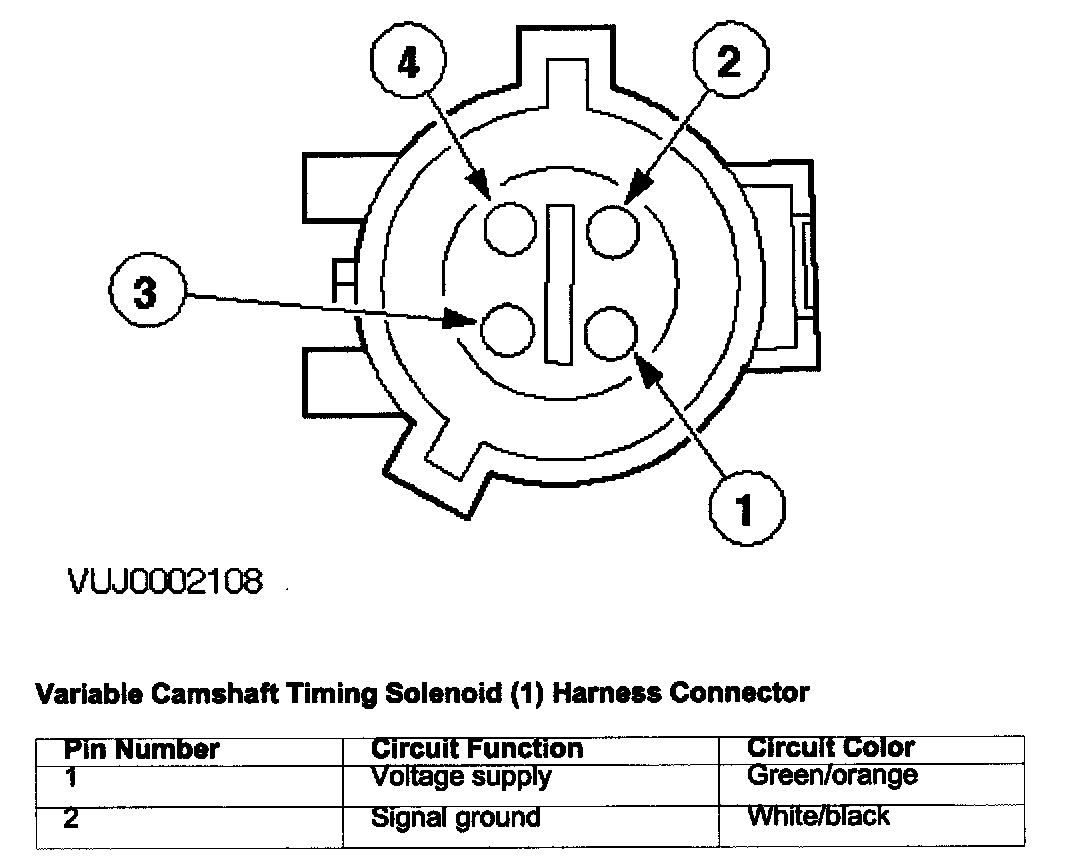

Variable Camshaft Timing Solenoid 1 Harness Connector:



Variable Camshaft Timing Solenoid 2 Harness Connector:
