Ignition System: Diagrams

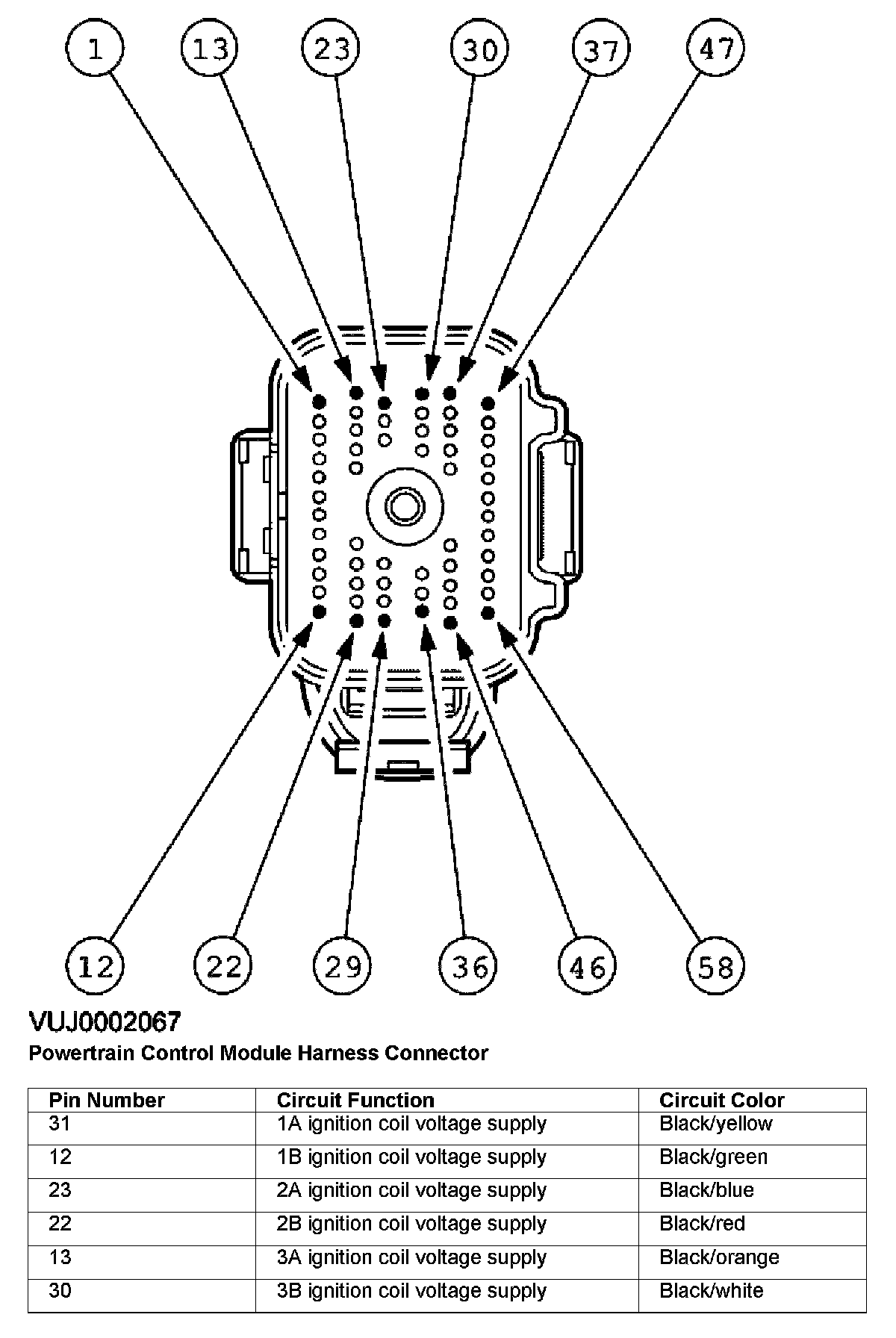

Powertrain Control Module Harness Connector:

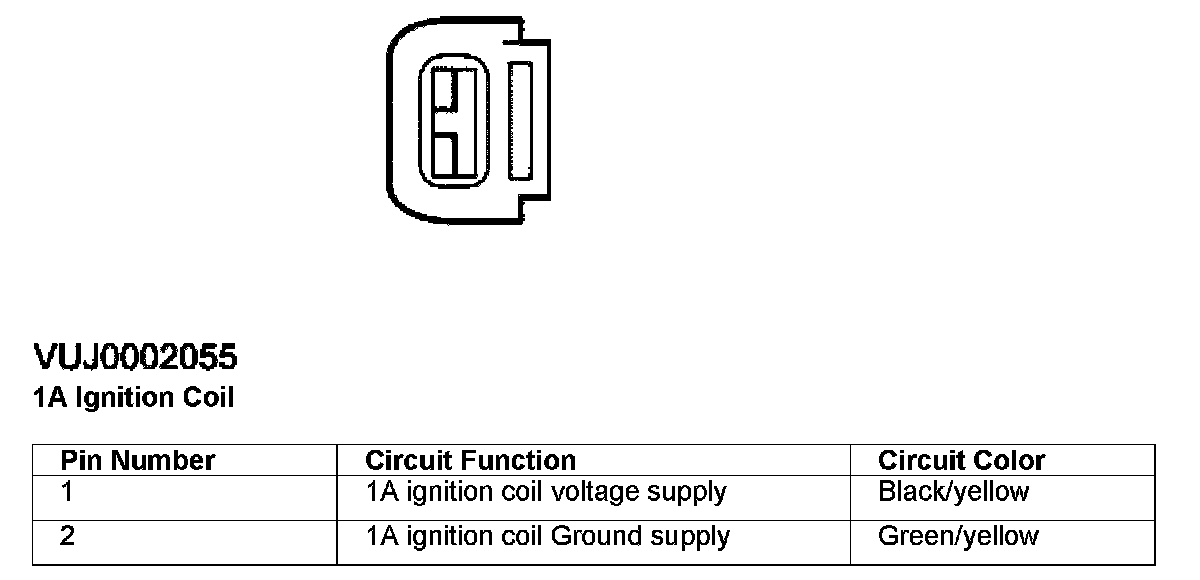

1A Ignition Coil:

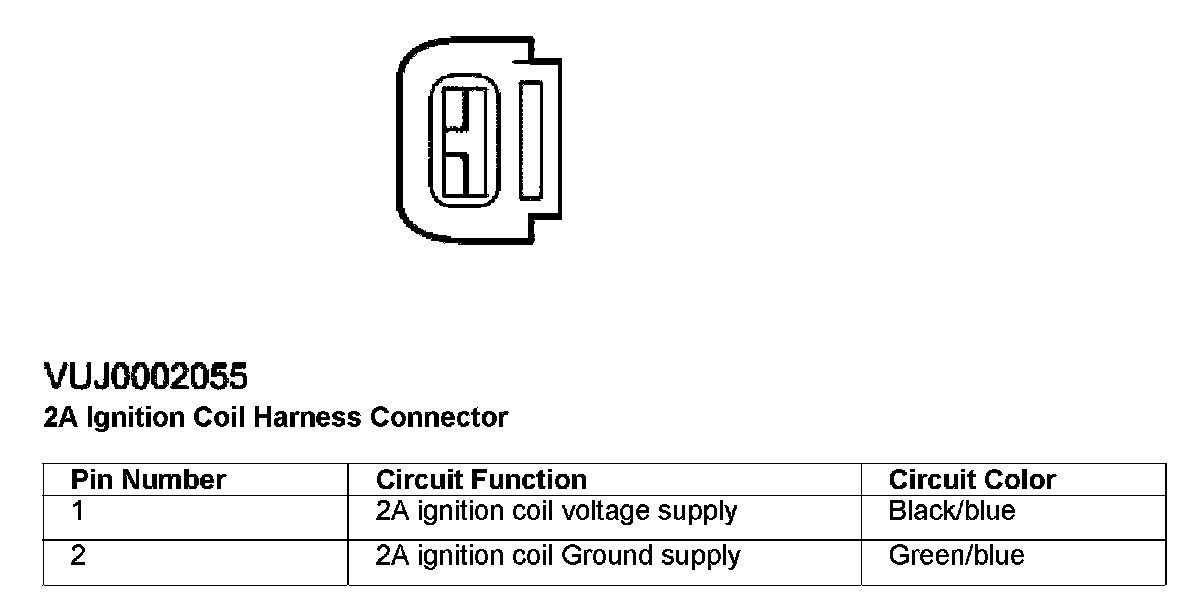

2A Ignition Coil Harness Connector:

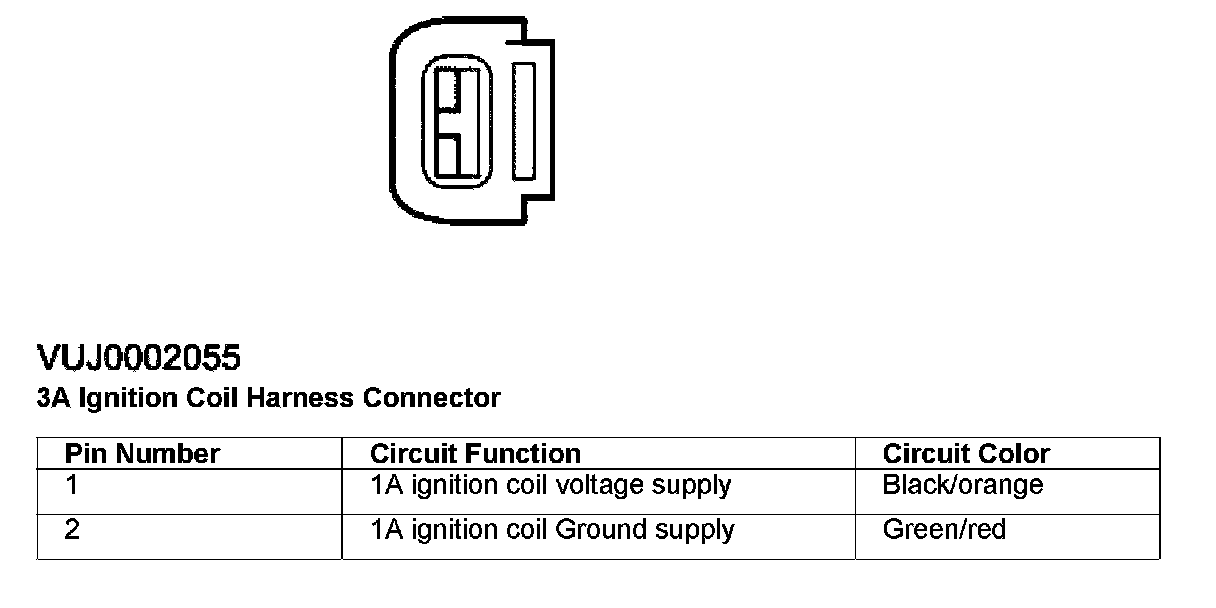

3A Ignition Coil Harness Connector:

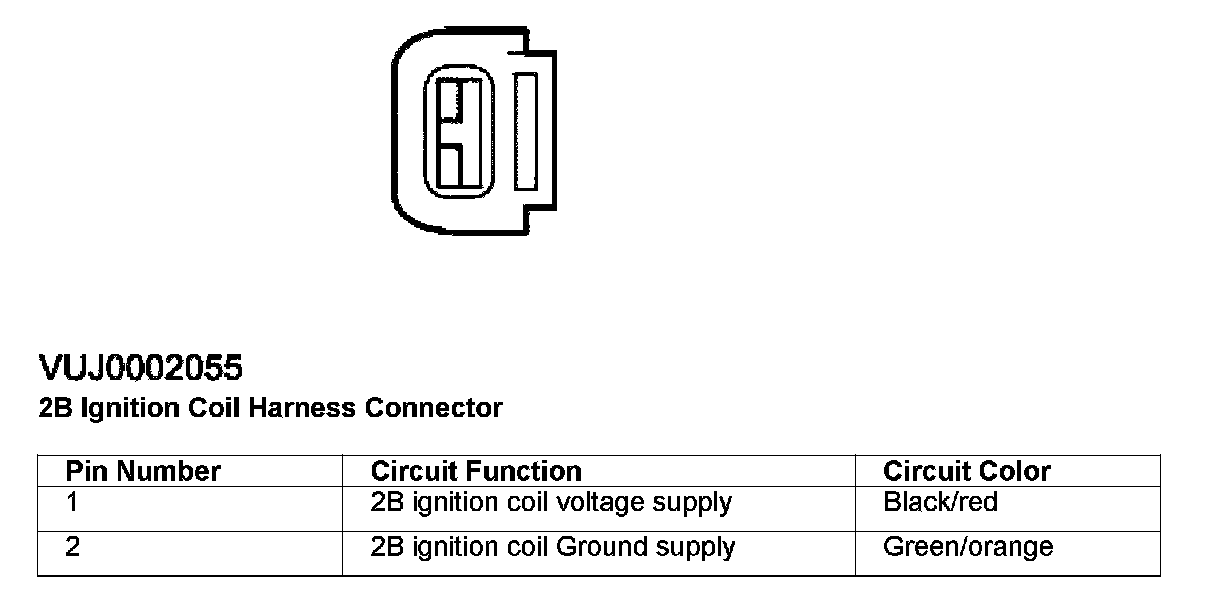

1B Ignition Coil Harness Connector:

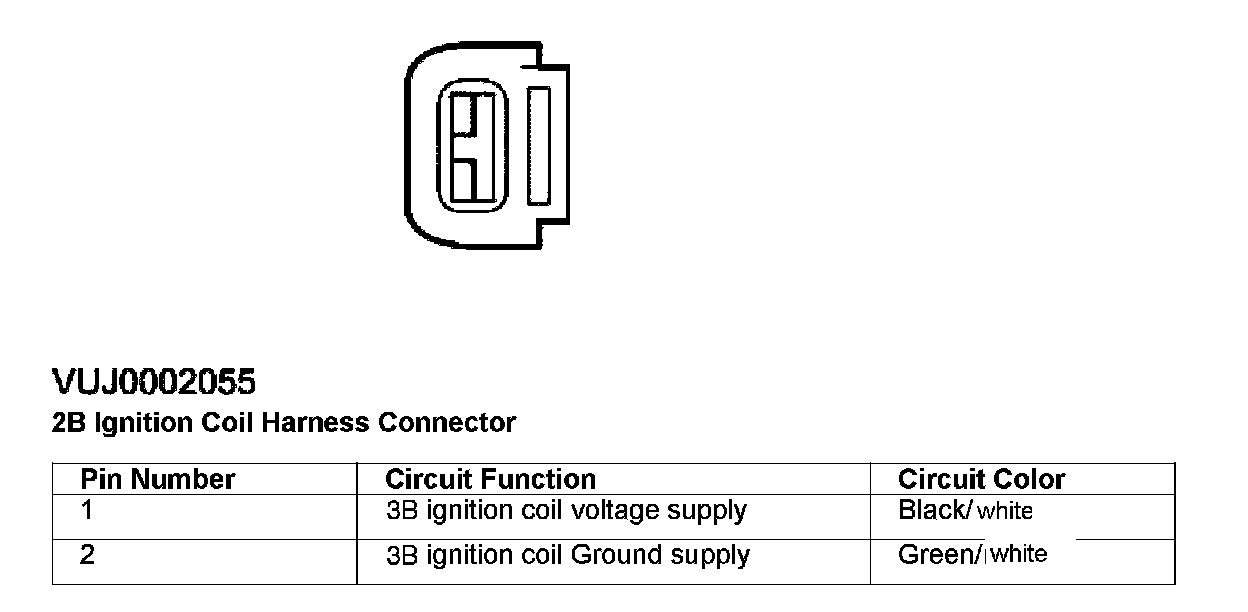

2B Ignition Coil Harness Connector:

2B Ignition Coil Harness Connector:
