Antenna: Description and Operation

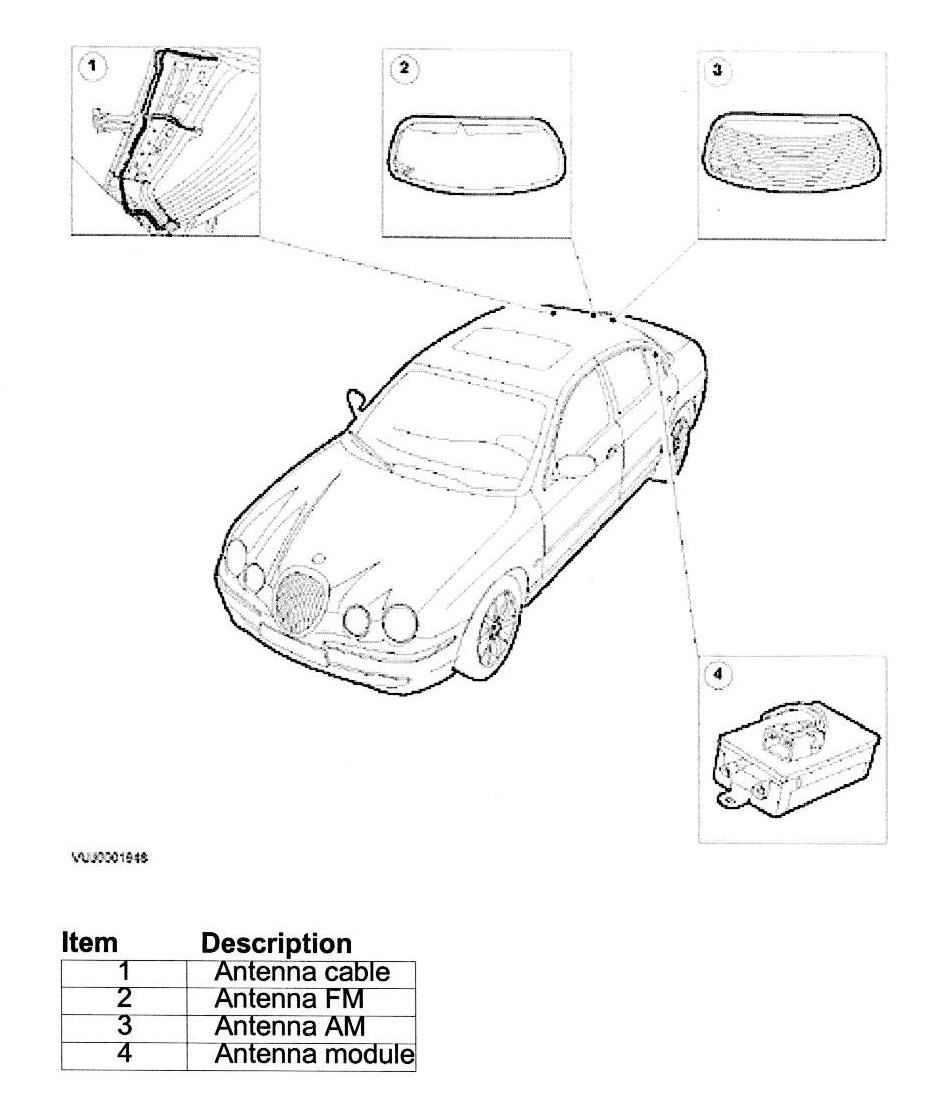

Locations:

The antenna cable is split into two sections:
- Audio unit to antenna module.
- Antenna module to the antenna located in the rear windshield glass.

The audio unit to antenna module cable is located in the body wiring harness. The antenna module to antenna cable in located along the C-pillar and also routed across the roof panel.

There are two antennas fitted to the Jaguar S-series an AM antenna and an FM antenna both are located in the rear windshield glass. The AM antenna also incorporates the heated rear windshield element.

The antenna module controls both antennas and the heated rear windshield.
